Welded Wire Panel
358 mesh, 3" × 0.5" aperture, 6–10.5ga; 8ga standard.
SECURITY FENCING · AVBD 1000 SERIES
AVBD 1000 SeriesPRODUCT DATA

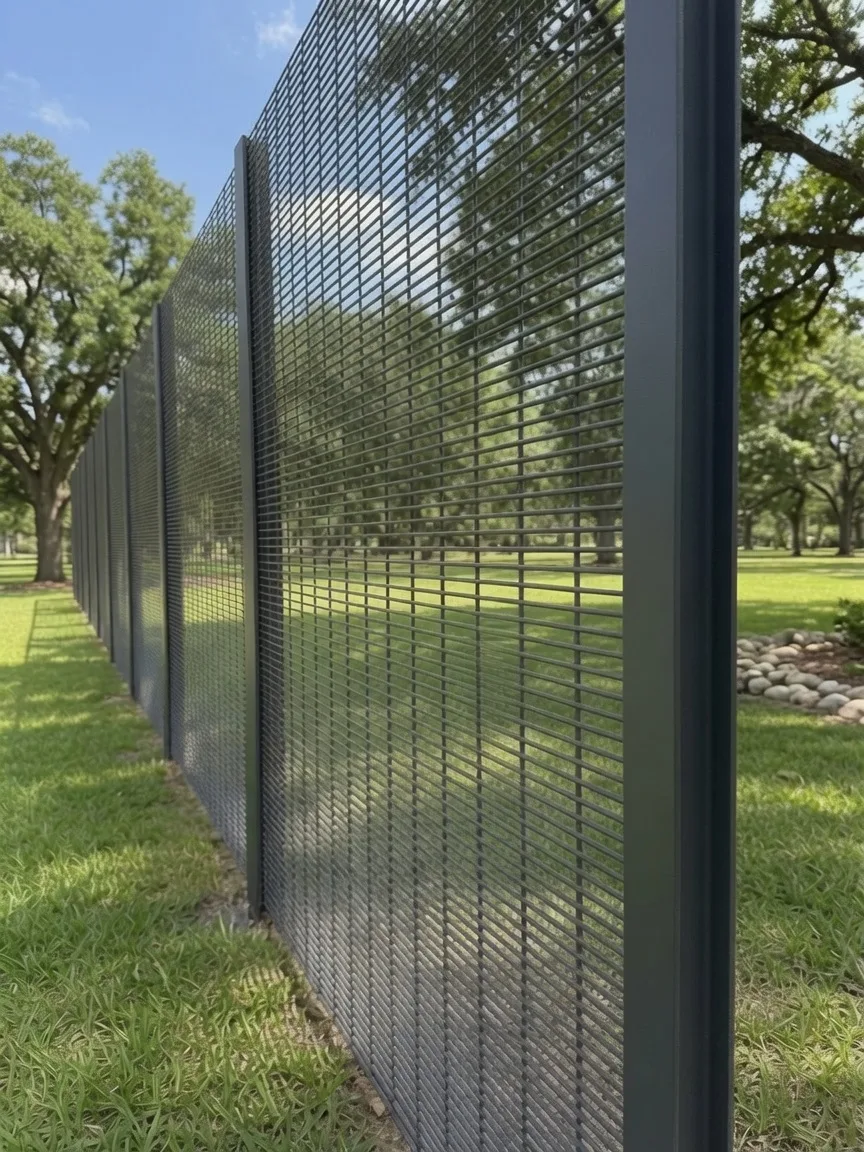

SecureMesh™
HIGH-SECURITY WELDED WIRE MESH SYSTEM
358 anti-climb, anti-cut mesh engineered for critical infrastructure, correctional and federal perimeters — six configurations, one proven platform, with optional integrated M30 / M50 anti-ram protection.
20-YEAR WARRANTYASTM F2781 · F1233MADE IN THE USA
THE CASE FOR WELDED MESH
THE PERIMETER, RECONSIDERED.

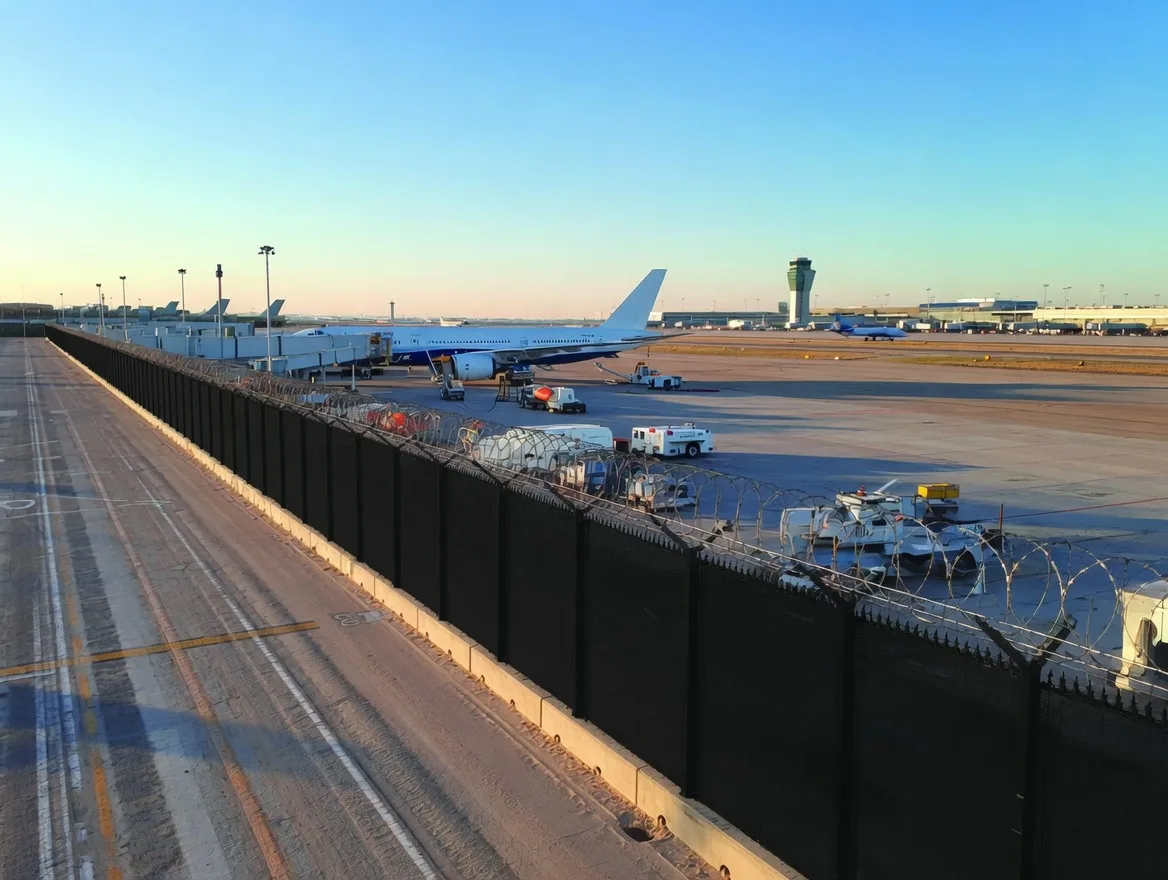

SecureMesh is built on 358 mesh: a 3″ × 0.5″ aperture tight enough to deny finger- and toe-holds, welded at every intersection. Standard wire is 8ga with 6ga–10.5ga options.
The platform supports six configurations: Base, Integrated PVB, Delay, Correctional, Shutter and Temporary. Integrated PVB combines SecureMesh with BSP's crash-rated passive cable barrier at M30/M50, P1/P2.

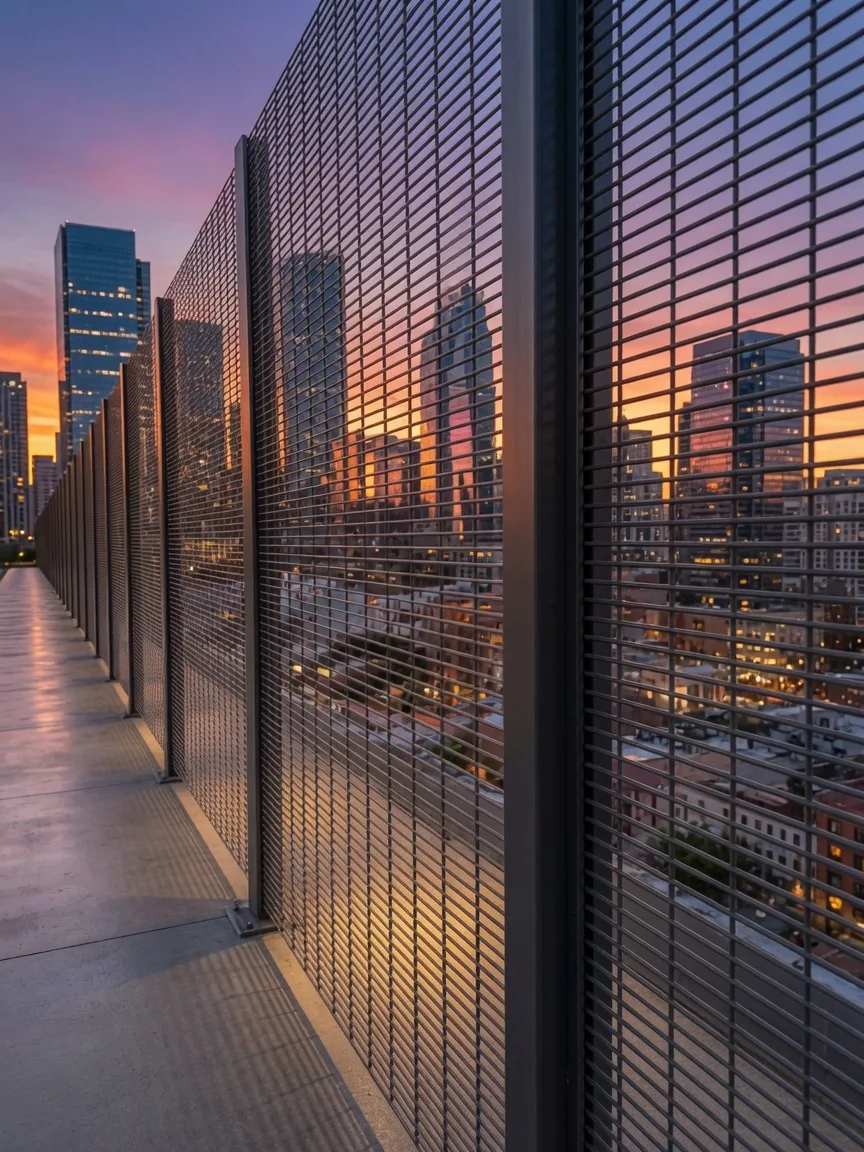

THE 358 STANDARD
3″ × 0.5″ aperture, 8ga wire.
Available 6ga–10.5ga; 8ga is the standard 358 configuration.

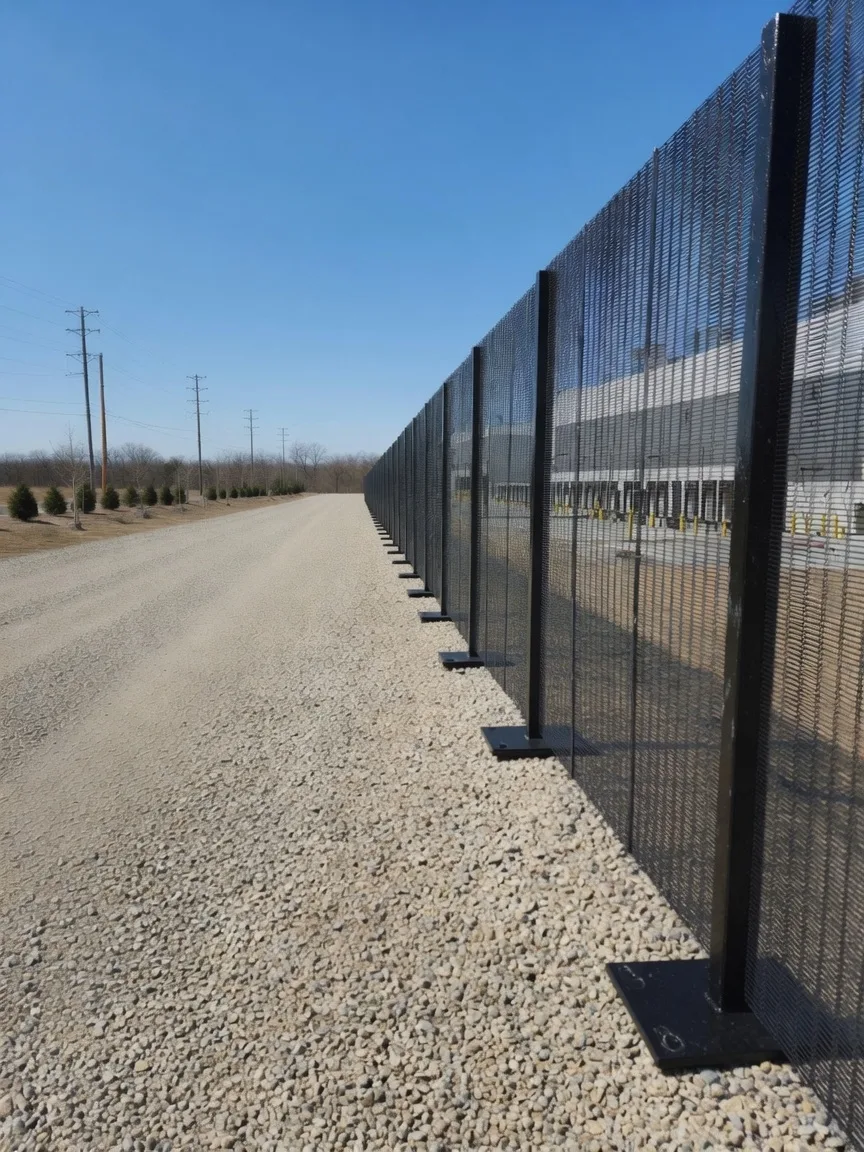

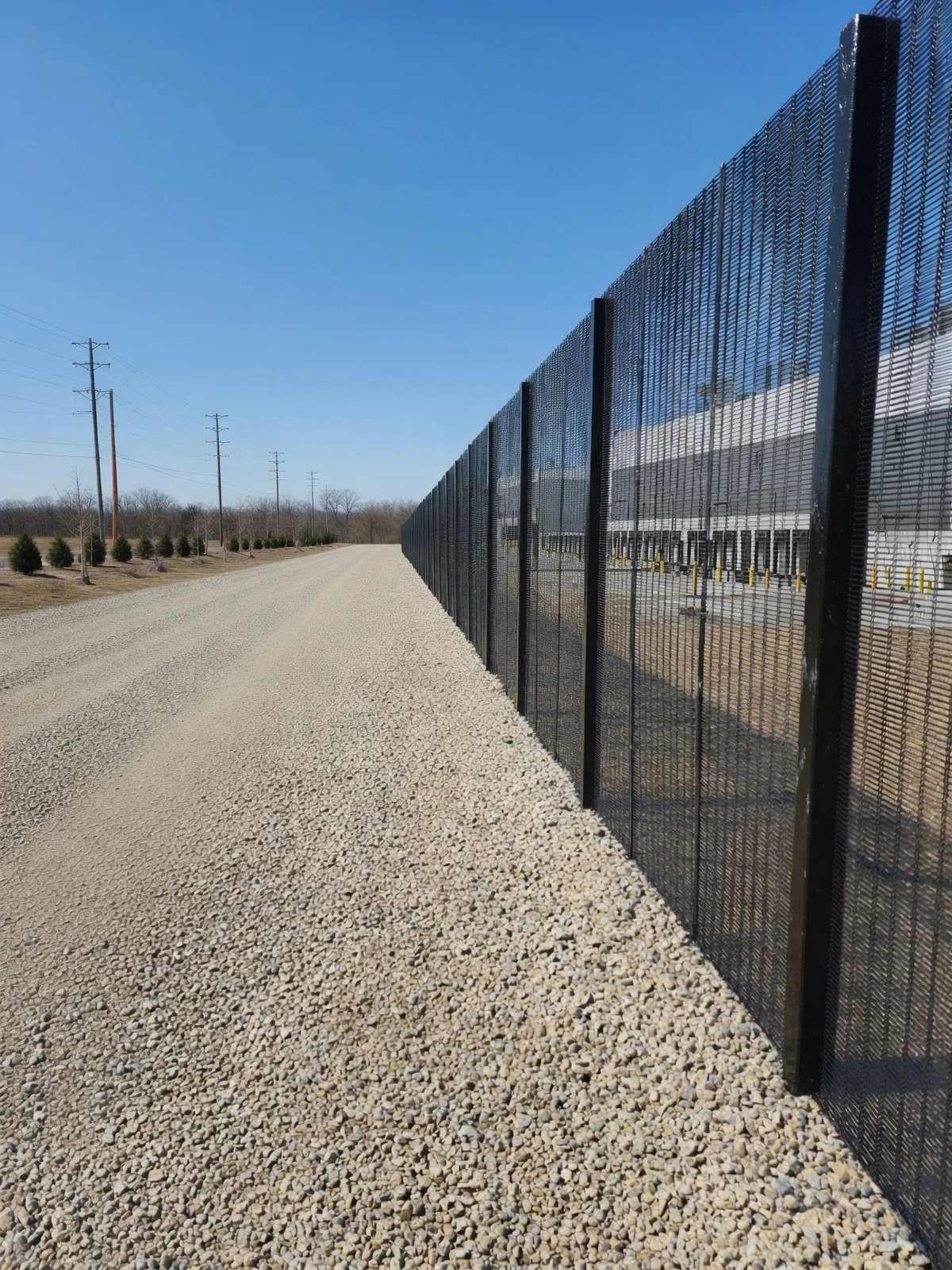

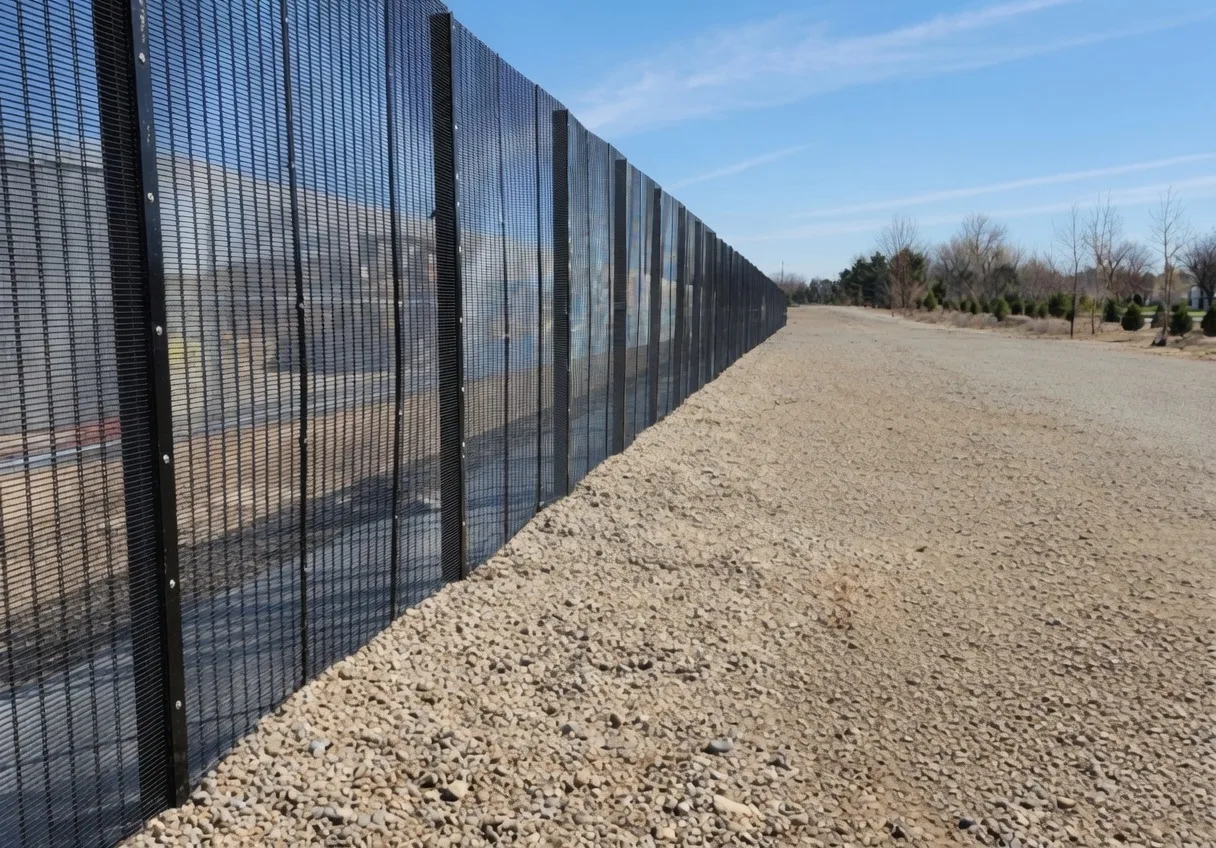

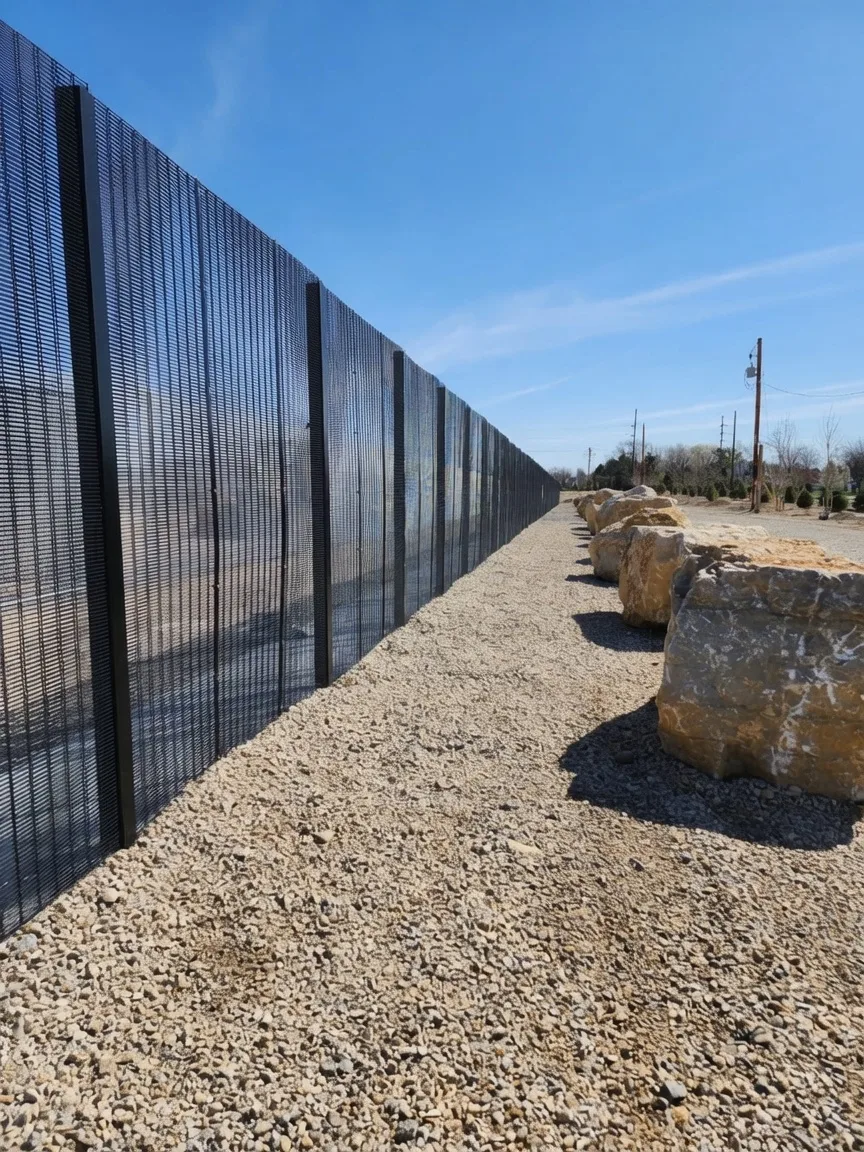

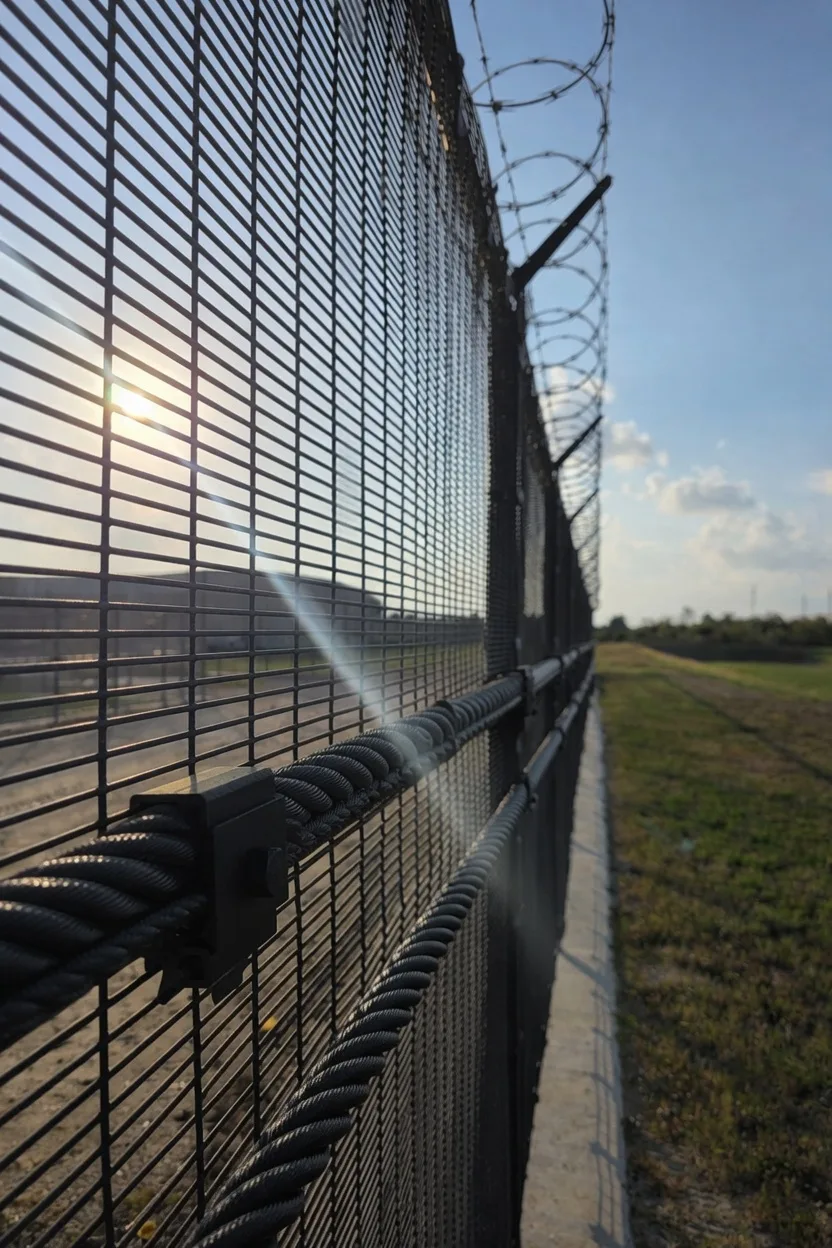

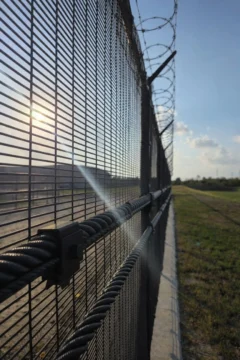

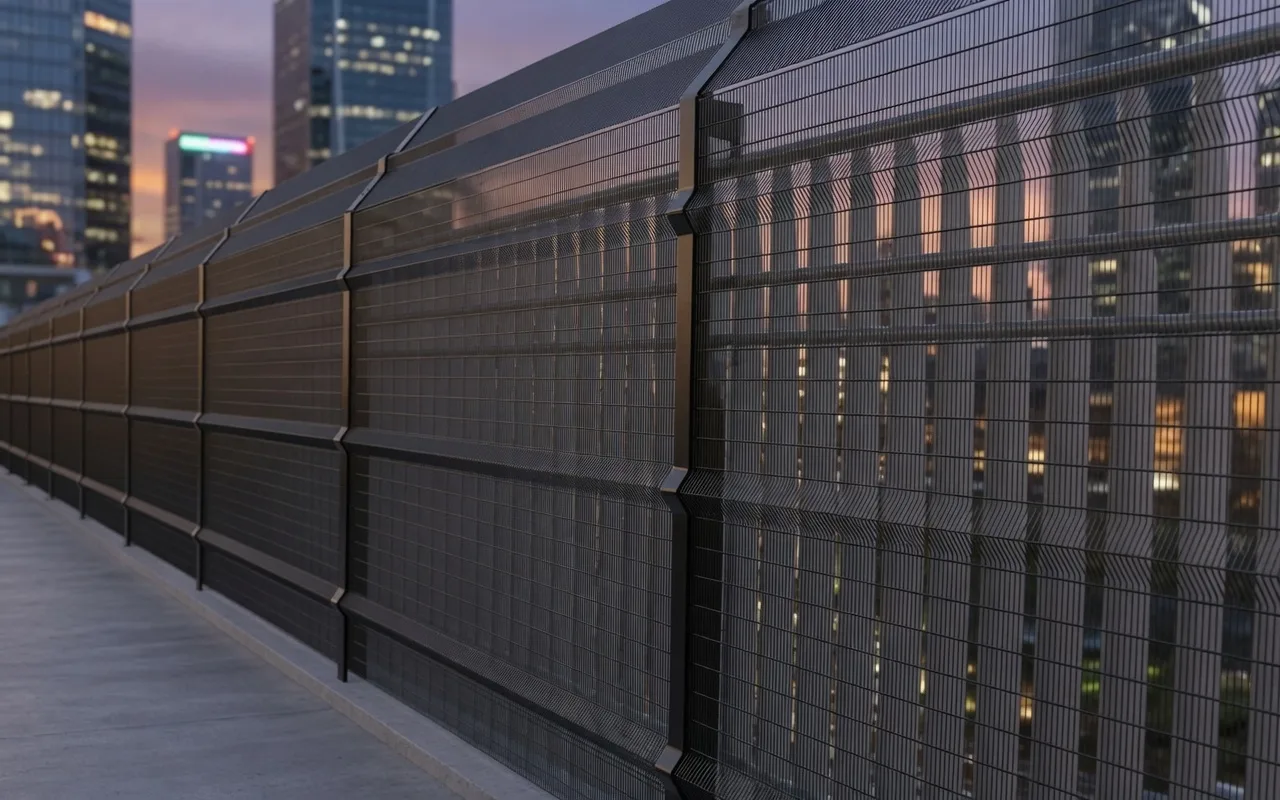

SecureMesh with integrated PVB - anti-climb mesh and anti-ram protection in a single line.
20
YEAR DURABILITY & WEATHERING WARRANTY
20′
MAXIMUM SYSTEM HEIGHT
180
MPH WIND LOAD ENGINEERED (HVHZ)
6
CONFIGURATIONS, ONE PLATFORM

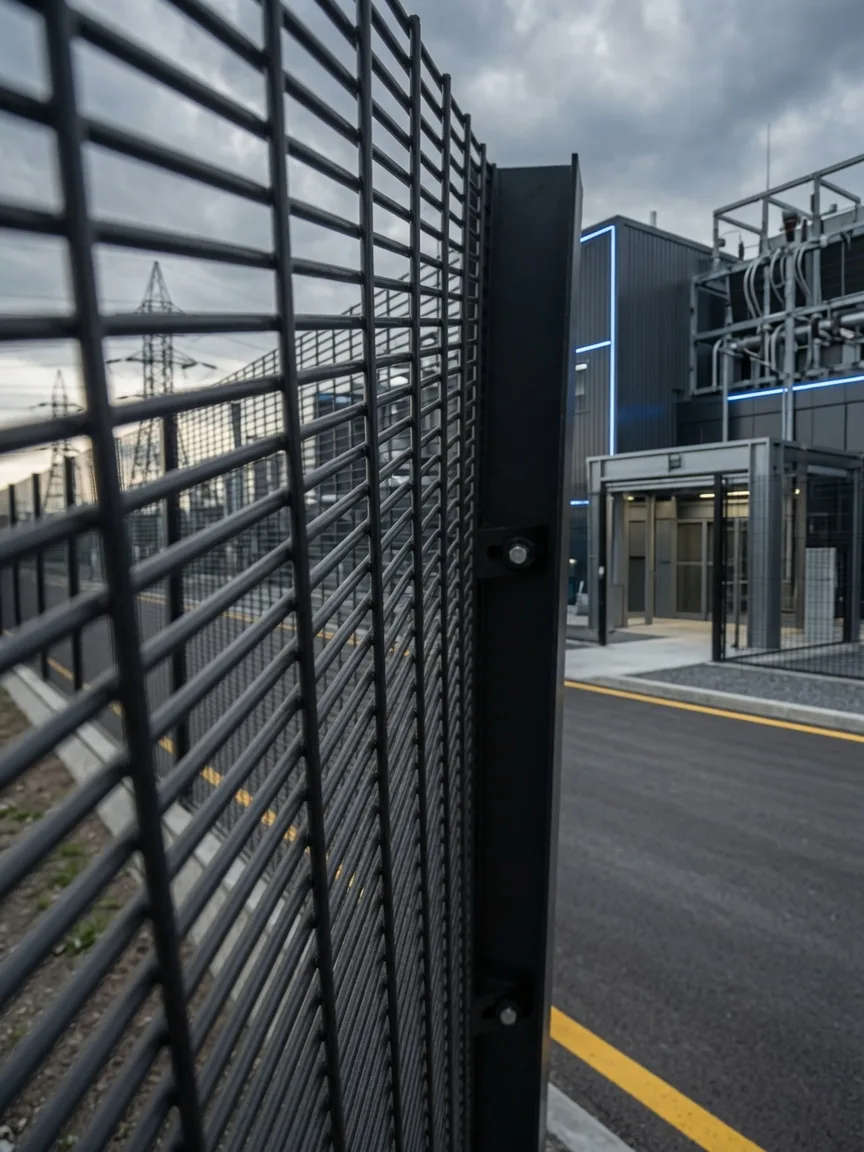

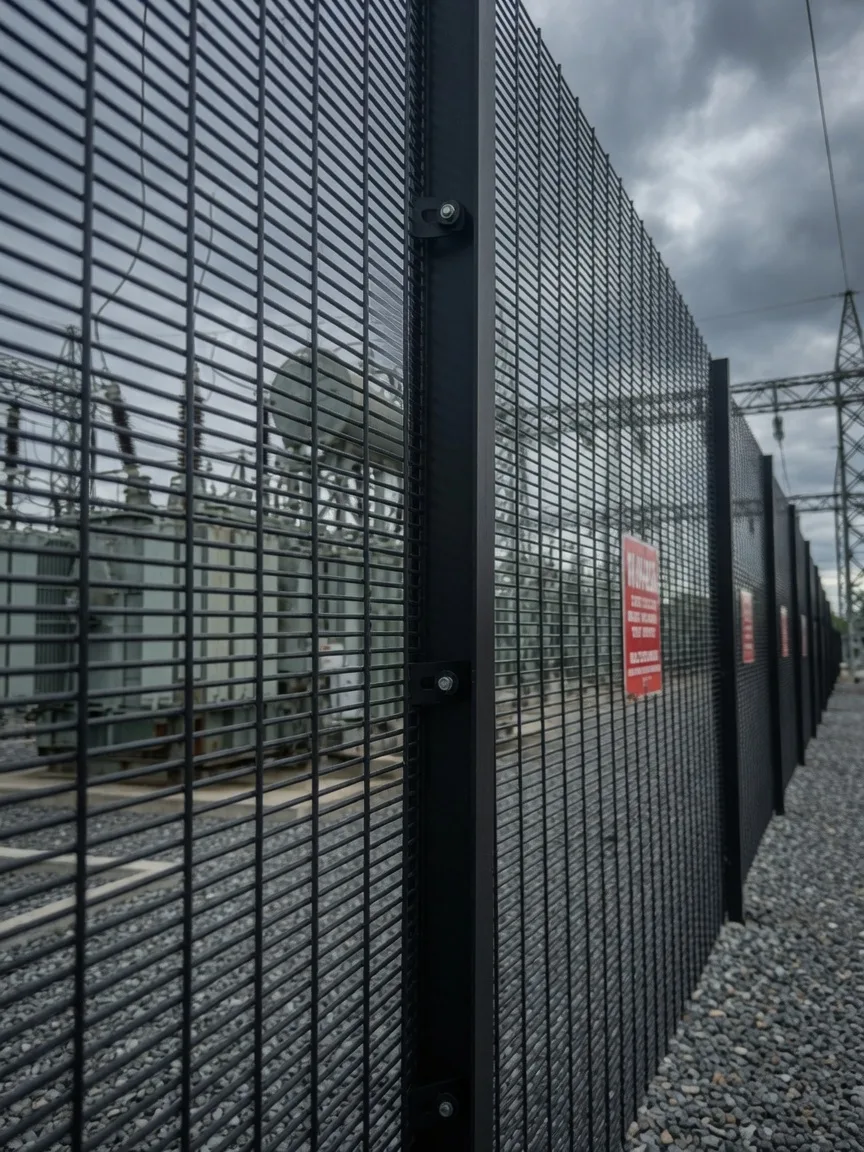

SYSTEM ANATOMY
SIMPLE DESIGN. ONE HARDENED LINE.

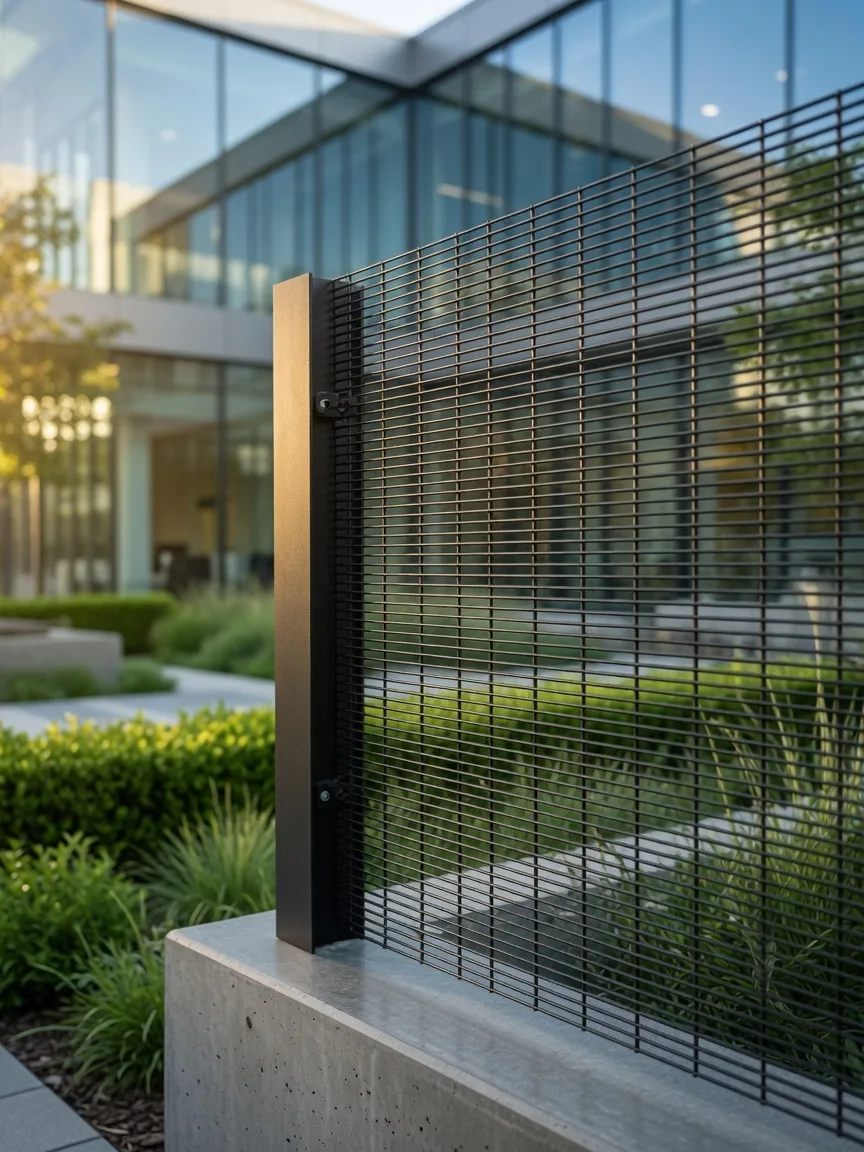

H Post
Rolled H-section at 97½" O.C.; embedded.
Clamp Block
Captures the panel against the post face.
Level Washer
Seats clamp and takes up tolerance.
Bolt & Nut
5/16" × 3" mushroom-head security bolt; internal only.
Rail
Optional horizontal rail adds rigidity and span.

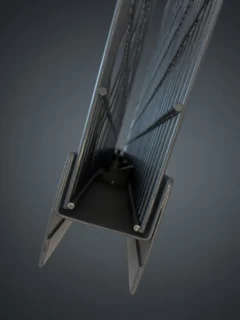

Spike Topper

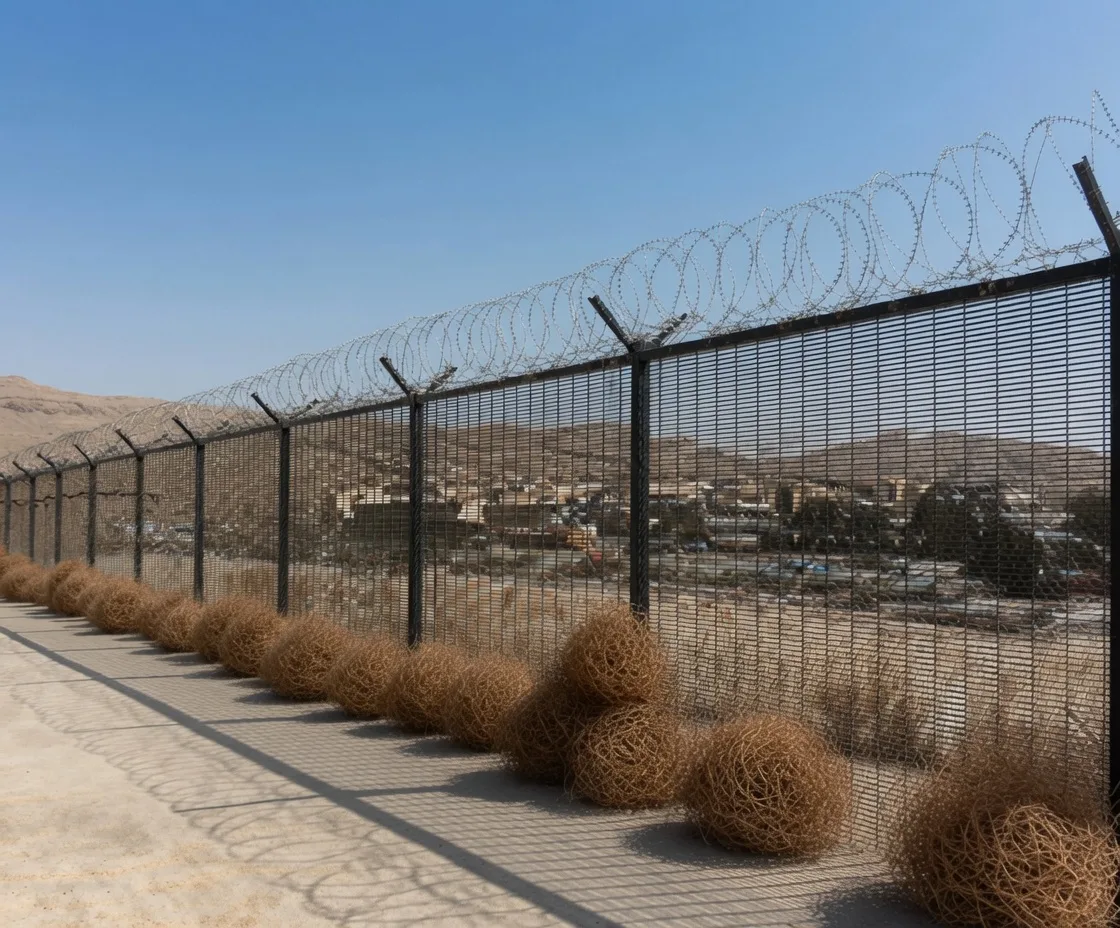

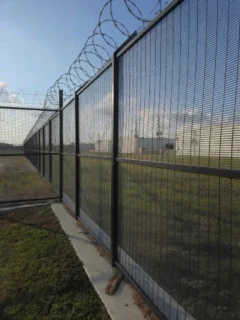

Topper options include spike, flat spike, barbed, razor wire or razor mesh.
THE FAMILY
ONE PLATFORM. SIX CONFIGURATIONS.

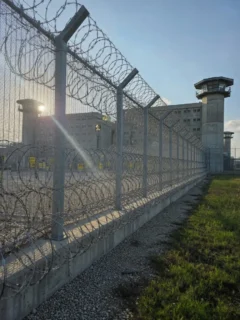

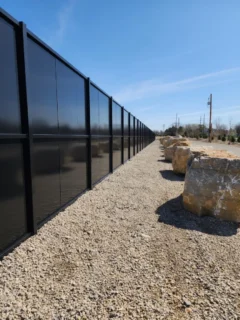

| Model / AVBD | Configuration / Threat | Rating / Performance | Standard | Notes |
|---|---|---|---|---|
| AVBD 1001 | 358 anti-climb | ASTM F2781 | SecureMesh Base System. | |
| AVBD 1002 | M30 / M50 | P1 / P2 | ASTM F2656-23 | SecureMesh Integrated PVB; carries BSP’s DoD listed passive cable barrier behind the mesh line. |
| AVBD 1003 | Cut-delay | Class IV | ASTM F1233 | SecureMesh Delay; independently cut-delay tested. |
| AVBD 1006 | Detention grade | SecureMesh Correctional; taller panels, heavier posts, razor-wire ready. | ||
| AVBD 1007 | Visual screening | SecureMesh Shutter; solid infill blocks sightlines. | ||
| AVBD 1010 | Rapid deploy | SecureMesh Temporary; temporary fence and gate system. |
10
Family10 = SecureMesh welded mesh
0
Threat Rating0 = base family digit. Anti-ram rating is carried by the configuration, not this digit.
1 - 10
Configuration1 = base - 2 = Integrated PVB - 3 = Delay - 6 = Correctional - 7 = Shutter - 10 = Temporary
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 1002 is SecureMesh (10), non-crash base family digit (0), Integrated PVB configuration (2).
RATINGS BY CONFIGURATION
TESTED TO THE STANDARD THAT GOVERNS THE CONFIGURATION.
ASTM F2781ASTM F1233ASTM F2656INTEGRATED CABLE BARRIER, DOD LISTED
SecureMesh ratings vary by configuration. The brochure references ASTM F2781 and ASTM F1233 Class IV. SecureMesh Integrated PVB uses BSP's ASTM F2656 passive cable barrier at M30 and M50, P1 and P2, with all those anti-ram configurations listed on the DoD Anti-Ram Vehicle Barrier List.
SPECIFICATIONS
AT A GLANCE.
- Mesh aperture
- 3" × 0.5"
- Wire
- 6ga–10.5ga; 8ga standard
- Post spacing
- 97½" O.C.
- Maximum system height
- 20 ft
- Wind load
- ASCE 7, engineered to 180 mph (HVHZ)
- Finish
- Hot-dip galvanized + polyester powder; 11-stage pretreatment
- Origin
- Made in the USA
- Integrated PVB
- ASTM F2656 M30/M50, P1/P2; up to 200 ft tested span
Warranty
Manufacturer warranty coverage for this product.
Labor5 years
Materials / Coating20 years
Component / ScopeCoating and materials
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
