Post Assembly
Carries the leaves and houses the drive; one drilled pier per post.
ACTIVE VEHICLE BARRIERS · AVBD 210
AVBD 210PRODUCT DATA
Bi-Folding Speed Gate
HIGH-THROUGHPUT VEHICLE ACCESS CONTROL
Seventy-five percent open in four seconds, fully open in seven. Clear widths to 30 ft and heights to 16 ft, on two drilled piers, with none of the run-back a slide gate needs or the swing radius a swing gate needs.
BSP manufactures custom non rated gates in all shapes and sizes, available to quote on request.
3-YEAR WARRANTYUL 325 · UL 991MADE IN THE USA30 FT CLEAR SPAN
THE CASE FOR BI-FOLDING
A GATE THAT ISN'T IN YOUR WAY.
Sliding and swinging gates both want ground the site rarely has. A bi-fold asks for about eight feet either side and nothing beyond the fence line. Two short leaves move through less arc than one long one, so the lane clears sooner.
The gate is 75% open in four seconds and fully open in seven seconds on cantilever systems. It is an access-control product, not a crash-rated barrier; where vehicle barrier rating is required, pair it with a BSP crash-rated barrier.
DIFFERENTIATOR

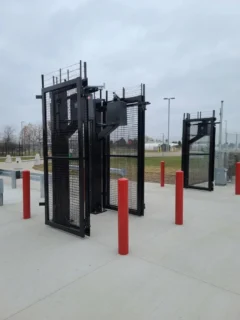

The outer leaf folds back instead of sweeping the lane.
A 30 ft clear width opens in roughly the footprint of a 15 ft swing gate, at continuous duty.

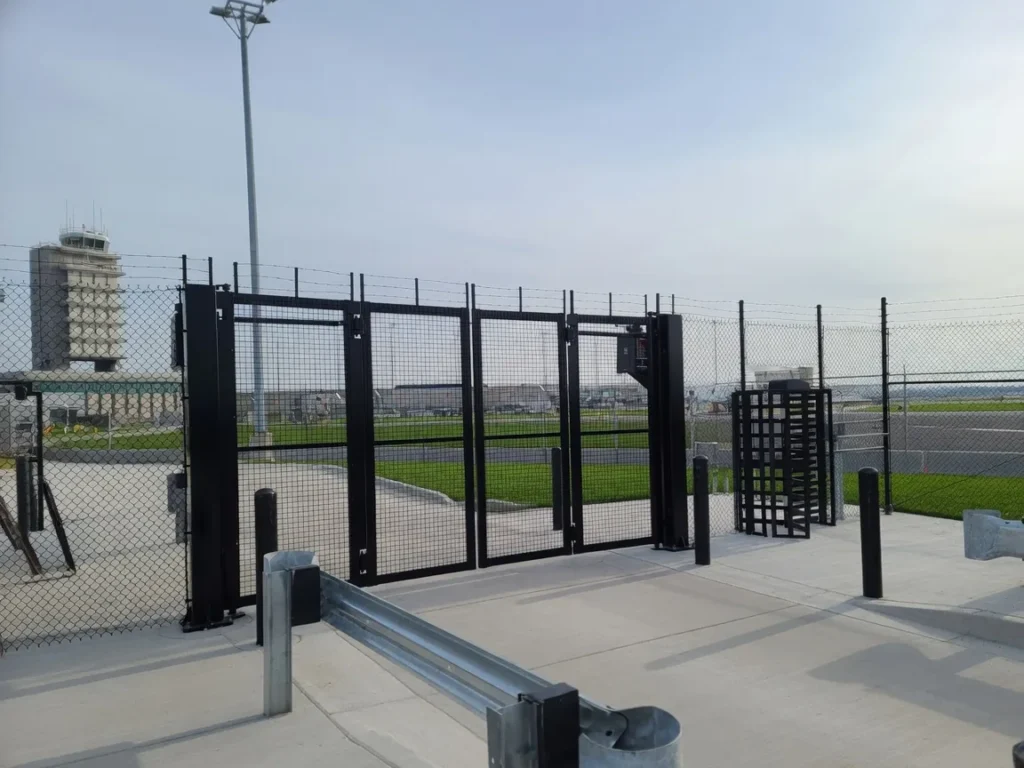

AVBD 210 bi-folding speed gate - 75 percent open in four seconds.
4s
TO 75% OPEN
30′
MAXIMUM CLEAR WIDTH
16′
MAXIMUM LEAF HEIGHT
24/7
CONTINUOUS DUTY CYCLE

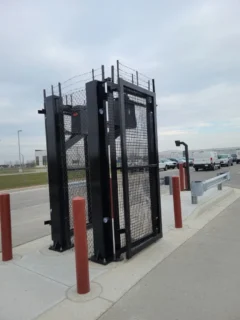

SYSTEM ANATOMY
NINE PARTS. TWO OF EACH.
Leaf A inner
Driven leaf hinged to the post.
Leaf B outer
Folds back against Leaf A rather than sweeping the lane.
Geared Drive Hinge
Transfers drive into the fold.
Geared Non-Drive Hinge
Carries the outer leaf fold.
Post Hinge Bracket
Sets hinge line and transfers load to post.
Stretcher Arm
Maintains fold geometry.

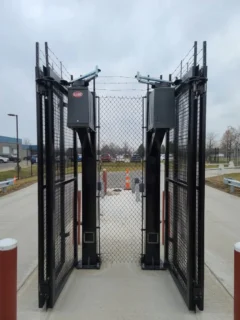

Gate Operator
24 VDC brushless, ½ HP, 60:1 gearbox, continuous duty.
Centering Bracket
Aligns the two halves at closed position.
CONFIGURATION & FINISH
BI-PARTING BY DESIGN.
| Model / AVBD | Configuration / Threat | Standard | Notes |
|---|---|---|---|
| AVBD 210 | Access control | UL 325 / UL 991 | Bi-parting, two mirrored halves; cantilever or track; NOT crash rated. |
2
Family2 = Gate
1
Threat Rating1 = non-crash access control
0
Configuration0 = bi-folding speed gate
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 210 is a gate (2), non-crash access control (1), in the bi-folding configuration (0).
ACCESS CONTROL, NOT A CRASH BARRIER
DESIGNED FOR THROUGHPUT, NOT VEHICLE IMPACT RATING.
UL 325 (2018)UL 991NFPA 70NEMA / IP67Buy American
The Bi-Folding Speed Gate is not crash rated and BSP does not present it as one. It complies with UL 325 and UL 991 for gate/operator safety and is intended to control access and throughput. Where a crash rating is required, specify it alongside a rated vehicle barrier.
SPECIFICATIONS
AT A GLANCE.
- Configuration
- Bi-parting, two mirrored halves
- Clear width
- Up to 30 ft
- Leaf height
- Up to 16 ft
- Systems
- Cantilever or track
- Opening — cantilever
- 7 seconds; 75% in 4 seconds
- Opening — tracked
- 8 seconds
- Duty cycle
- Continuous
- Foundation
- One drilled pier per post
- Motor
- 24 VDC brushless, ½ HP
- Gearbox
- 60:1 reduction
- Supply
- 24 V, or 115 / 230 / 480 VAC 1 PH
- Battery back-up
- Up to 50 cycles
- Operating temperature
- −40 °F to 160 °F
- Infill
- Mesh, picket, chain link, iron or solid
- Origin
- Manufactured in the United States
Warranty
Manufacturer warranty coverage for this product.
Parts10 years
Labor10 years
Special / Component3 years commercial
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
