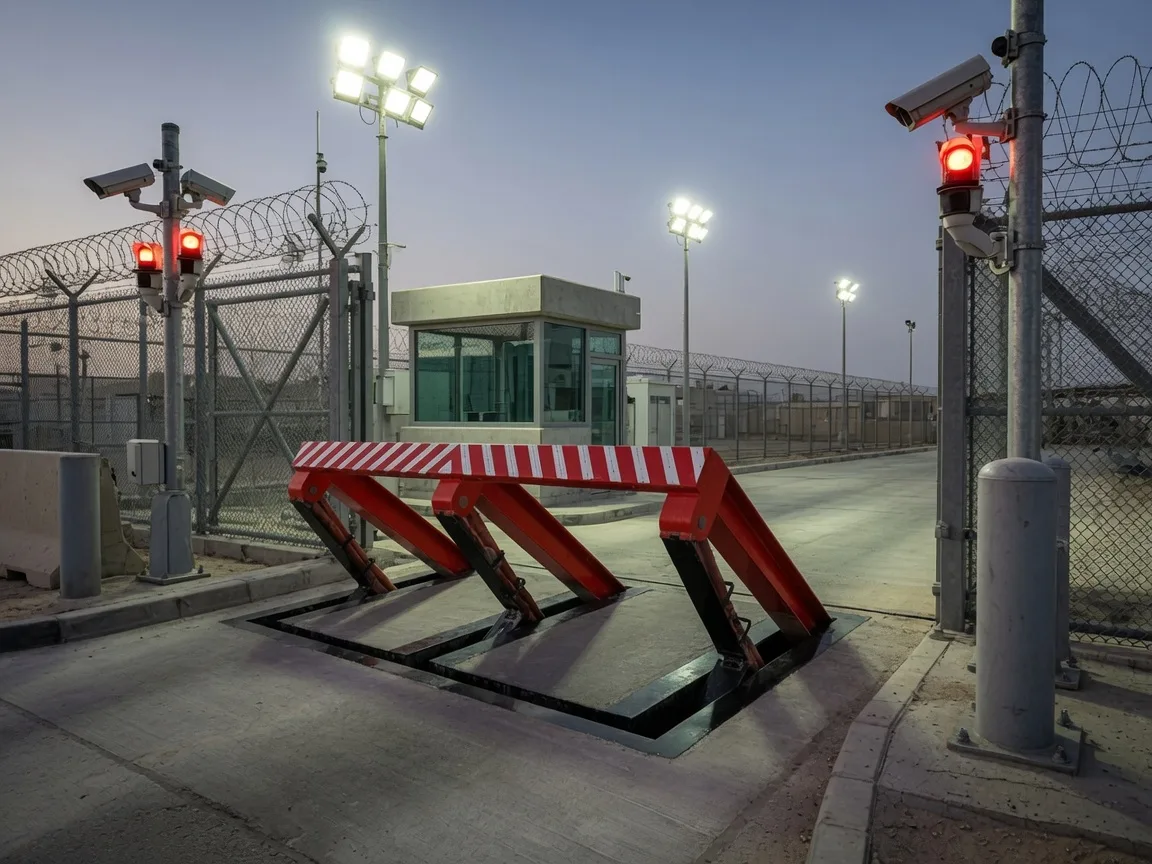

Three-finger wedge
Direct-acting wedge; the primary moving assembly.
ACTIVE VEHICLE BARRIERS · AVBD 400 SERIES
AVBD 400 SeriesPRODUCT DATA

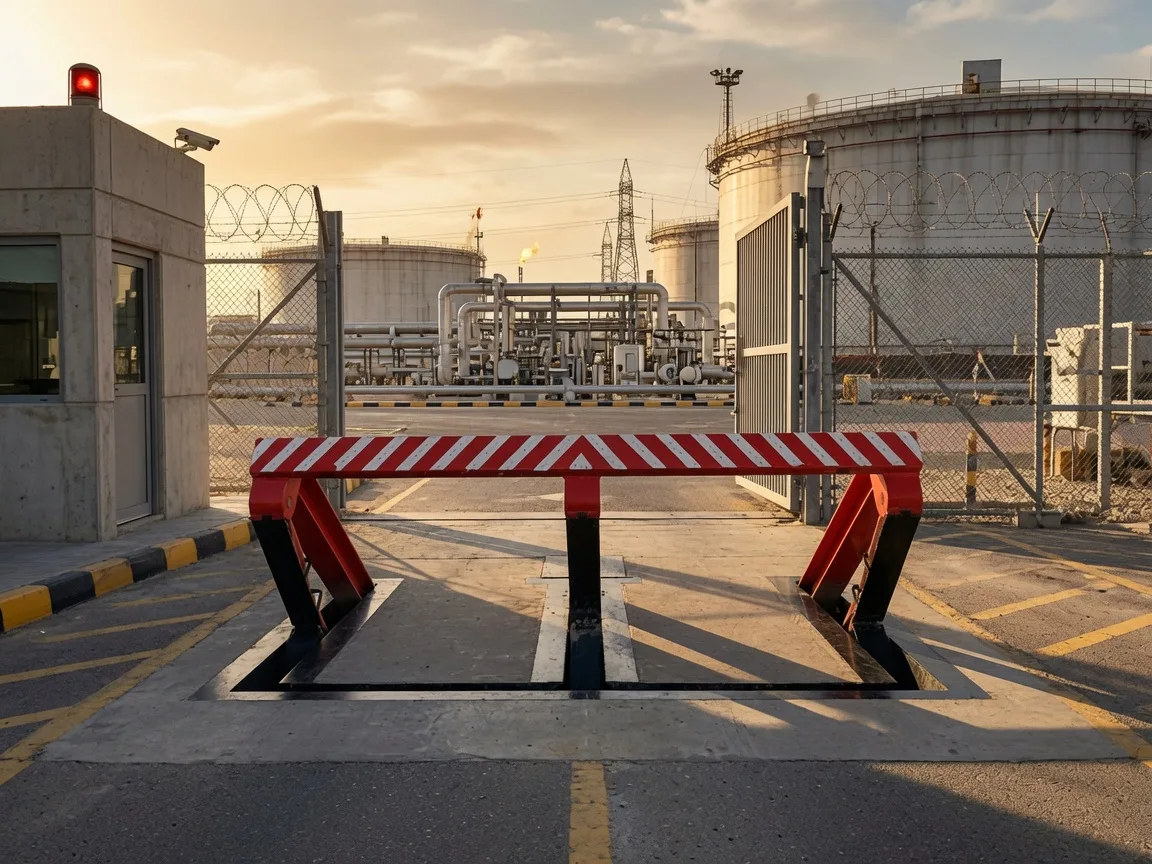

Wedge Barriers: Anti Ram Wedge Barrier Systems for Vehicle Access Control
M50 P1 · SHALLOW-FOUNDATION ACTIVE VEHICLE BARRIERS

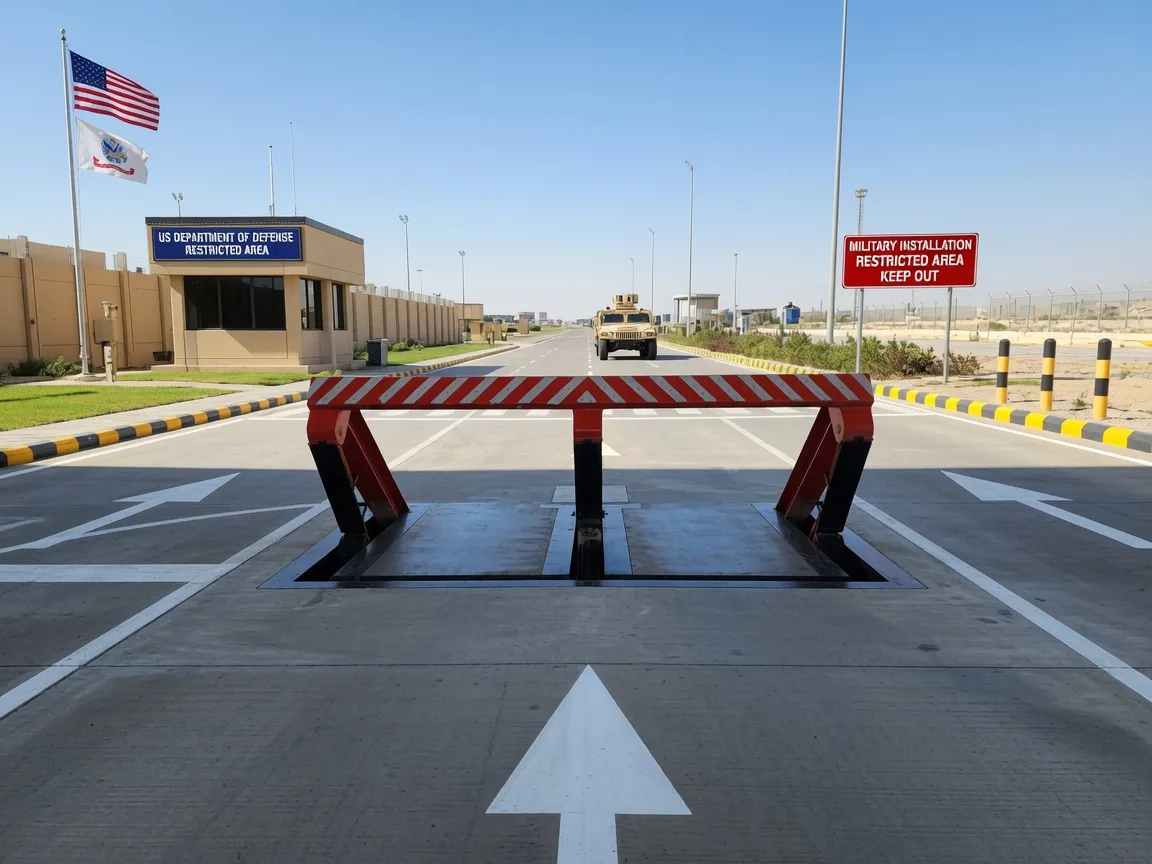

The AVBD 452 Shallow Foundation Wedge Barrier is BSP's M50 P1 wedge barrier, designed for shallow foundation applications where excavation depth is limited.
12-INCH FOUNDATIONASTM F2656-23 · M50 P1MADE IN THE USADOD ANTI-RAM LIST
THE CASE FOR SHALLOW
TWELVE INCHES INSTEAD OF A PIT. (AVBD 452)
AVBD 452 sits in a twelve-inch reinforced slab rather than a conventional pit. The tested configuration holds an M50 P1 rating under ASTM F2656-23 and is listed on the DoD Anti-Ram Vehicle Barrier List.
A 15,120-lb truck at 51.46 mph produced 0.45 ft of dynamic penetration and −0.75 ft static penetration. The product uses a direct-acting three-finger wedge with hydraulic, hybrid or electric drive options.
DIFFERENTIATOR
M50 P1 in a 12 in slab.
No deep pit and no utility relocation, at 0.45 ft of measured dynamic penetration.

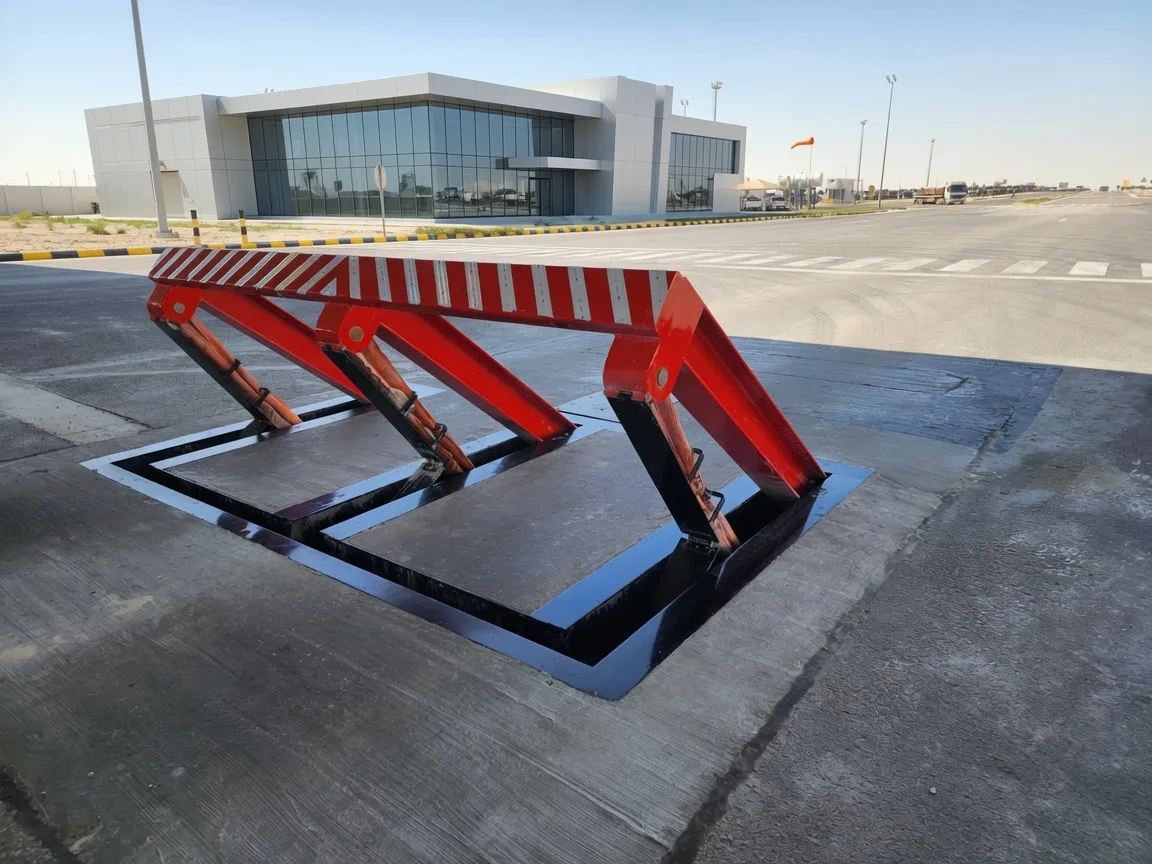

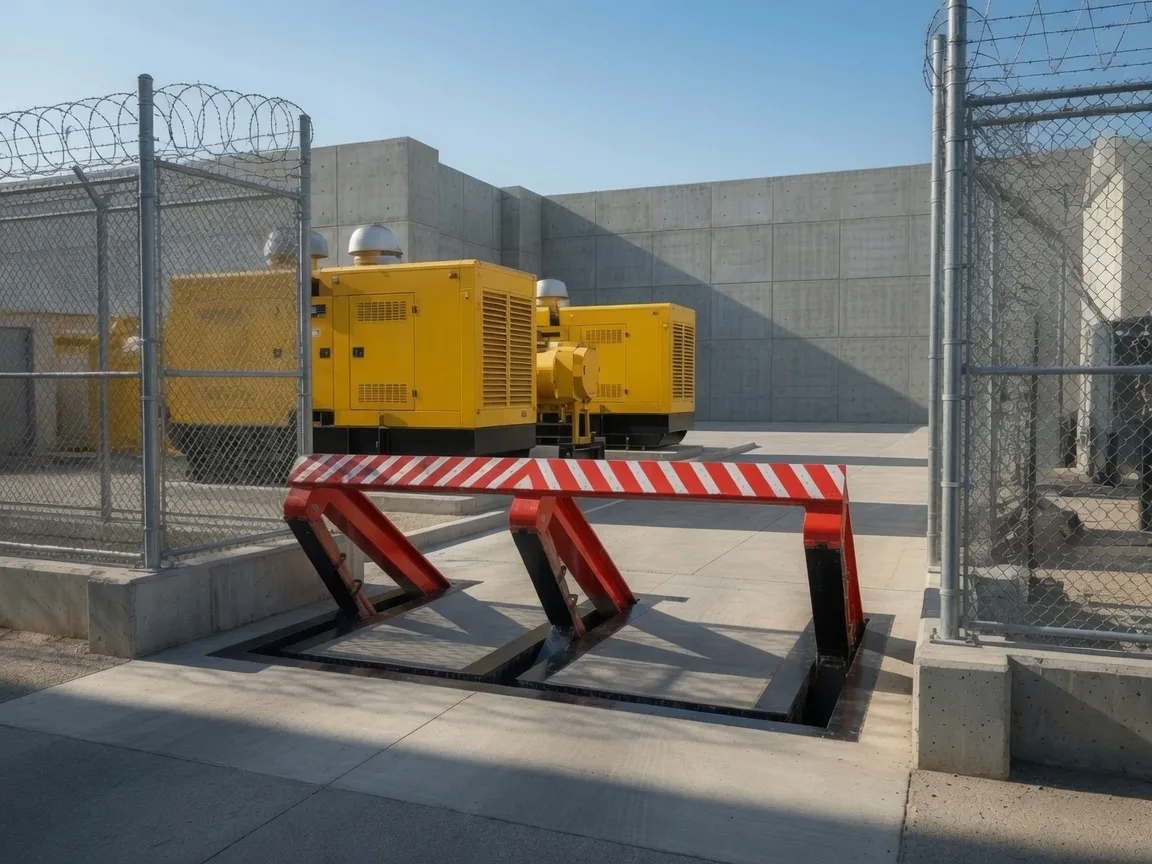

AVBD 452 shallow-foundation wedge set in a 12 in reinforced slab.
12"
AVBD 452 FOUNDATION DEPTH
0.45′
AVBD 452 MEASURED PENETRATION
<1.5s
AVBD 452 EMERGENCY DEPLOY
39"
AVBD 452 BLOCKING HEIGHT
SYSTEM ANATOMY
THREE FINGERS. NOTHING TO WEAR OUT. (AVBD 452)

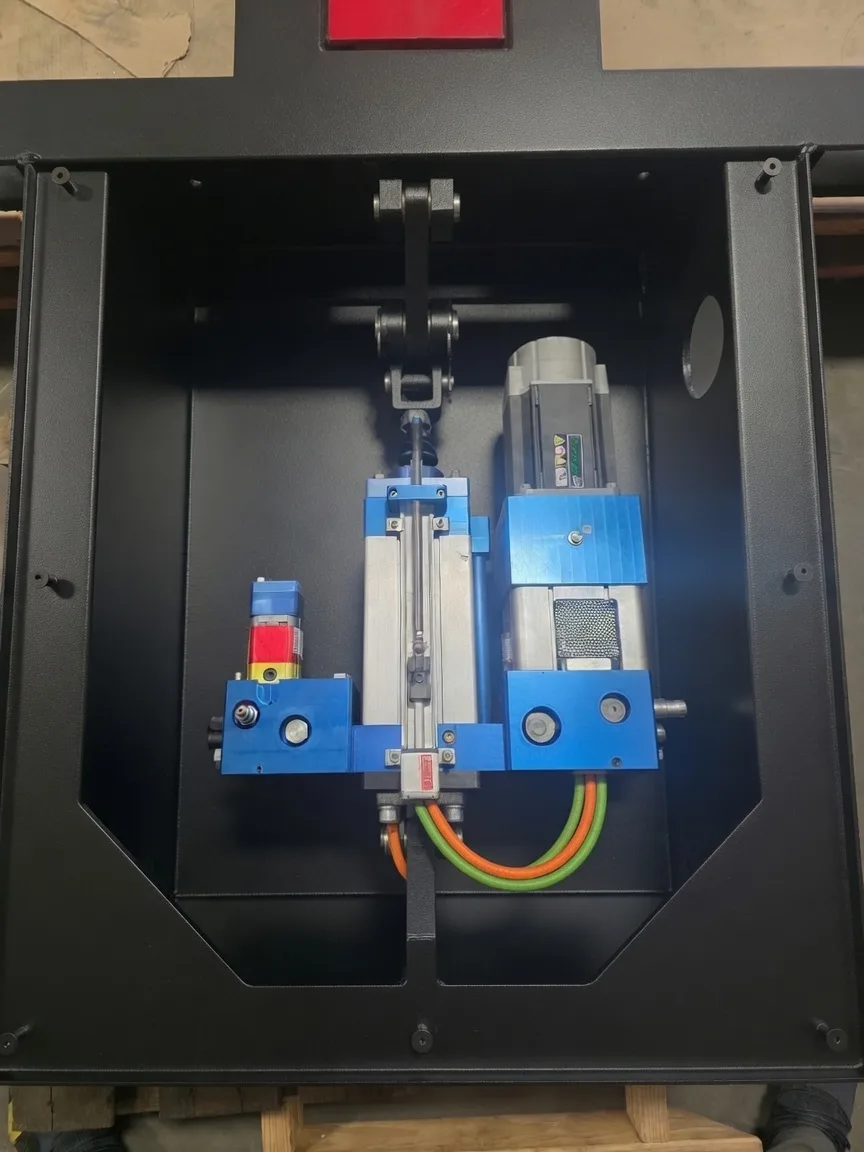

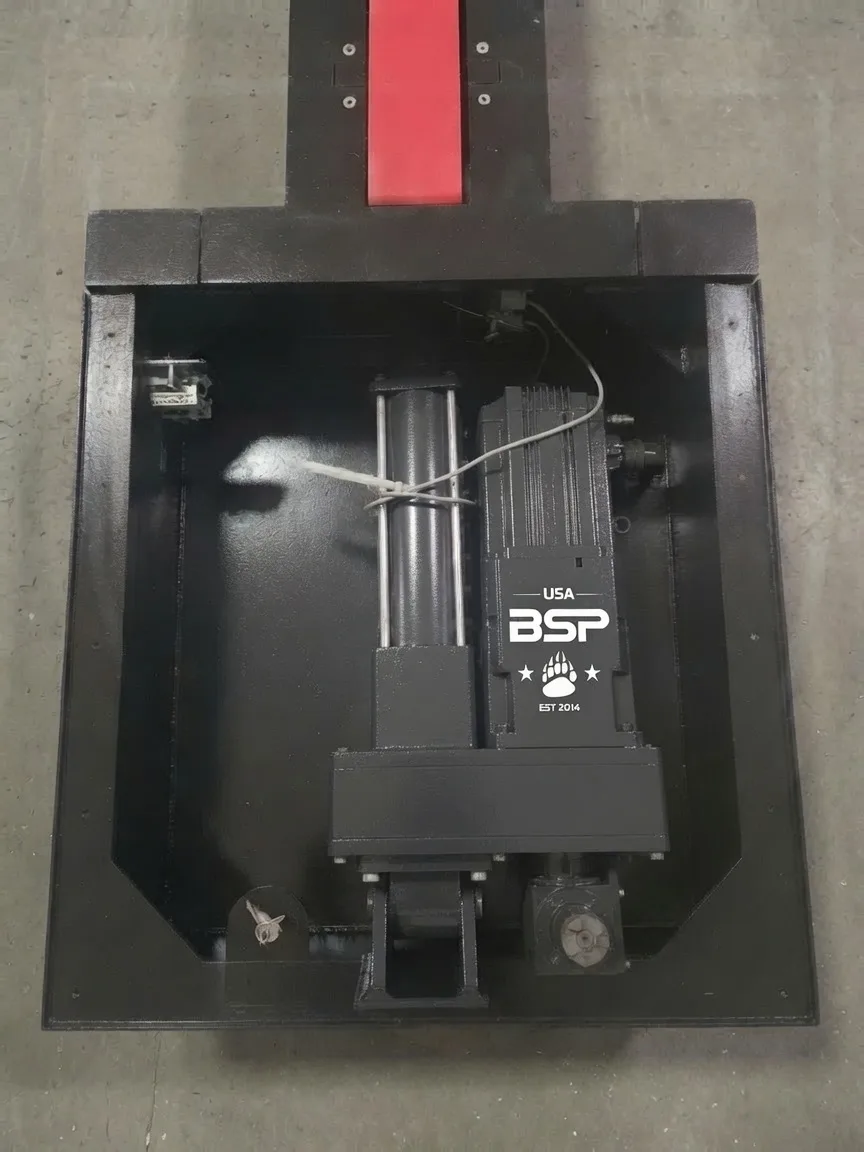

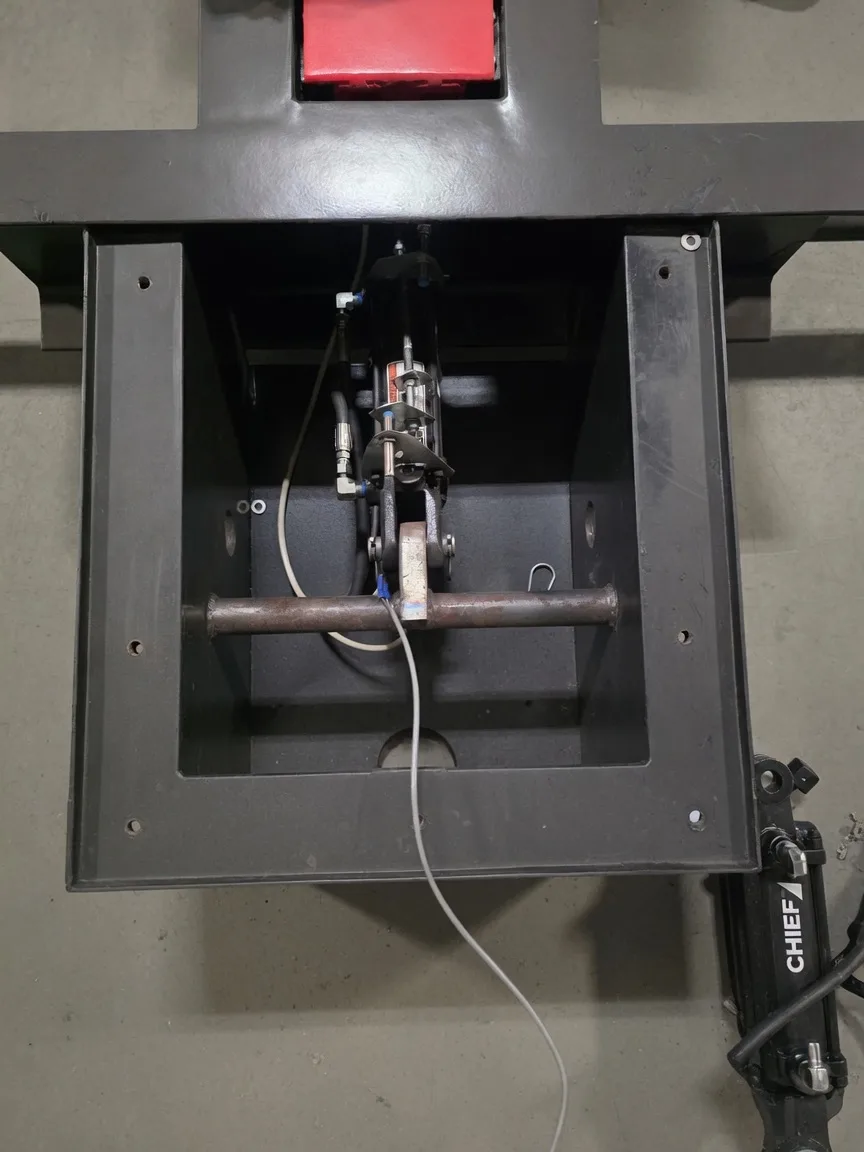

Actuator / drive
Hydraulic, hybrid or electric drive selected to the site.
Reinforced slab
AVBD 452: 12" deep reinforced concrete slab.
Controls
PLC, relays and timers; emergency operation and position control.
CONFIGURATIONS
SHALLOW FOUNDATION WEDGE CONFIGURATION.
| Model / AVBD | Threat | Penetration | Standard | Test Lab | Notes |
|---|---|---|---|---|---|
| AVBD 452 | M50 | P1 | ASTM F2656-23 | Applus IDIADA KARCO | Shallow Foundation Wedge Barrier; 10 ft tested opening in catalog; 0.45 ft dynamic penetration. |
4
Family4 = Wedge Barrier
5
Threat Rating3 = M30 - 5 = M50
1 / 2
Configuration1ES = extra shallow - 2 = shallow foundation. See Configurations for tested penetration.
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 452 is a wedge barrier (4), rated M50 (5), in the shallow-foundation configuration (2).
VERIFIED, NOT SELF-DECLARED
AVBD 452: THIRTEEN PERCENT OF WHAT P1 ALLOWS.
ASTM F2656-23LISTED — DOD ANTI-RAM VEHICLE BARRIER LISTUSACE Protective Design CenterBuy American
AVBD 452 was crash tested by Applus IDIADA KARCO Engineering on 28 May 2024, report TR-P44175-01. Test vehicle 15,120 lb at 51.46 mph. Dynamic penetration 0.45 ft; static penetration −0.75 ft; M50 P1. Listed on the DoD Anti-Ram Vehicle Barrier List after USACE Protective Design Center review.
SPECIFICATIONS
AT A GLANCE.
- AVBD 452 crash rating
- ASTM F2656-23, M50 P1
- Measured penetration
- 0.45 ft dynamic; −0.75 ft static
- Blocking width
- 8 to 14 ft
- Blocking height
- 39" above grade
- Foundation
- Reinforced slab, 12" deep
- Slab
- 192" × 144"
- Concrete
- 4,000 PSI minimum
- Reinforcement
- #6 at 18" o.c., ASTM A615 Gr 60
- Drive options
- Hydraulic · hybrid · electric
- Deploy / retract
- 3–5 seconds
- Emergency deploy
- Under 1.5 seconds
- Axle load
- No weight restriction
- Test report
- TR-P44175-01
Warranty
Manufacturer warranty coverage for this product.
Parts5 years
Labor5 years
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
DOWNLOADS
SPEC IT IN.
