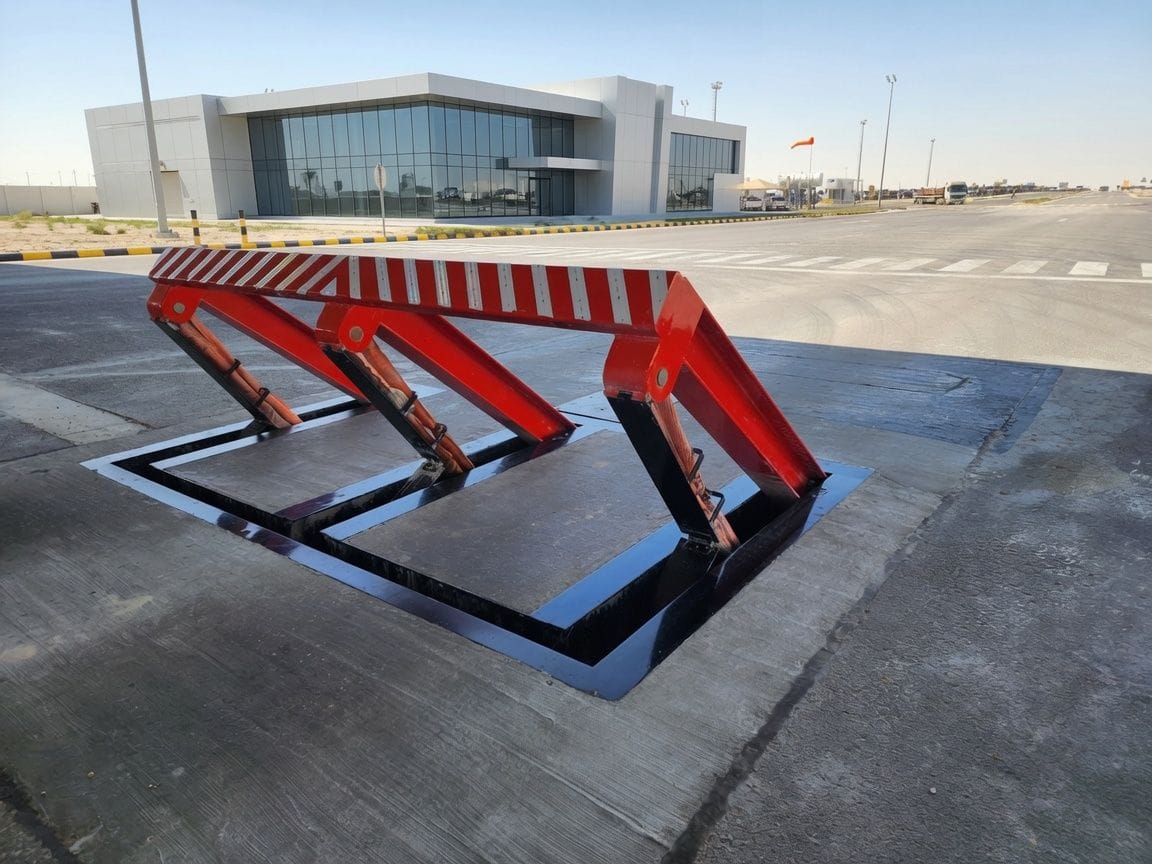

Three-finger wedge
Direct-acting wedge; the primary moving assembly.

Direct-acting wedge; the primary moving assembly.

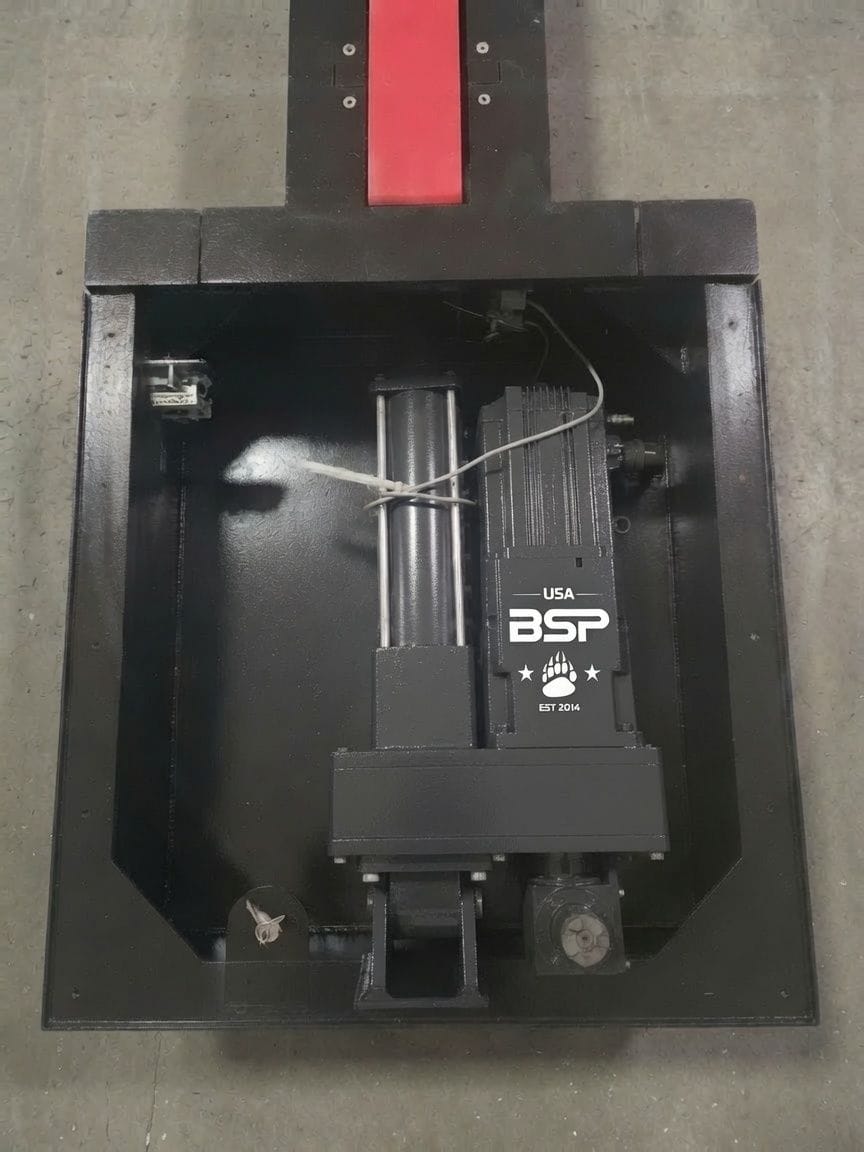

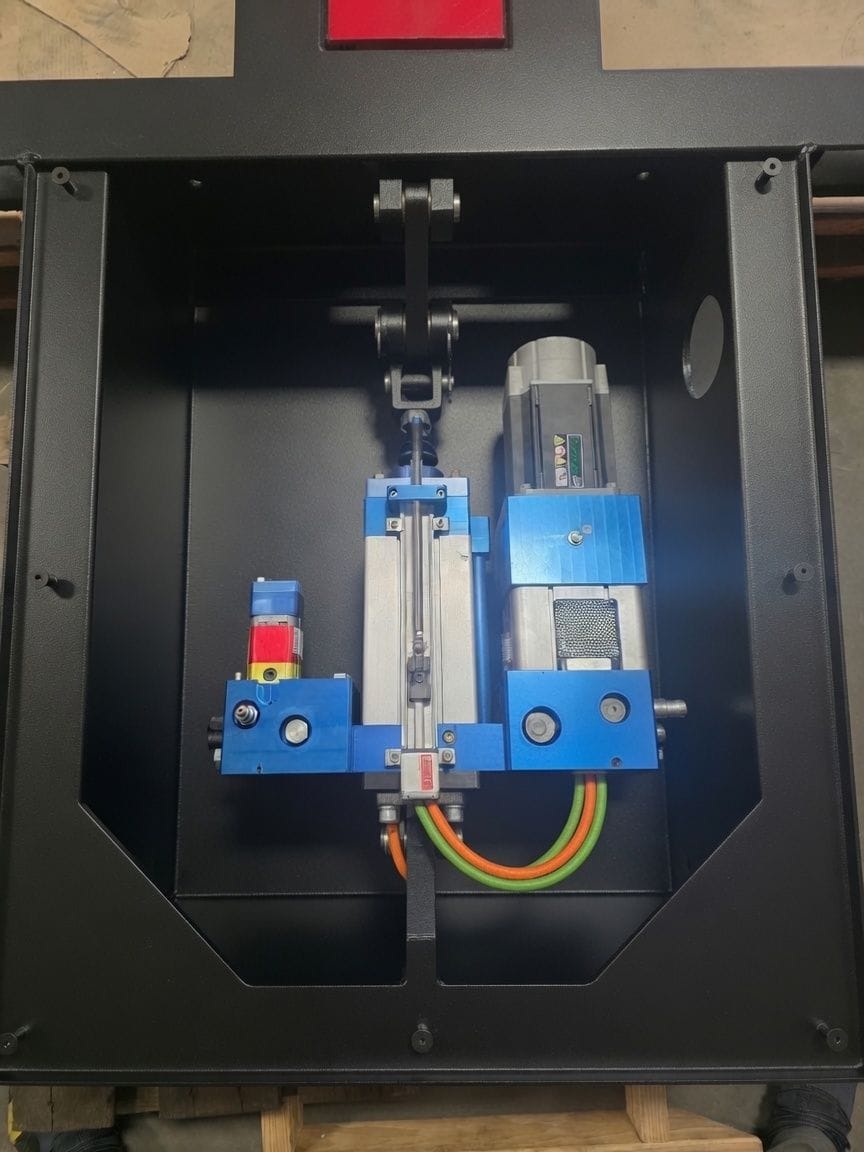

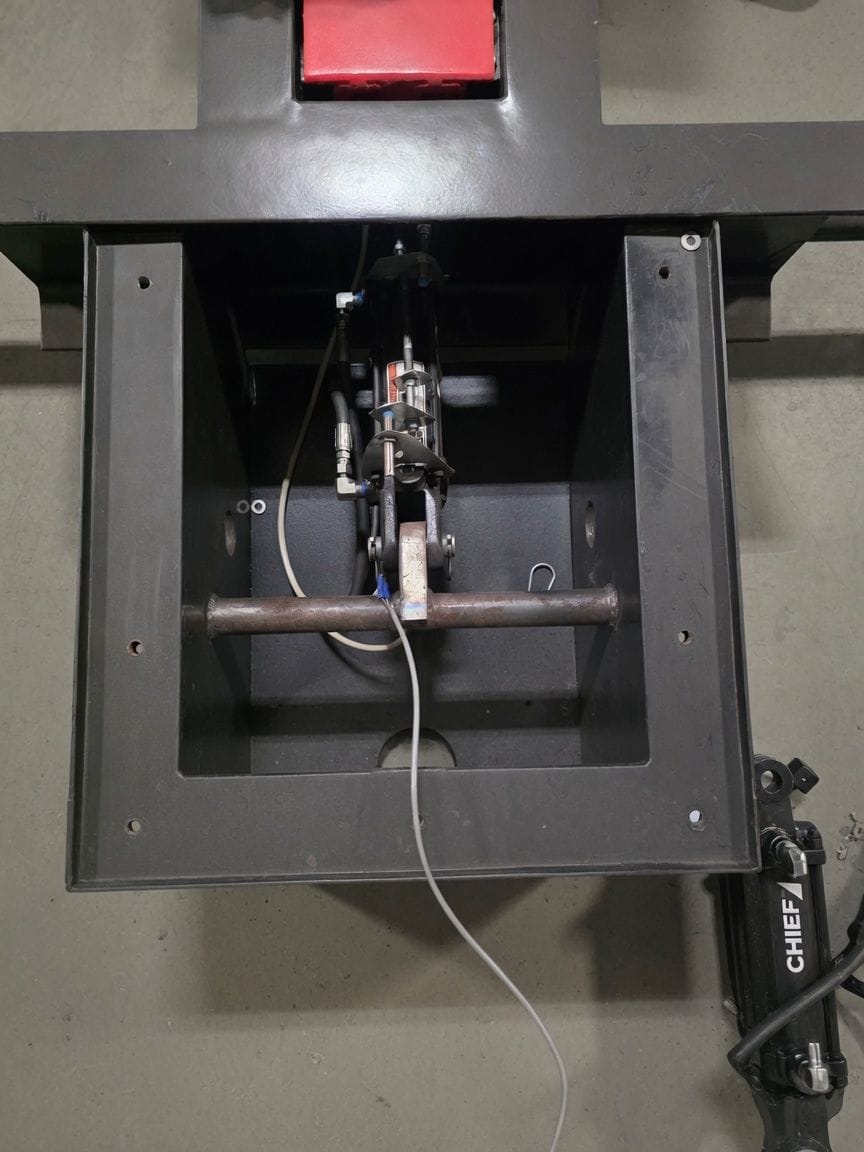

Hydraulic, hybrid or electric drive selected to the site.
AVBD 452: 12" deep reinforced concrete slab.
PLC, relays and timers; emergency operation and position control.
| Model / AVBD | Threat | Penetration | Standard | Test Lab | Notes |
|---|---|---|---|---|---|
| AVBD 452 | M50 | P1 | ASTM F2656-23 | Applus IDIADA KARCO | Shallow Foundation Wedge Barrier; 10 ft tested opening in catalog; 0.45 ft dynamic penetration. |
4 = Wedge Barrier
3 = M30 - 5 = M50
1ES = extra shallow - 2 = shallow foundation. See Configurations for tested penetration.
WATCH IN ACTION

Full scale crash test of the BSP AVBD 452 shallow foundation wedge barrier. A 15,000 lb test truck at 50 mph is stopped well inside the P1 limit. Tested at Applus IDIADA KARCO Engineering and rated ASTM F2656 M50 P1 (test report TR-P44175-01). The AVBD 452 is listed on the DoD Anti Ram Vehicle Barrier List (September 2026 list).

Crash test of the BSP AVBD 452 anti ram wedge barrier. A 15,000 lb test truck at 50 mph is stopped well inside the P1 limit. Tested at Applus IDIADA KARCO Engineering and rated ASTM F2656 M50 P1 (test report TR-P44175-01). The AVBD 452 is listed on the DoD Anti Ram Vehicle Barrier List (September 2026 list).
Warranty: as stated on the current BSP warranty certificate for this product.
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
