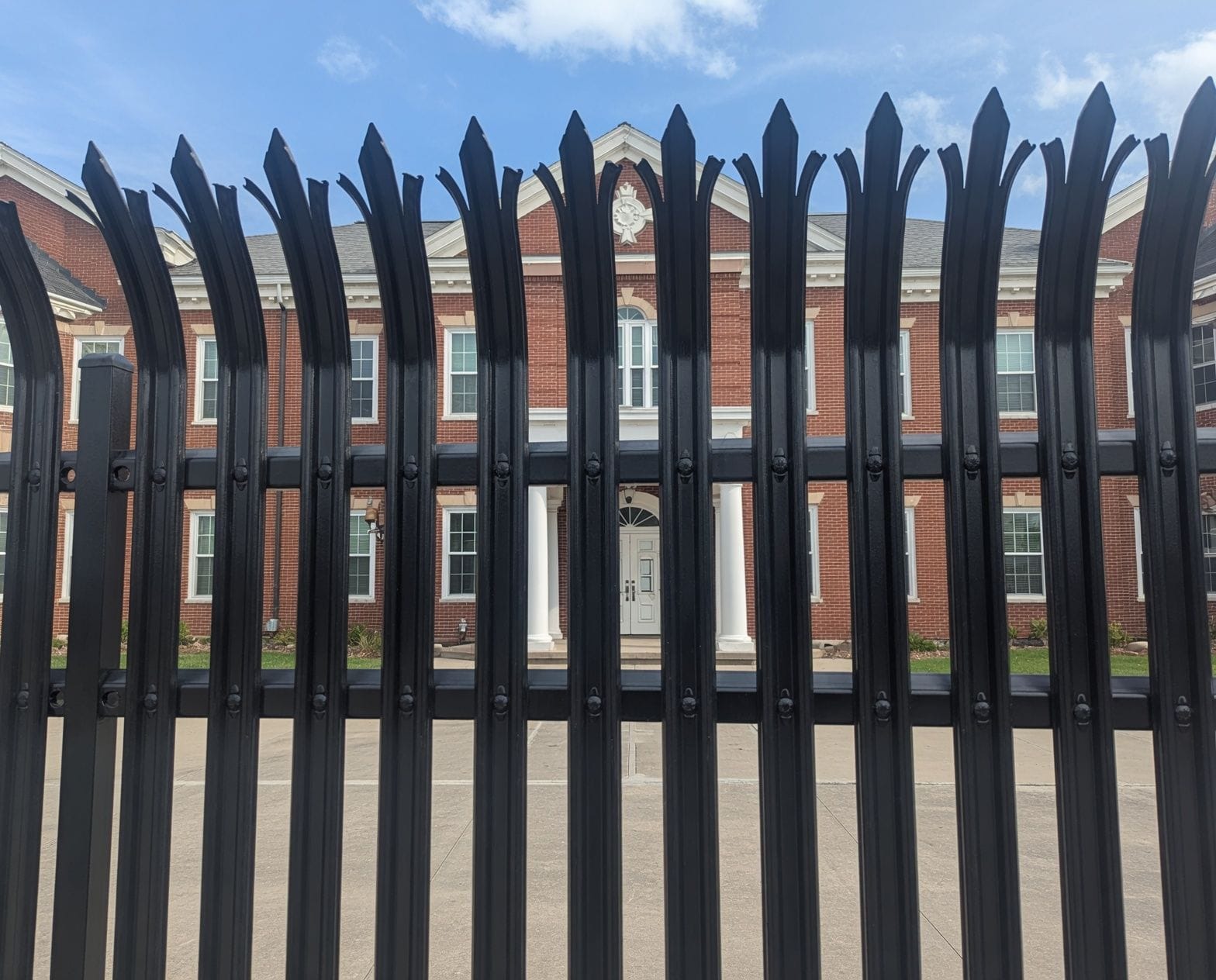

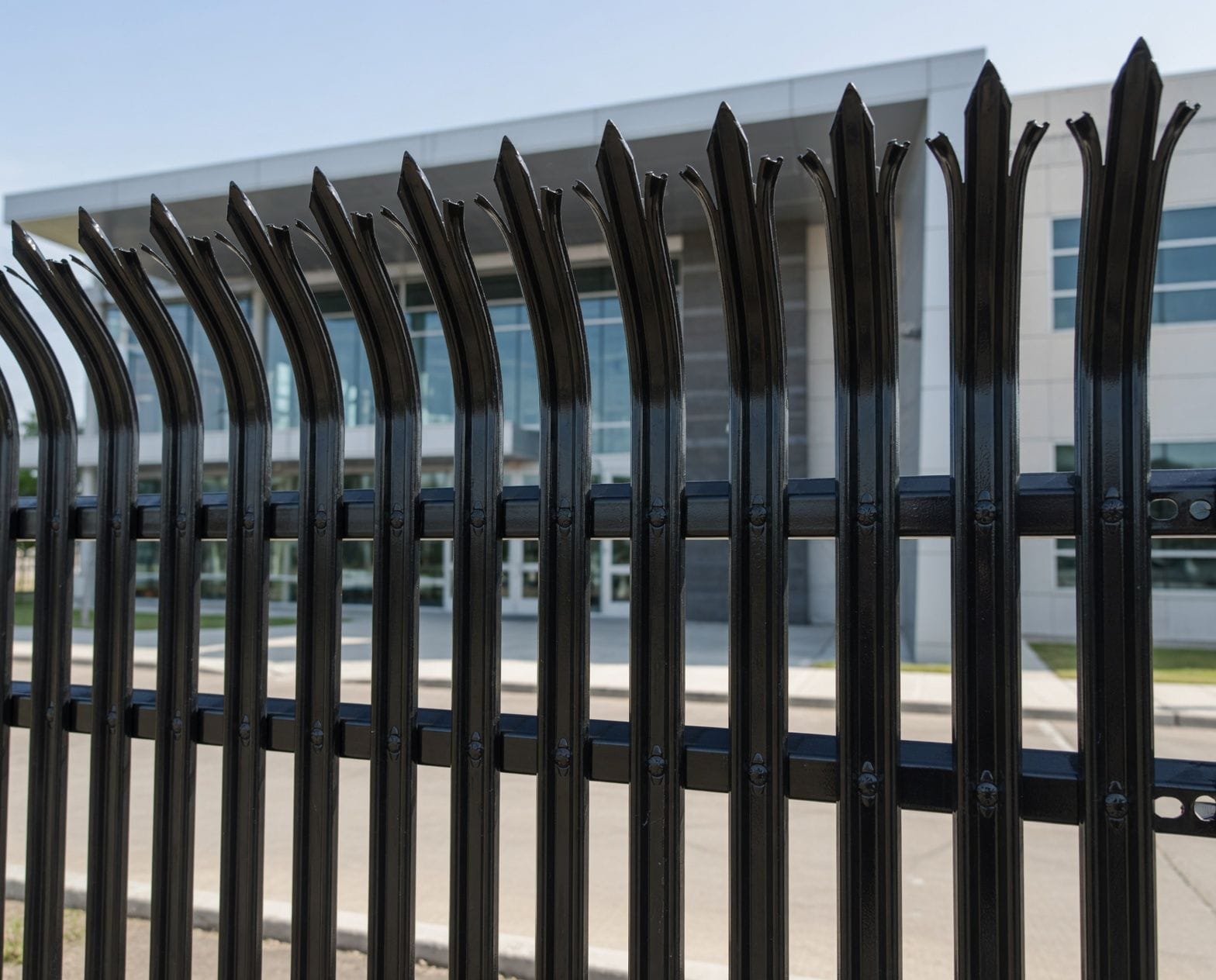

W-Shaped Pale
Roll-formed W-section resists prying and cutting.
SECURITY FENCING · AVBD 1101
AVBD 1100 SeriesPRODUCT DATA
SecurePale™
HIGH-SECURITY PALISADE FENCE SYSTEM
W-profile steel palisade engineered for critical infrastructure, federal installations and high-threat commercial perimeters, with optional integrated M30 / M50 anti-ram protection.
30-YEAR WARRANTYASTM F2656 · F2781MADE IN THE USADOD LISTED CABLE BARRIER OPTION
THE CASE FOR SECUREPALE
DETERRENCE YOU CAN SPECIFY WITH CONFIDENCE.

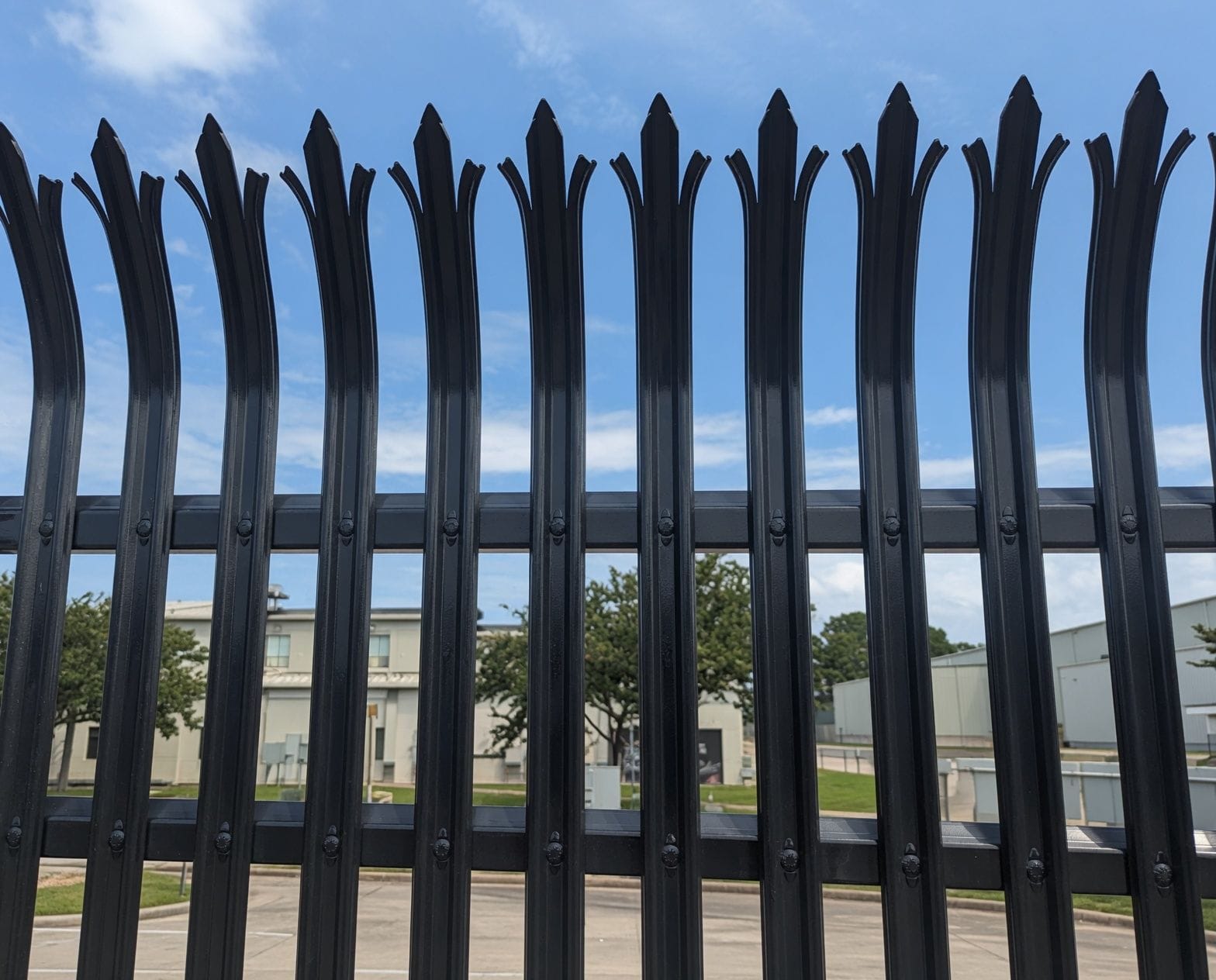

SecurePale uses a roll-formed W-section pale designed to resist bending, prying and cutting. Pales bolt to rails with break-away security nuts so the fence cannot be disassembled from the attack side, while damaged pales can be replaced individually.

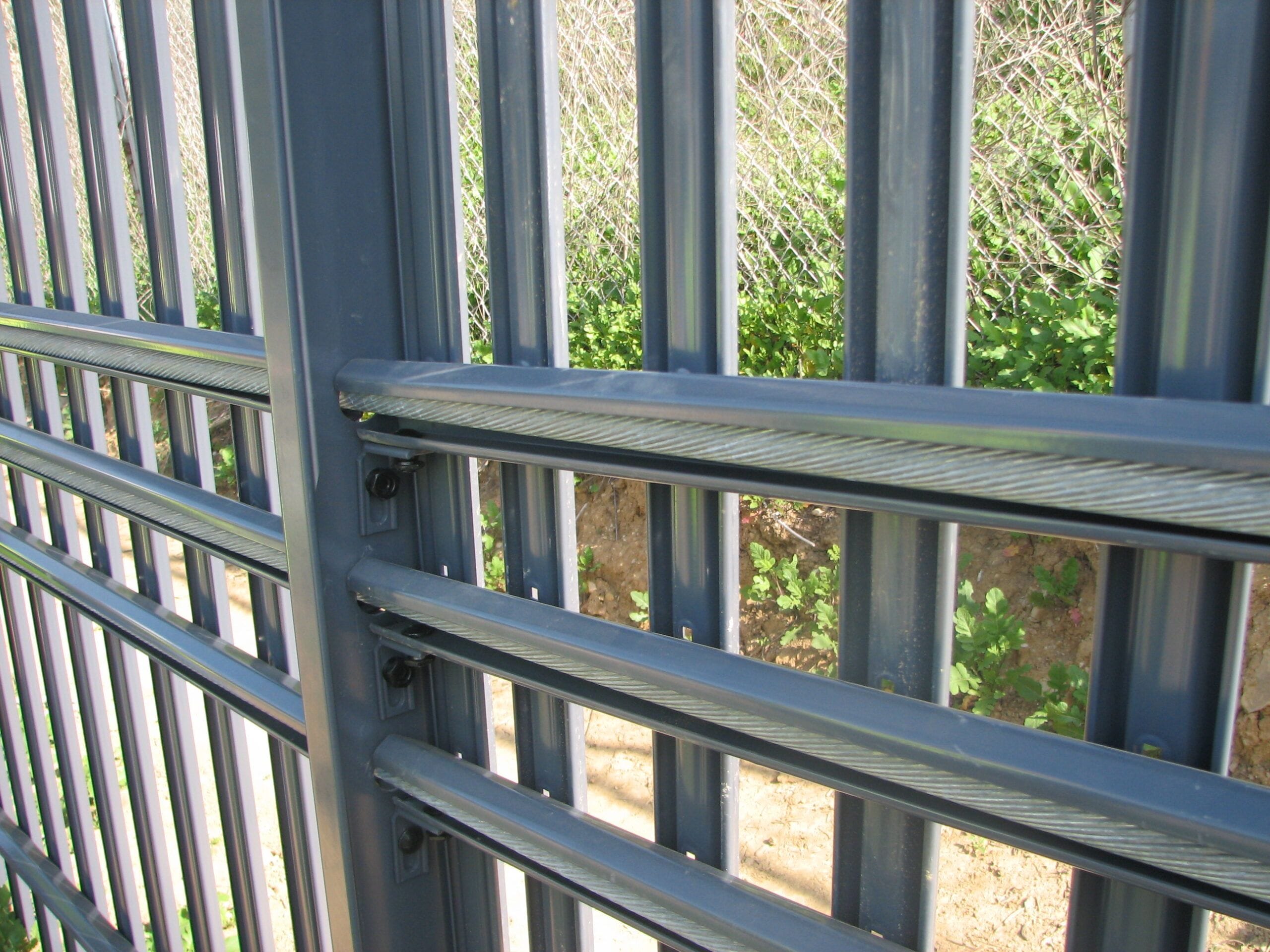

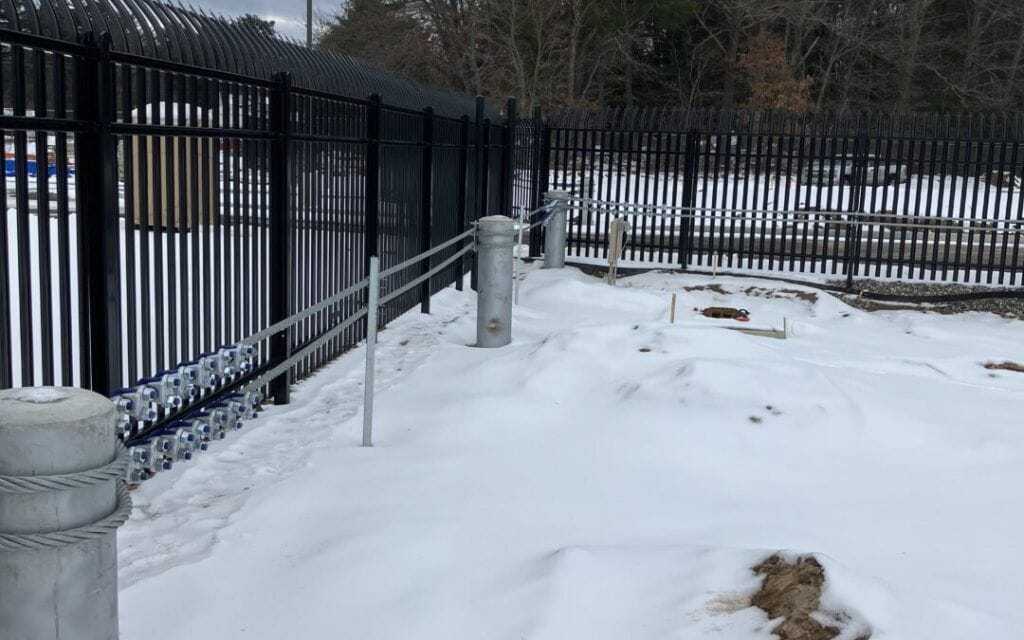

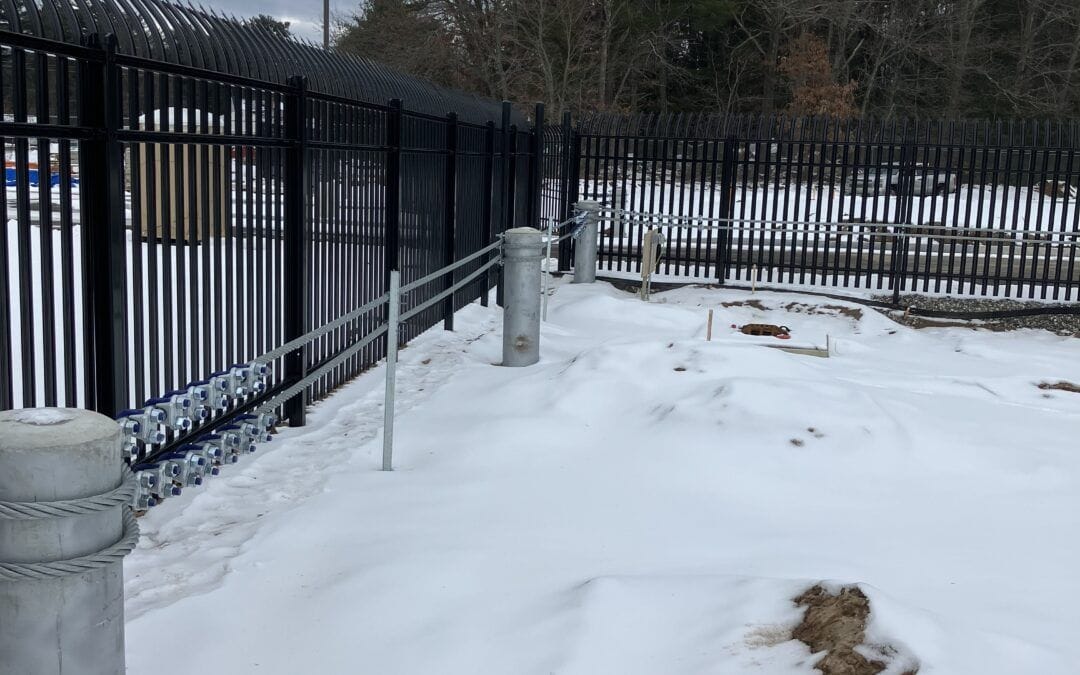

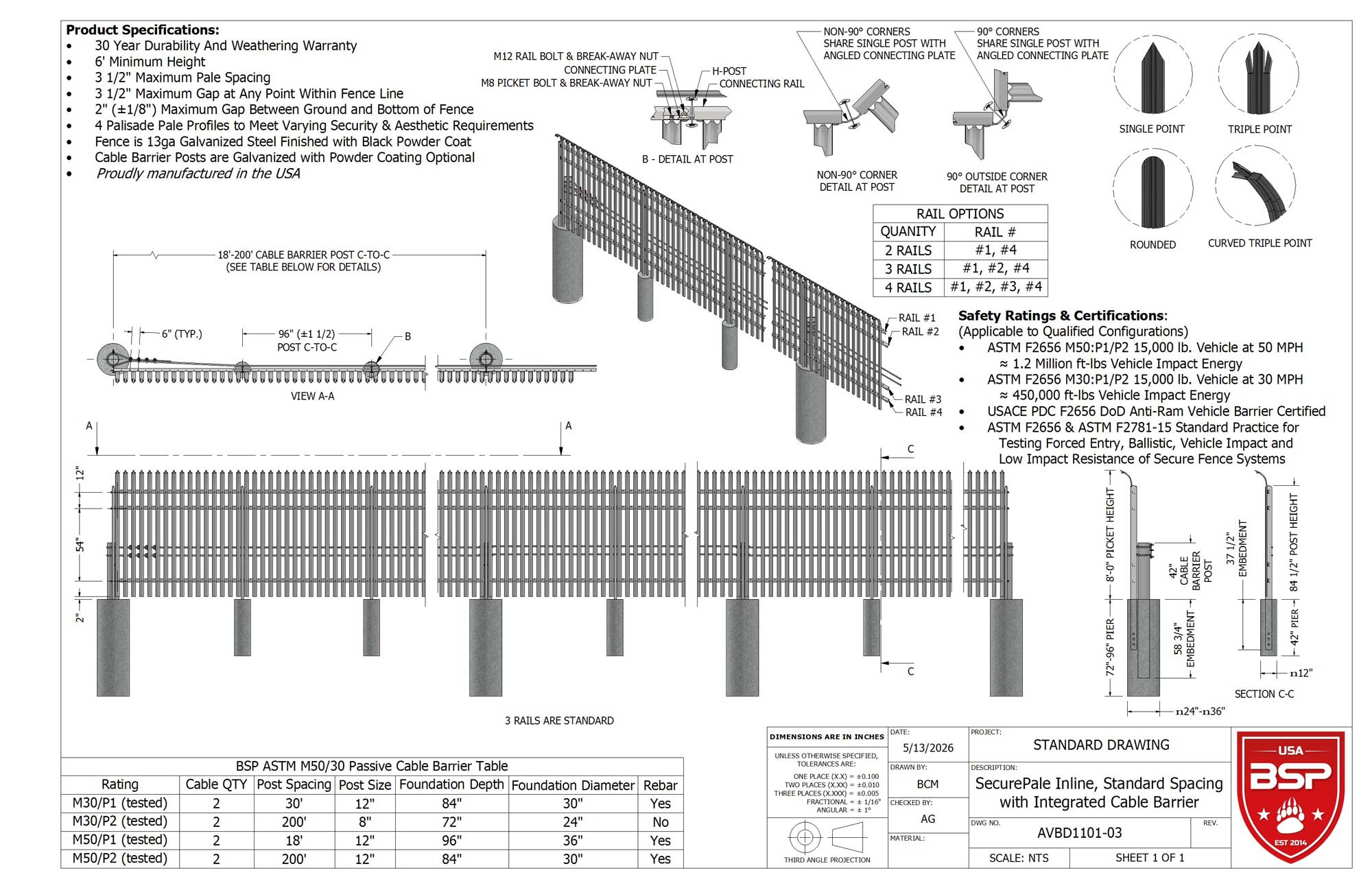

The system is fully bolted with no field welding and can integrate directly with BSP's ASTM F2656 crash-rated passive cable barrier.
DIFFERENTIATOR

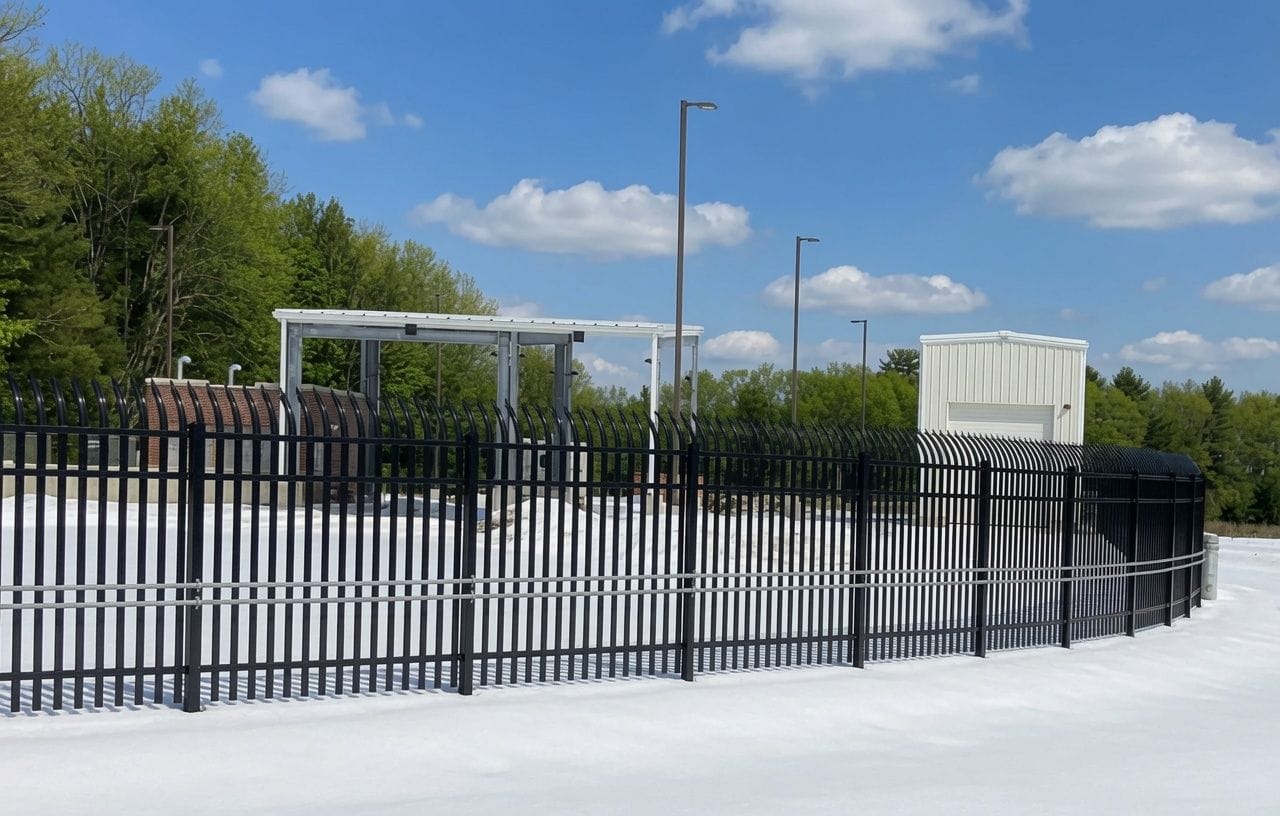

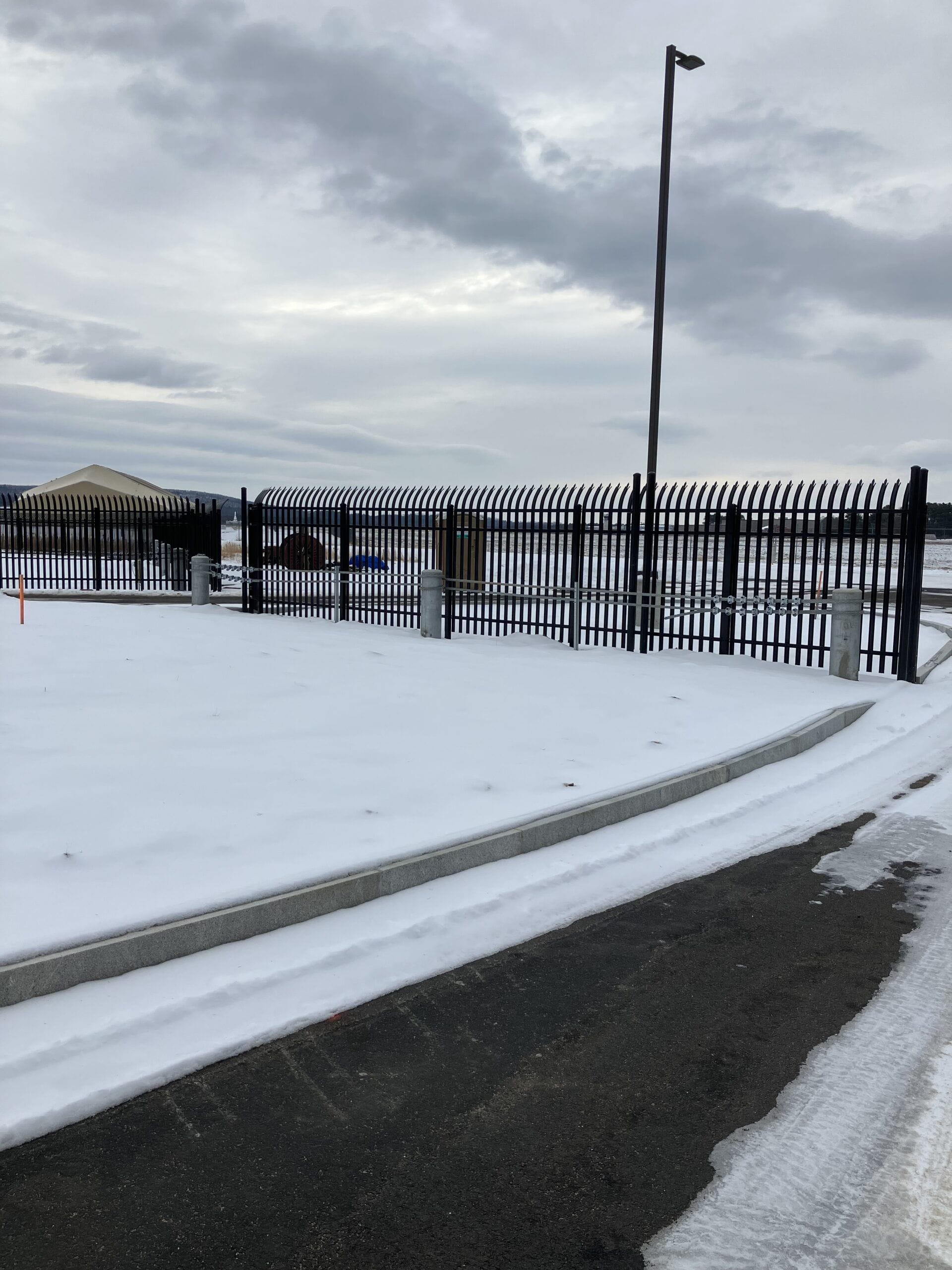

INTEGRATES DIRECTLY WITH ASTM F2656 CRASH-RATED CABLE BARRIER.
One manufacturer, one detail, one warranty for the fence and anti-ram interface.

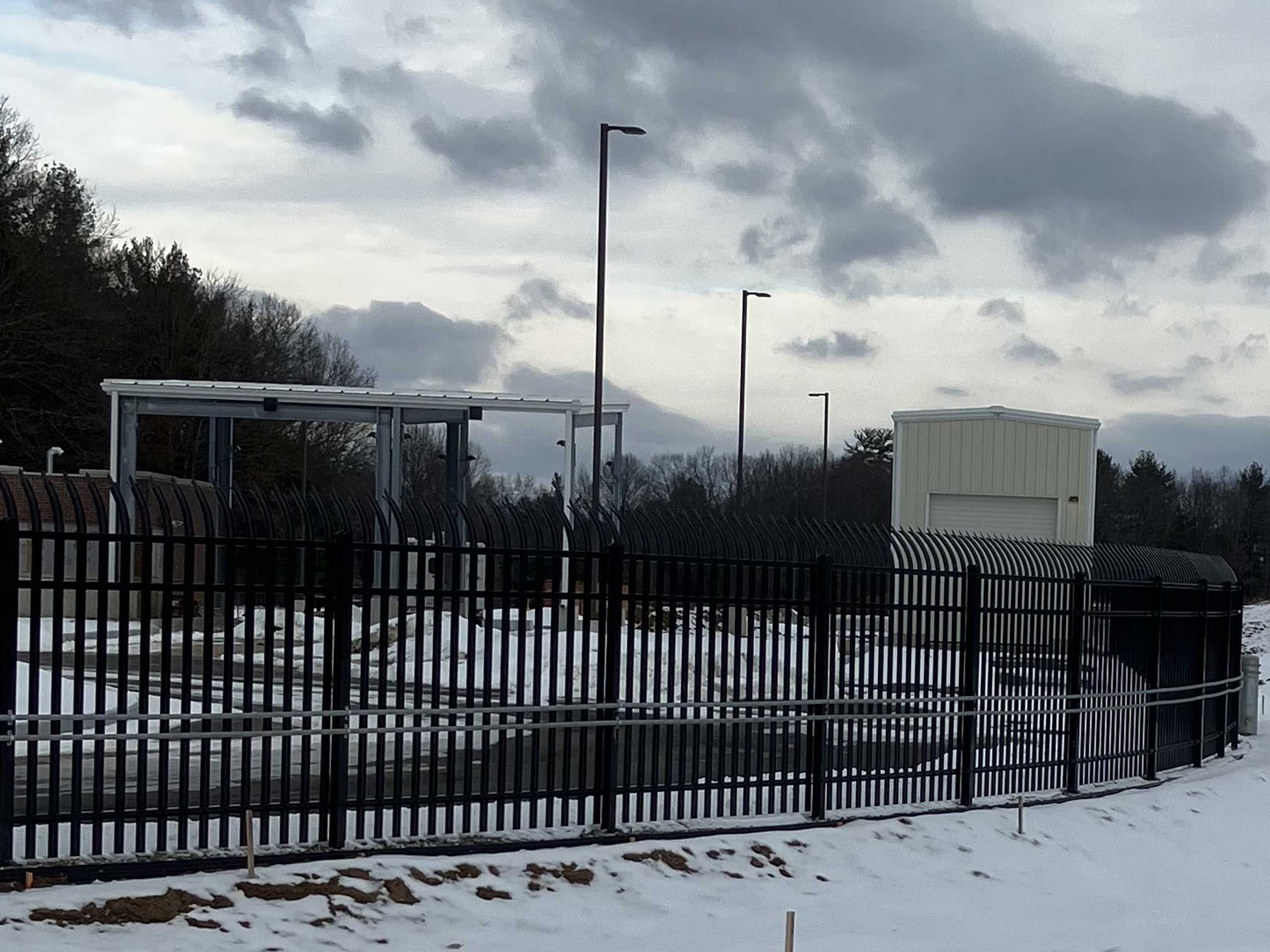

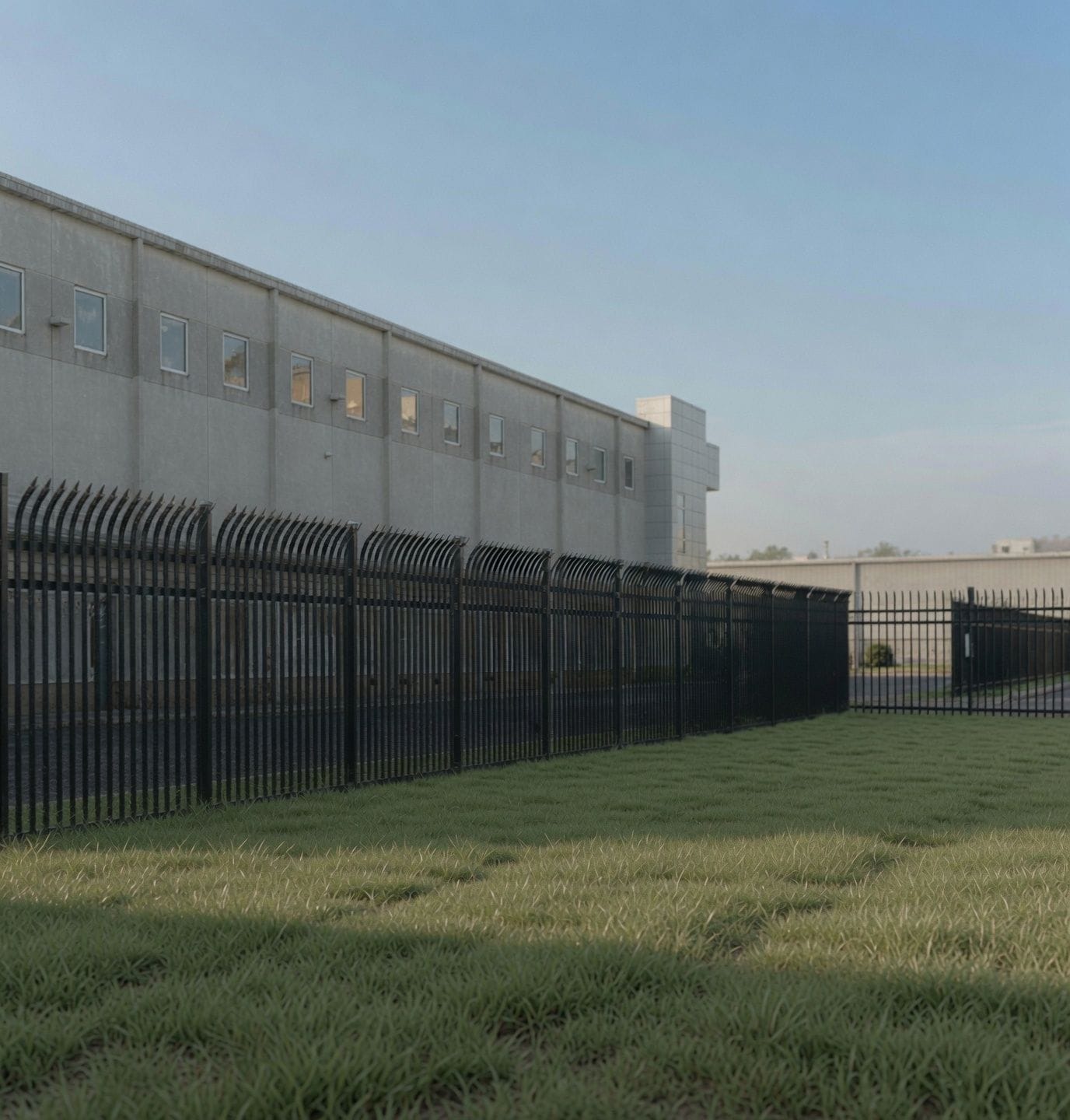

SecurePale on a data center perimeter - roll-formed W-profile pales, 100 percent bolted assembly.
30
YEAR DURABILITY & WEATHERING WARRANTY
1½"
ANTI-SCALE PALE SPACING AVAILABLE
M50
INTEGRATED ANTI-RAM RATING AVAILABLE
100%
BOLTED ASSEMBLY · NO FIELD WELDING

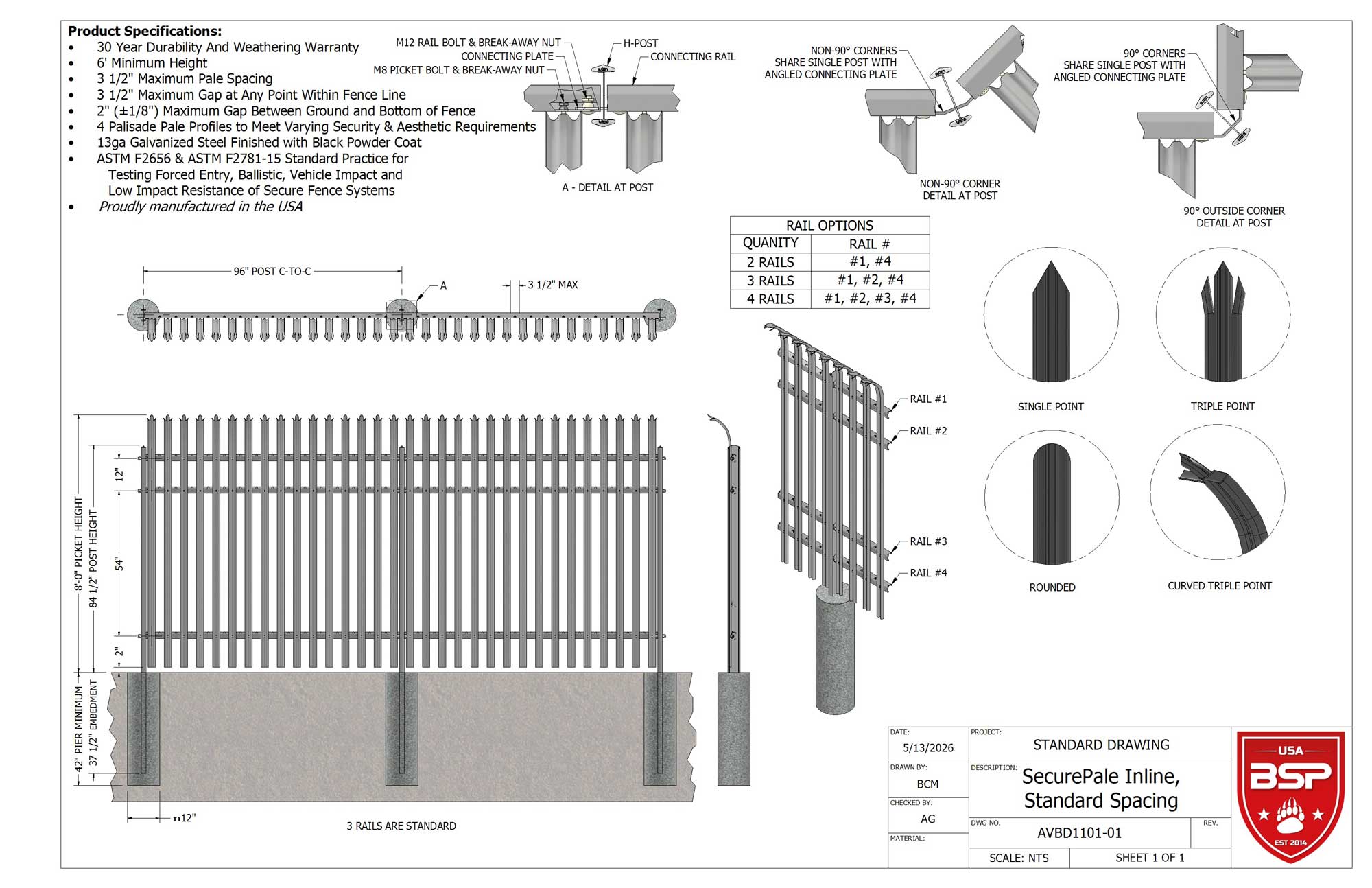

SYSTEM ANATOMY
SIX COMPONENTS. NO FIELD FABRICATION.
Horizontal Rail
Pre-punched rail; two, three or four rails per bay; three standard.
I-Beam Fence Post
Heavy intermediate/corner post, embedded.
Break-Away Nut & Security Fastener
M8 at each pale, M12 at each rail; tamper-resistant.
Joiner Bracket
Connects rail to post at line, corner and termination; no field welding.
Post Cap
Caps the post section against water ingress.
CONFIGURATIONS
PALISADE, WITH OPTIONAL INTEGRATED ANTI-RAM PROTECTION.
| Model / AVBD | Configuration / Threat | Penetration | Standard | Notes |
|---|---|---|---|---|
| AVBD 1101 | M30 / M50 | P1 / P2 | ASTM F2656 | SecurePale Palisade with optional integrated anti-ram protection. |
| AVBD 1102 | Bypass | SecurePale Bypass palisade. |
11
Family11 = SecurePale palisade
0
Threat Rating0 = base family digit. Integrated anti-ram rating is carried by the configuration, not this digit.
1 / 2
Configuration1 = SecurePale palisade - 2 = SecurePale Bypass
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 1101 is SecurePale (11), non-crash base family digit (0), base palisade configuration (1).
RATINGS & STANDARDS
SECURITY AND ANTI-RAM PERFORMANCE BY CONFIGURATION.
ASTM F2656PAS 68CWA 16221INTEGRATED CABLE BARRIER, DOD LISTEDBuy American

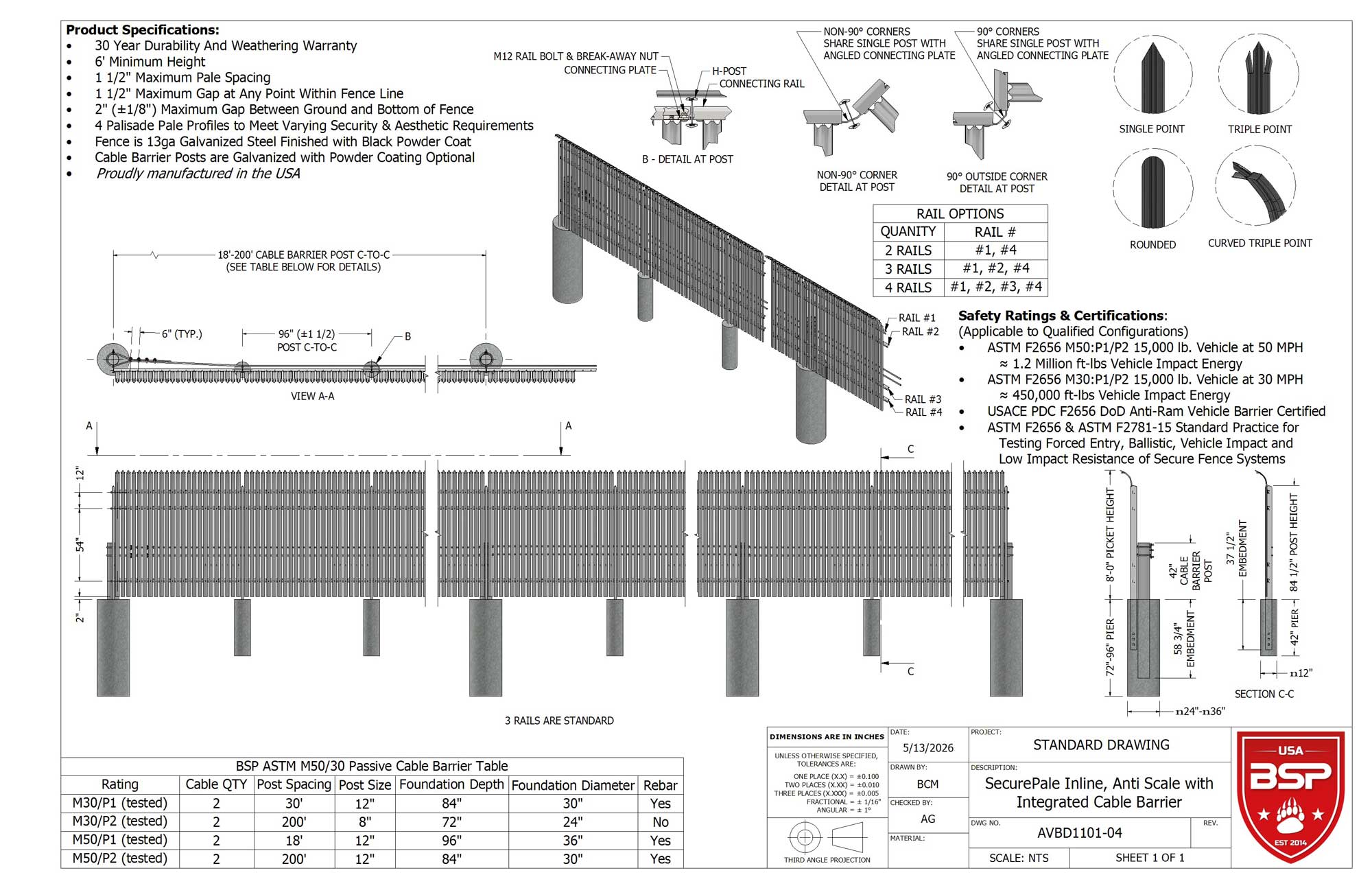

The brochure references ASTM F2656 for integrated anti-ram protection, plus PAS 68 and CWA 16221. The 2026 catalog lists AVBD 1101 SecurePale Palisade with M30/M50 P1/P2 capability and AVBD 1102 SecurePale Bypass. The dedicated brochure is centered on AVBD 1101.

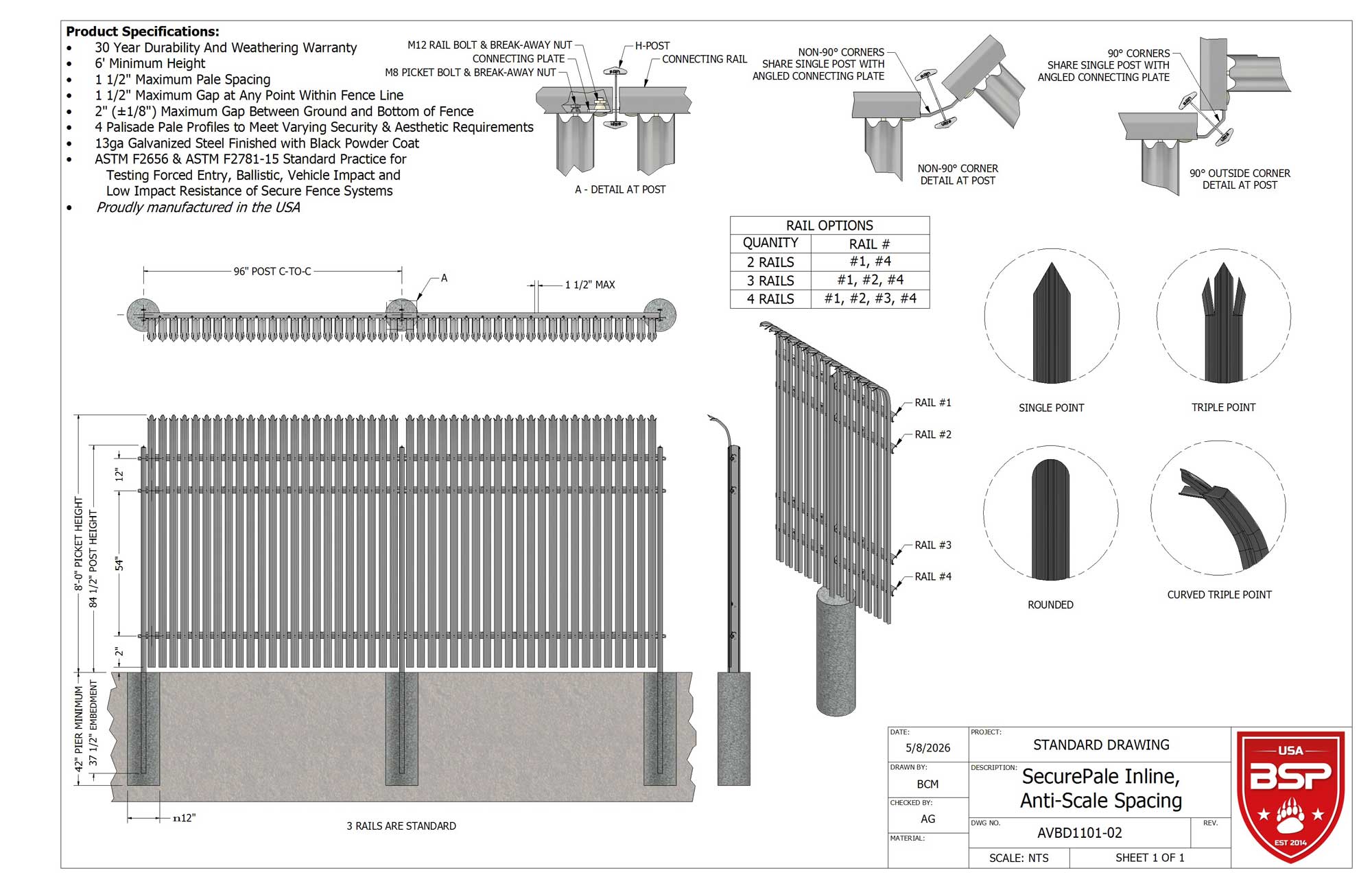

SPECIFICATIONS
AT A GLANCE.
- Pale
- Roll-formed W-profile steel
- Assembly
- 100% bolted; no field welding
- Pale spacing
- 1½ in anti-scale spacing available
- Post centers
- 96" typical per brochure narrative
- Fasteners
- Break-away security nuts; M8 pale / M12 rail
- Rails
- Two, three or four per bay; three standard
- Integrated anti-ram
- M30 / M50, P1 / P2 capability referenced
- Origin
- Made in the USA
Warranty
Manufacturer warranty coverage for this product.
Labor5 years
Materials / Coating30 years
Component / ScopeCoating and materials
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
Design with Confidence
Black Security Products publishes its design content through two libraries architects, engineers and specifiers already use. CADdetails carries CAD, BIM and 3D files with product specifications and technical documentation. ARCAT carries BSP CAD drawings and product catalogs by product family. Pull the files you need from either library and drop them straight into your project.
Explore this product on CADdetails and view this product on ARCAT to download the files and information you need to move your project forward with confidence.
