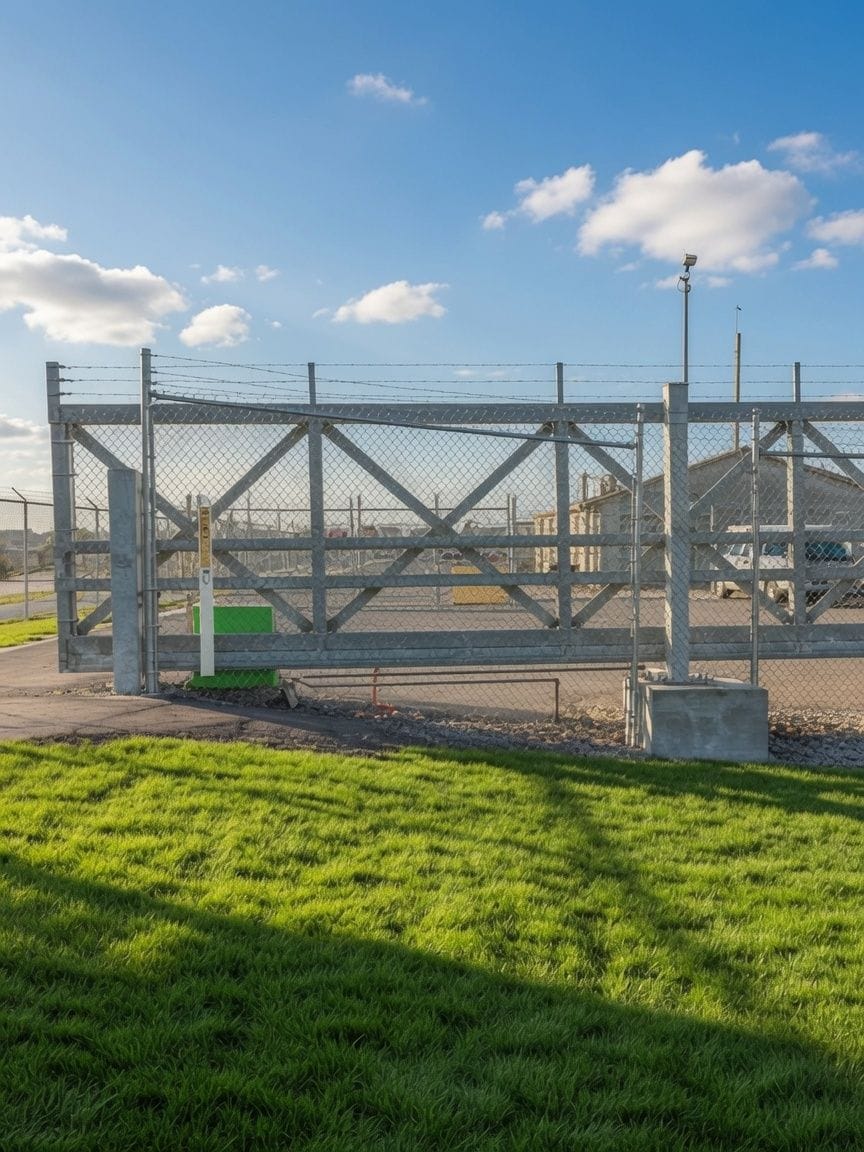

Gate panel
Trussed structural frame; infill selected to match the perimeter.
ACTIVE VEHICLE BARRIERS · AVBD 200 SERIES
AVBD 200 SeriesPRODUCT DATA

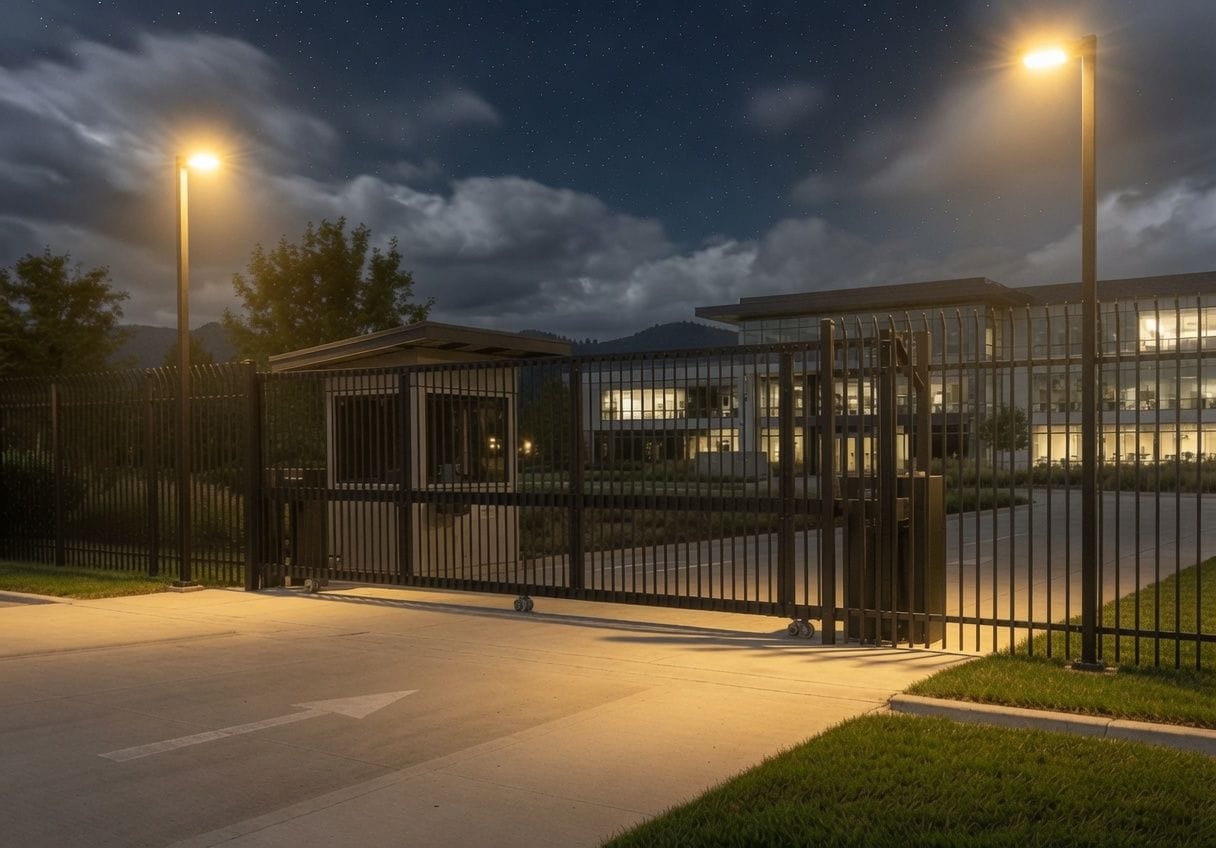

Anti-Ram Crash Gates
SLIDE AND SWING · TWELVE TO THIRTY FEET
Crash-rated gates built around the connection, not the panel. Slide gates crash tested to ASTM F2656-23 at M50 P1 and M30 P1; swing gates built to a licensed crash-tested design. A three-inch steel pin secures both ends.
ASTM F2656-23 · M50 P112′–30′ CLEAR10-YEAR WARRANTYMADE IN THE USA
THE OPENING
THE GATE IS THE ACCESS IN YOUR FENCE.
A BSP crash gate is designed at the connection. A three-inch 4140 steel pin passes through stacked plates at each end. The panel is what the driver sees; the pin is what stops the vehicle.

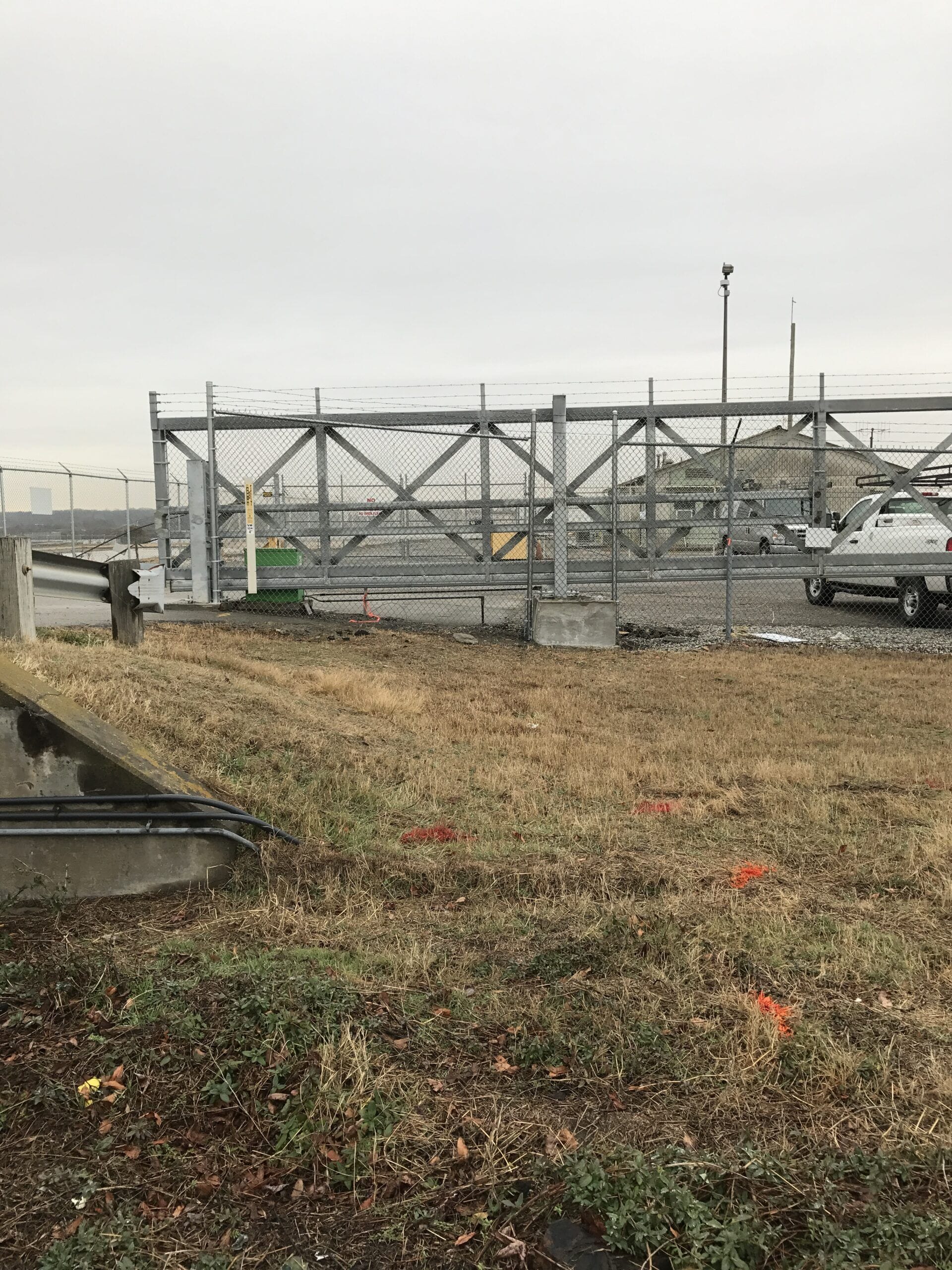

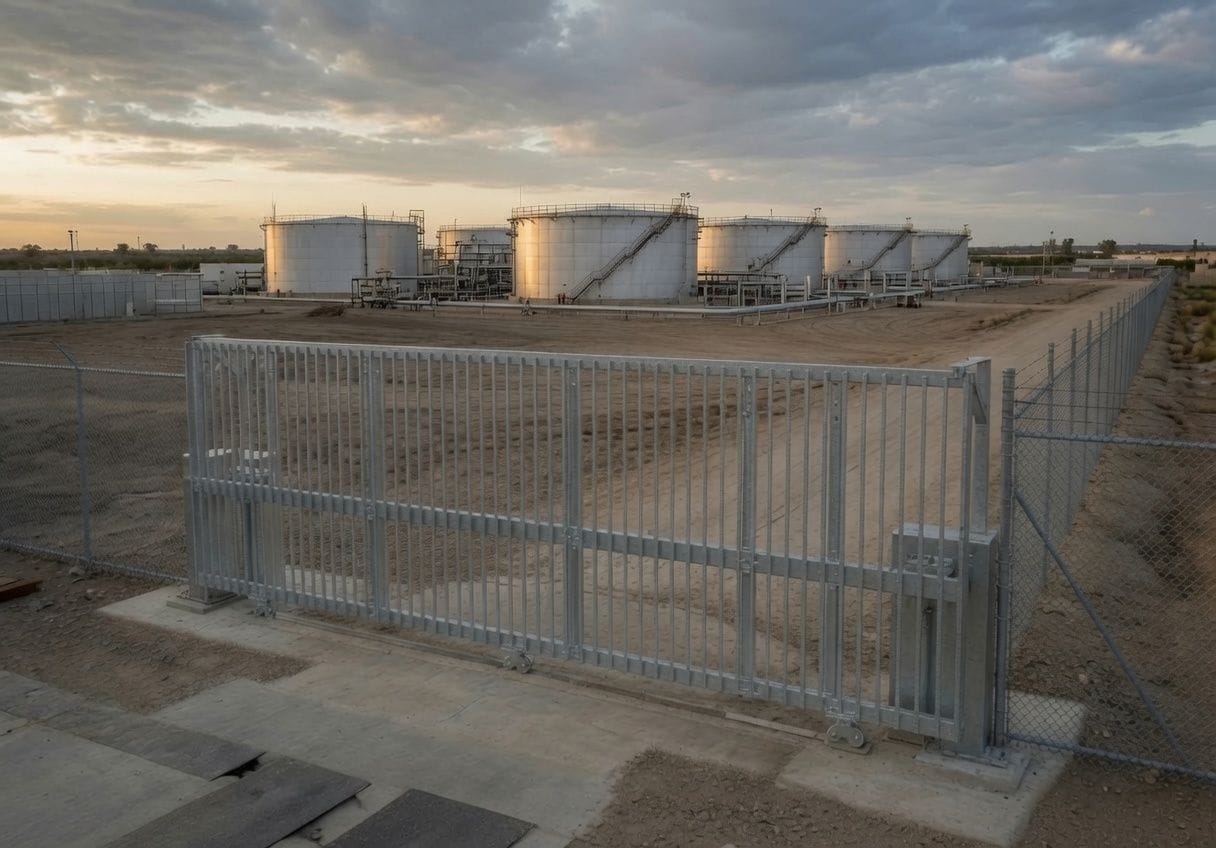

All four gates are offered from 12 ft to 30 ft clear openings, with chain link, ornamental picket, palisade or welded mesh infill. The M50 P1 and M30 P1 slide gates were crash tested on BSP articles to ASTM F2656-23; swing gates are manufactured under license to a crash-tested design.
DIFFERENTIATOR

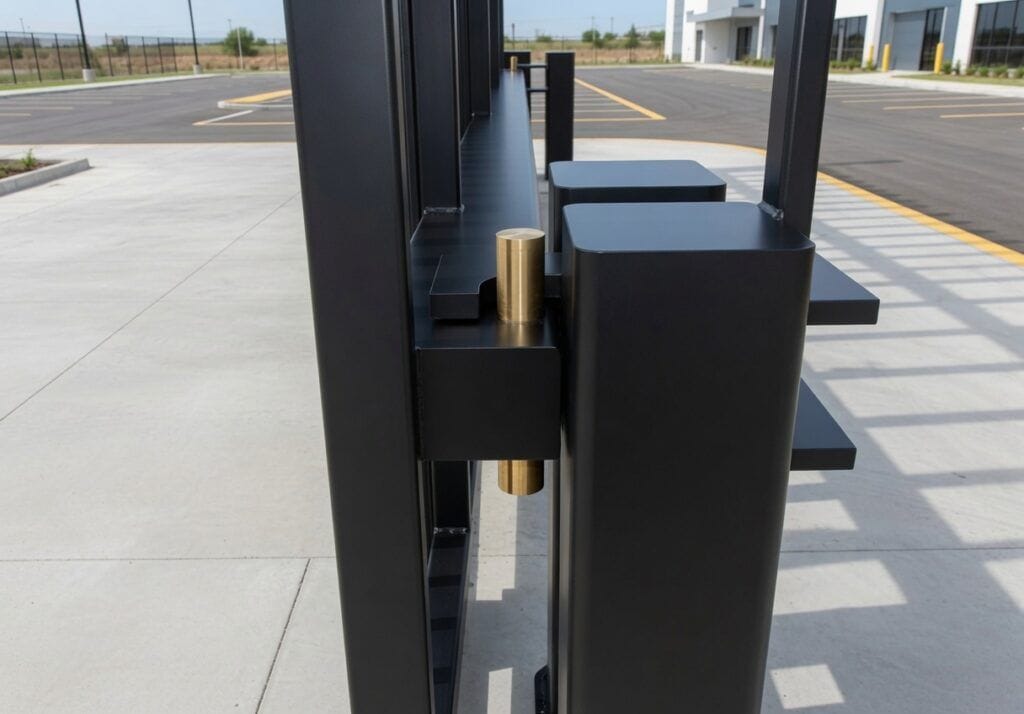

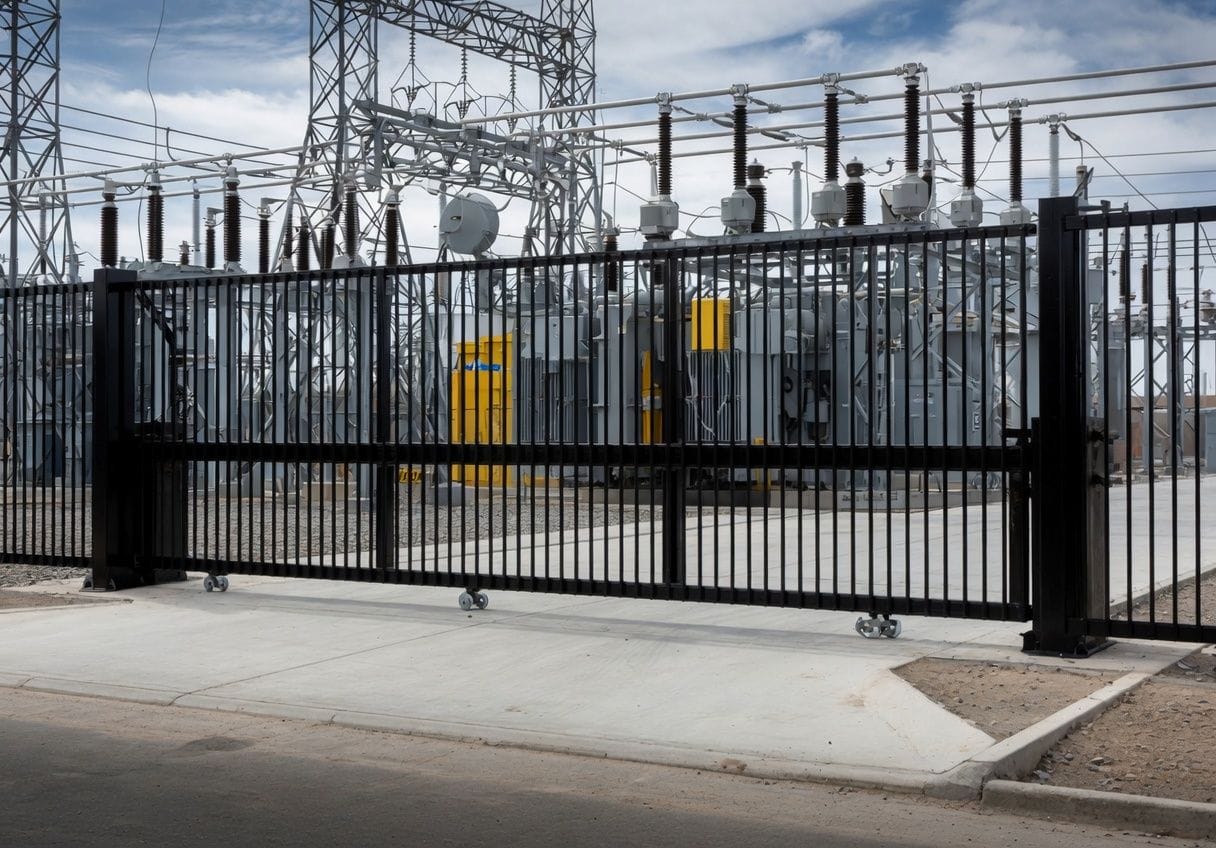

Both ends pin. The gate is secured at the latch post and at the hinge post.
A 3.00 in 4140 steel pin at each end carries impact load into engineered foundations rather than into the operator.

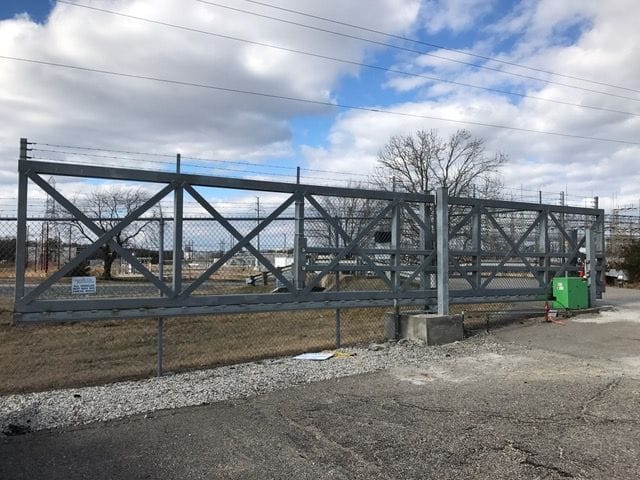

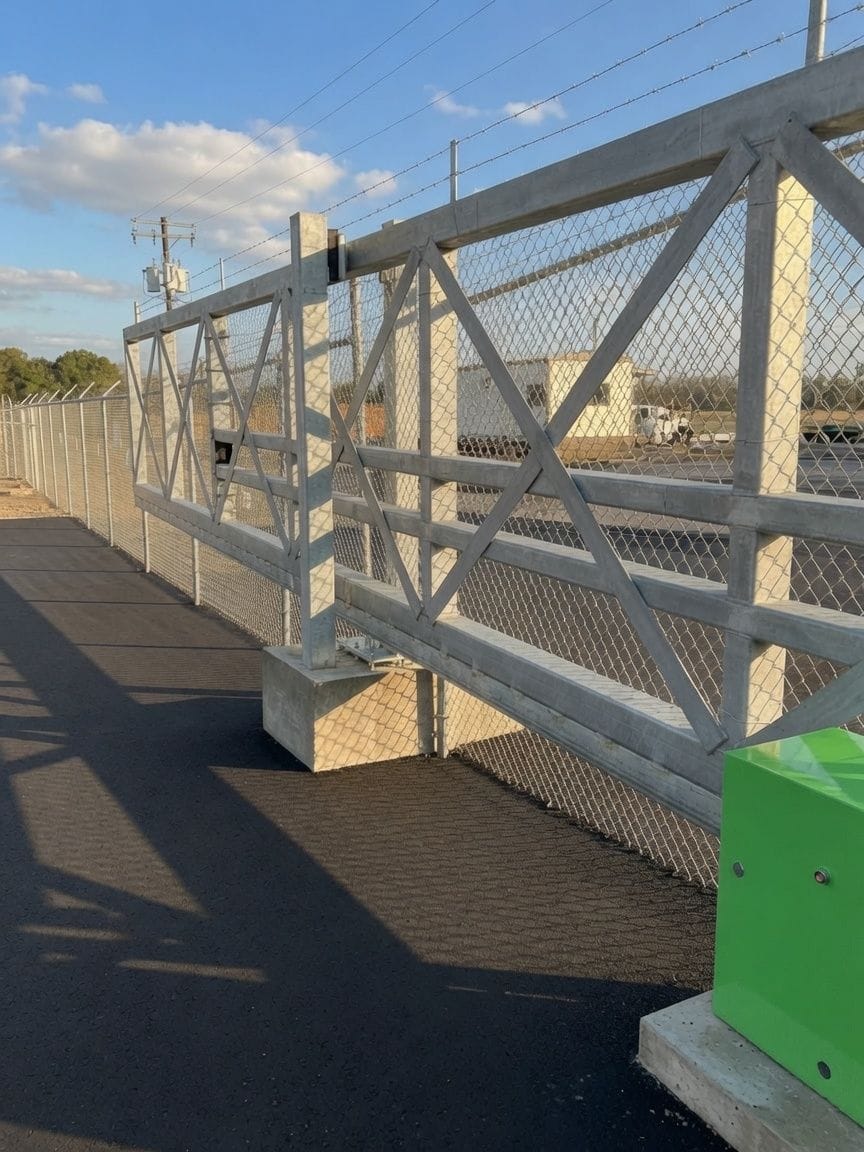

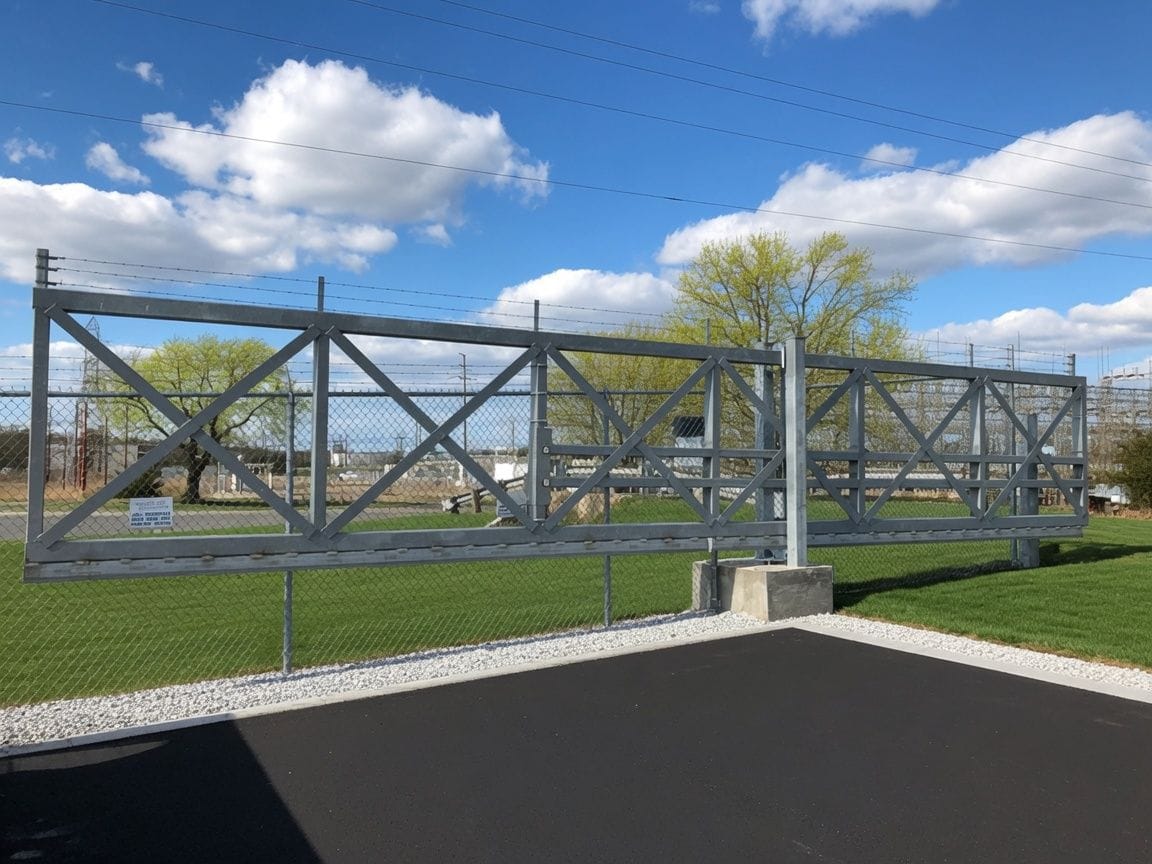

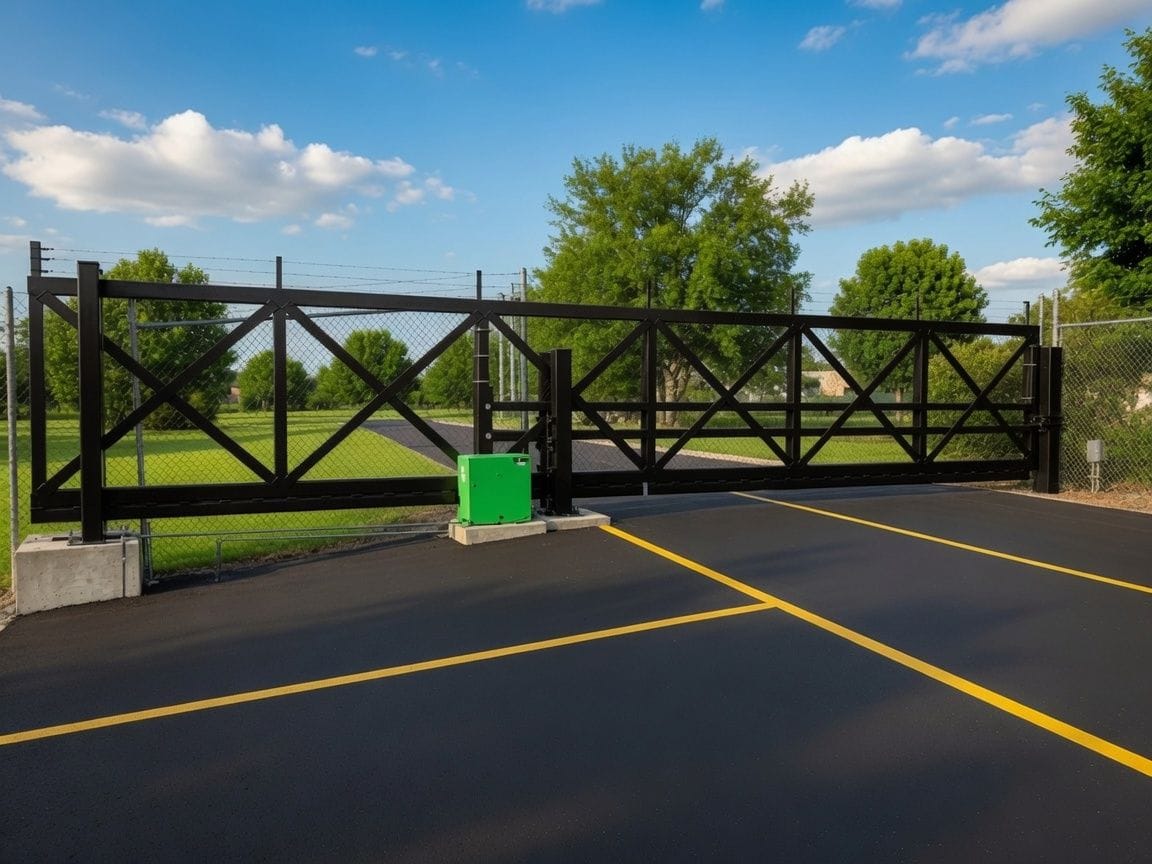

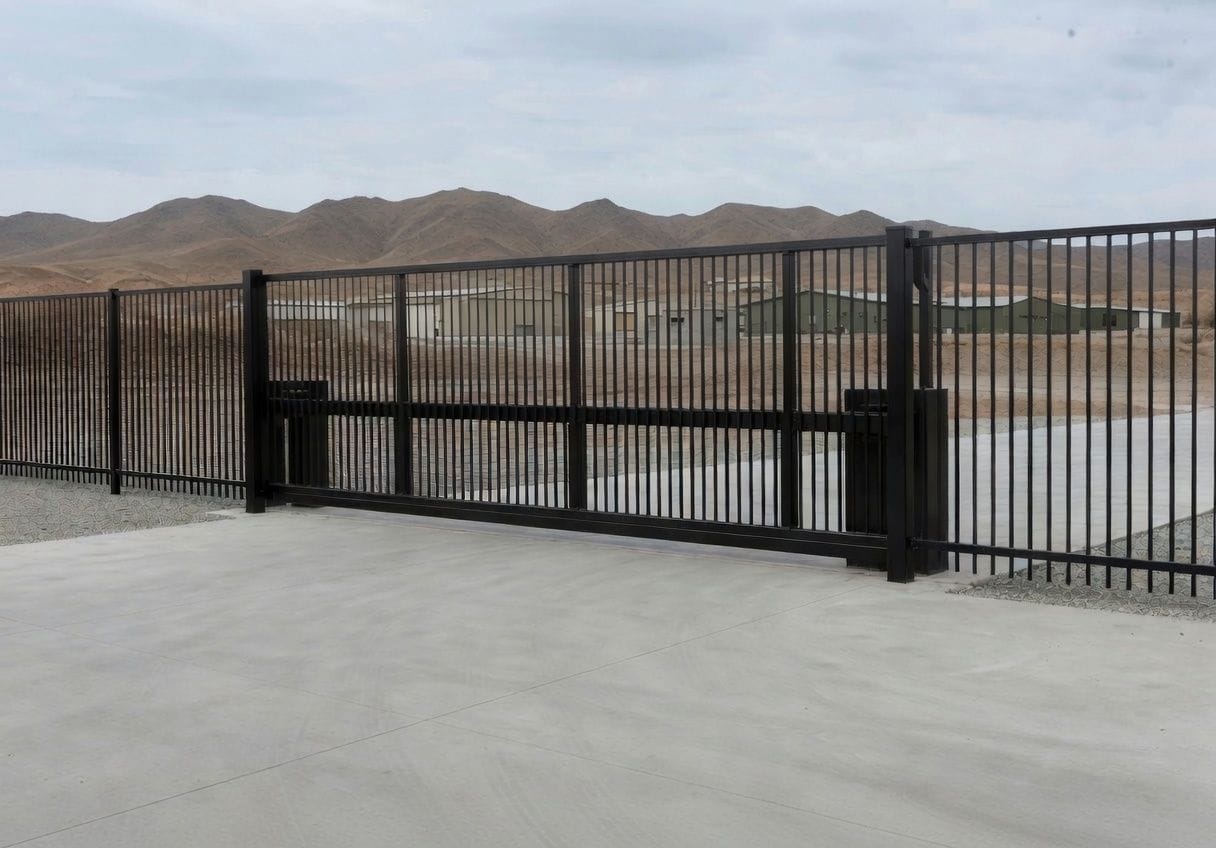

AVBD 250 slide gate at its tested 20 ft 8 in clear opening.
12′–30′
CLEAR OPENINGS OFFERED
0.65′
M50 SLIDE DYNAMIC PENETRATION
2 ft/s
HIGH-SPEED OPTION
10
YEAR GATE WARRANTY

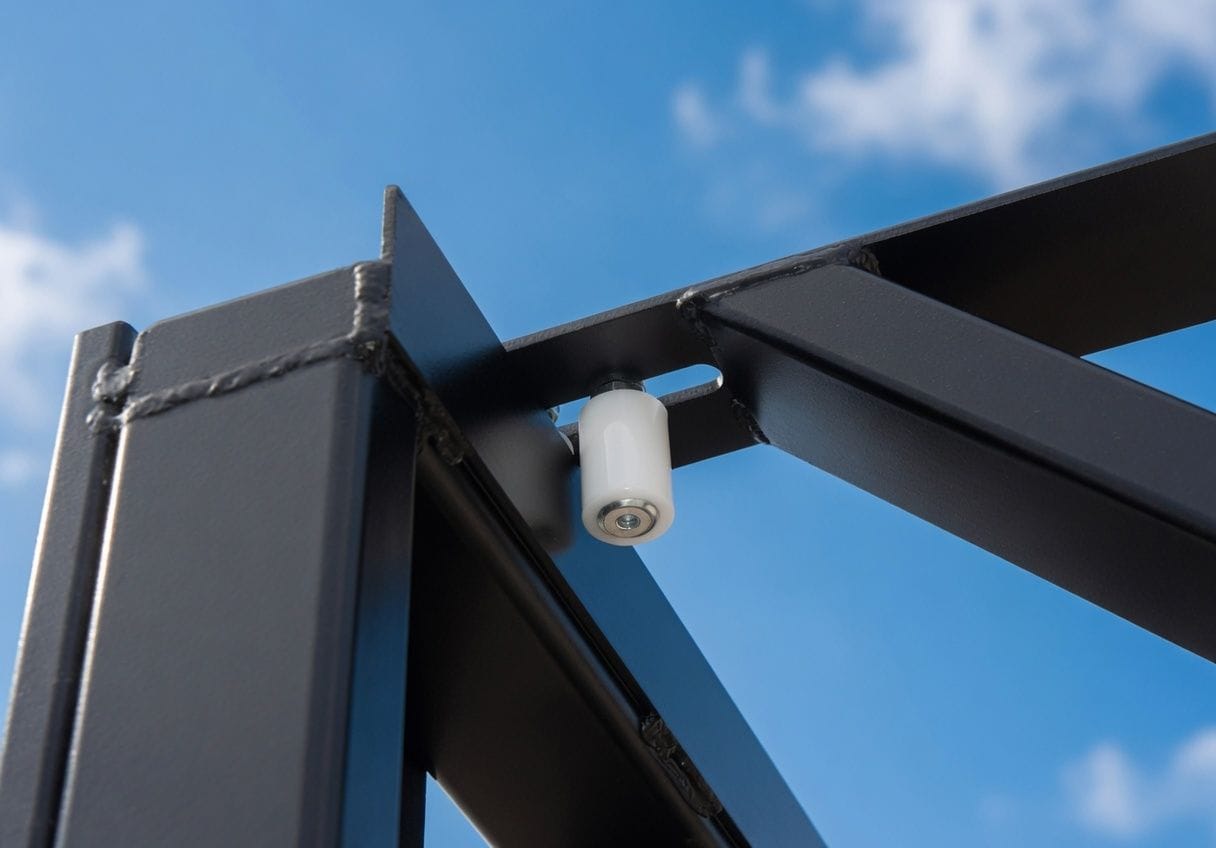

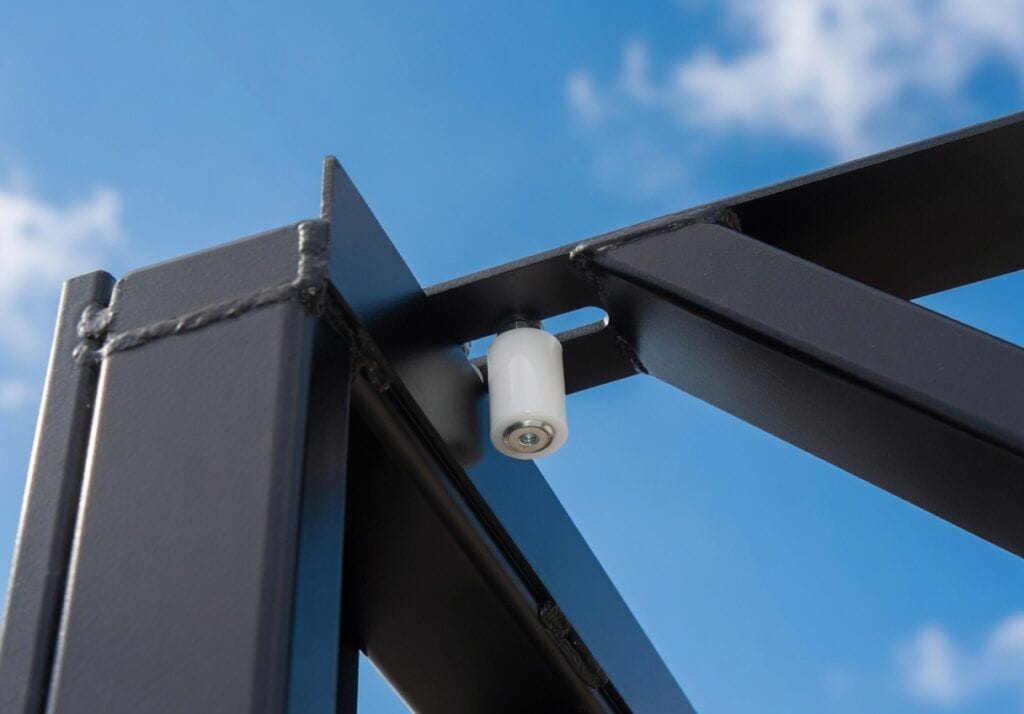

SYSTEM ANATOMY
BUILT AROUND THE CONNECTION.

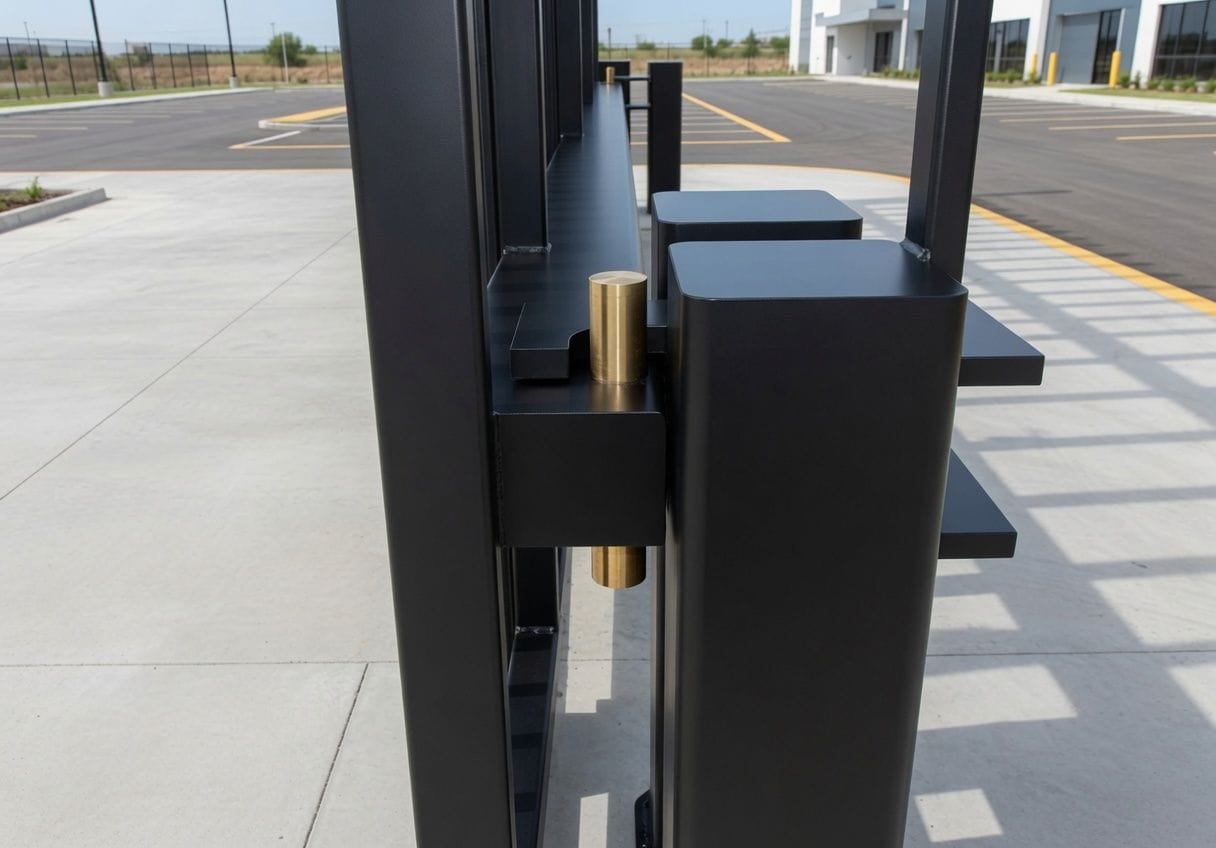

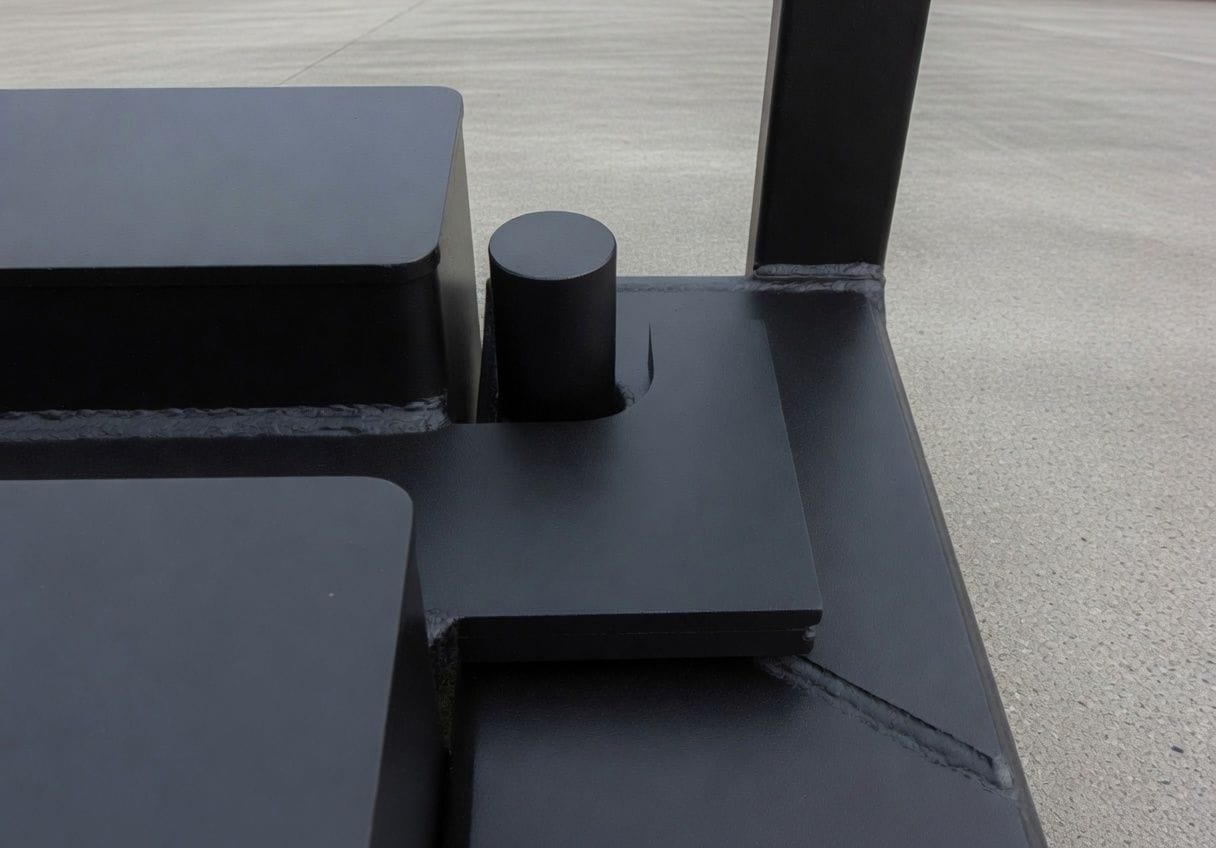

Locking pin
3.00" diameter 4140 steel pin, both ends.

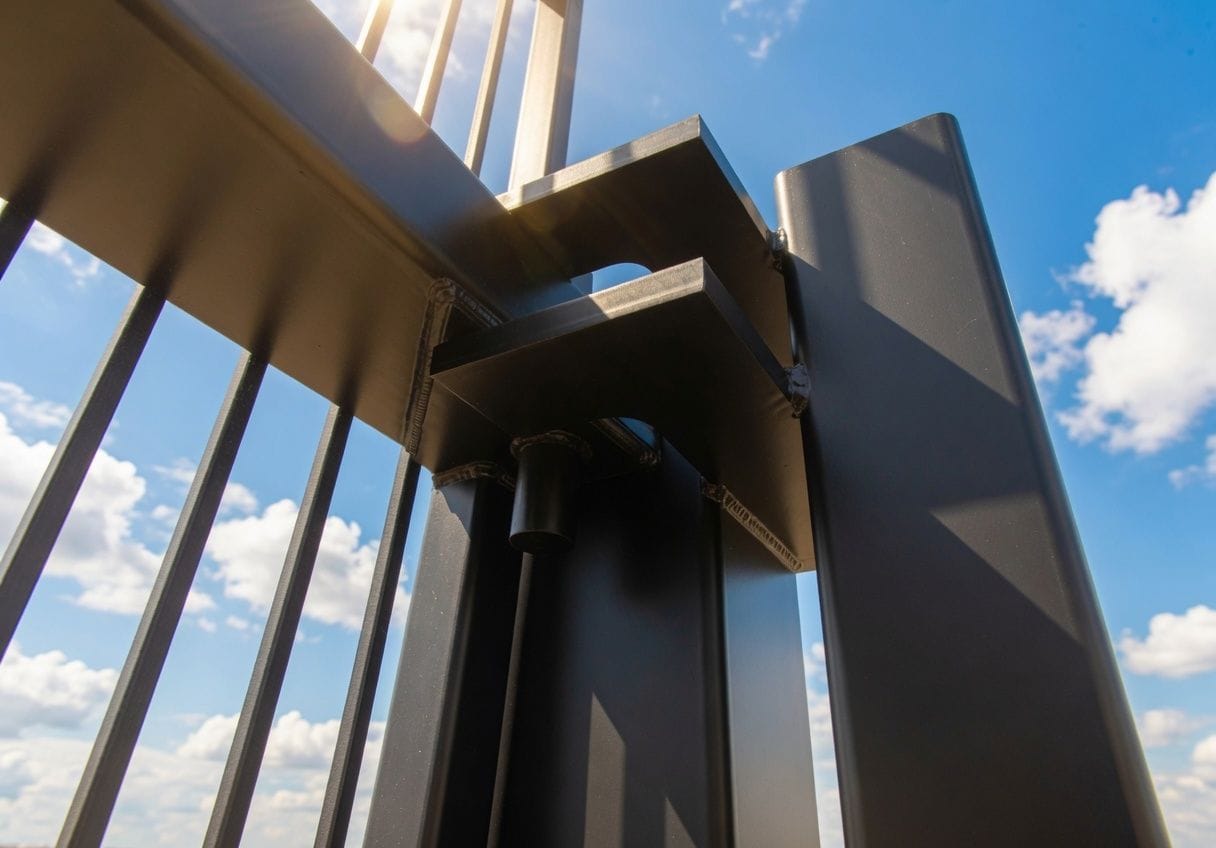

Plate stack
½ / ¾ / ½ in ASTM A36 plates, bored 3.06 in.

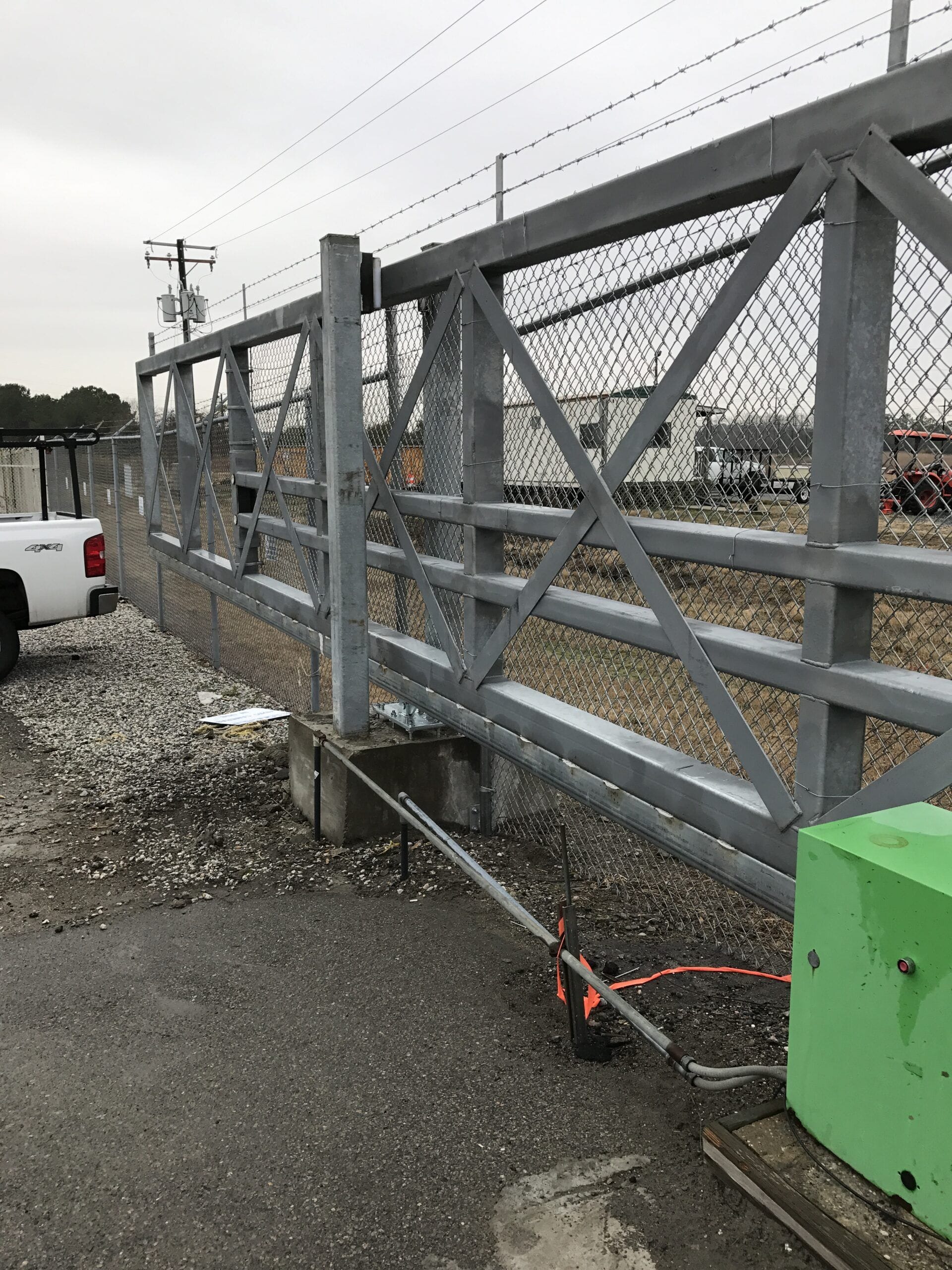

Gate posts
12 × 12 × ⅜ in ASTM A500 tube with engineered reinforced-concrete foundations.
CONFIGURATIONS
FOUR GATES. THE SAME IDEA.
| Model / AVBD | Threat | Penetration | Standard | Test Lab | Notes |
|---|---|---|---|---|---|
| AVBD 230 | M30 | P1 | ASTM F2656-23 | Applus IDIADA / KARCO | Slide gate; crash tested on BSP article; tested 24′ clear opening. |
| AVBD 231 | M30 | P1 | ASTM F2656 | Swing gate; manufactured under license to a crash-tested design. | |
| AVBD 250 | M50 | P1 | ASTM F2656-23 | Applus IDIADA / KARCO | Slide gate; crash tested on BSP article; tested 20′-8″ clear opening. |
| AVBD 251 | M50 | P1 | ASTM F2656 | Swing gate; manufactured under license to a crash-tested design. |
2
Family2 = Gate
1 / 3 / 5
Threat Rating1 = non-crash access control - 3 = M30 - 5 = M50
0 / 1
Configuration0 = slide - 1 = swing
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 250 is a gate (2), rated M50 (5), in the slide configuration (0).
VERIFIED, NOT SELF-DECLARED
TWO BSP SLIDE GATES. TWO FULL-SCALE CRASH TESTS.
ASTM F2656-23ASTM F2656UL 325 / ASTM F2200Buy American

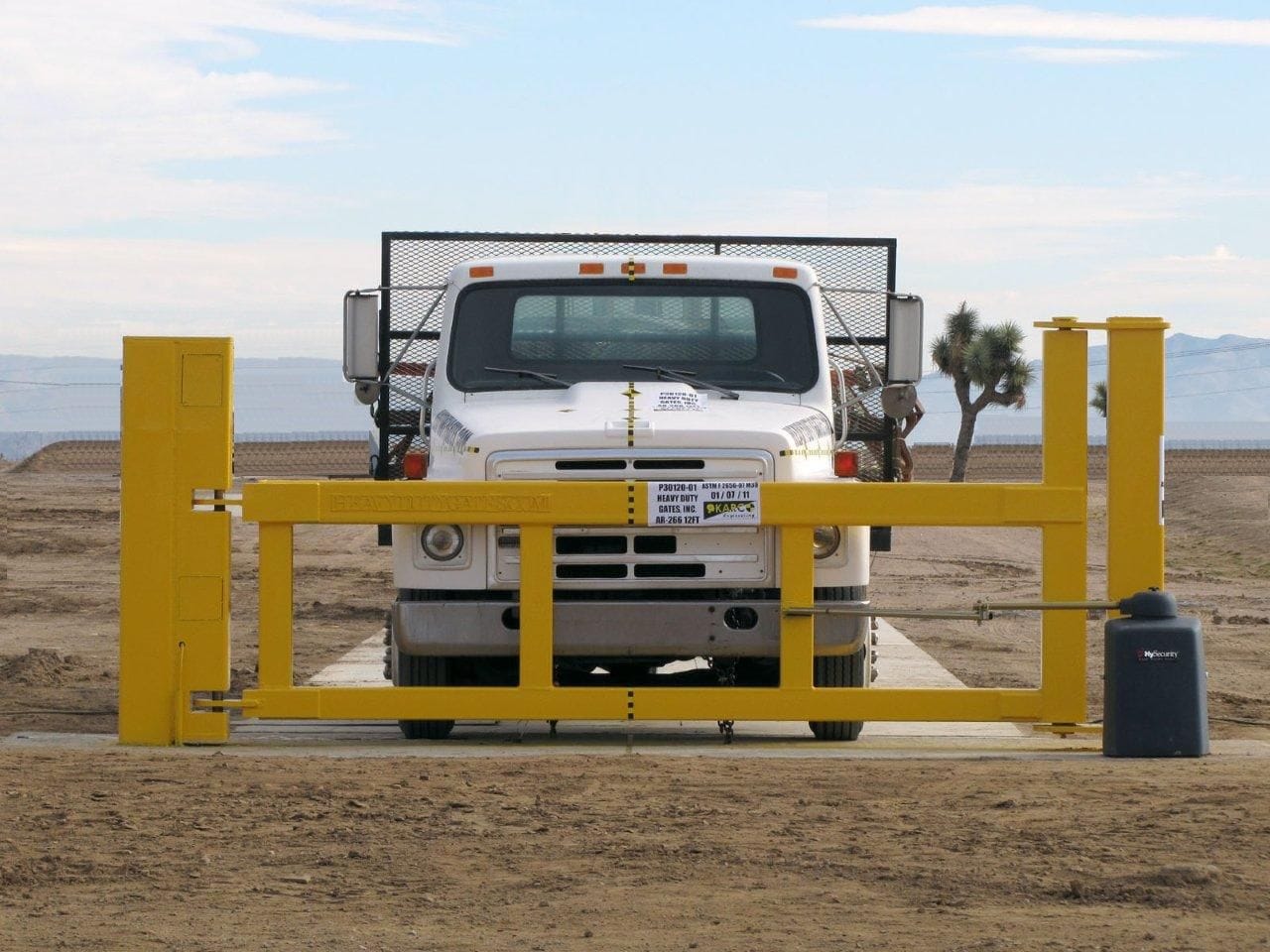

AVBD 250 M50 Slide Gate was crash tested on 28 August 2025 at Applus IDIADA, report TR-P45159-01-NC, achieving M50 P1 at a tested clear opening of 20 ft 8 in. AVBD 230 M30 Slide Gate was crash tested on 28 March 2024, report TR-P44098-01, achieving M30 P1 at a 24 ft clear opening. Swing gates AVBD 251 and 231 are manufactured under license to a crash-tested design.
SPECIFICATIONS
AT A GLANCE.
- Clear opening
- 12 ft to 30 ft, all models
- Tested opening — M50 slide
- 20 ft 8 in
- Tested opening — M30 slide
- 24 ft
- Standard speed
- 1 ft per second
- High-speed option
- 2 ft per second
- Securing
- Steel pin, both ends
- Post tubes
- 12 × 12 × ⅜ in, ASTM A500
- Locking pin
- 4140 steel, 3.00 in dia × 17.00 in
- Concrete
- 4,000 PSI minimum
- Operator warranty
- Excluded — operator by others
Warranty
Manufacturer warranty coverage for this product.
Parts10 years
Labor10 years
Warranty takes effect only upon payment in full. Maintenance must be performed per the applicable O&M manual, with records produced upon request. Impact damage is not a defect.
Design with Confidence
Black Security Products is proud to partner with CADdetails to provide architects, engineers, consultants, and security professionals with direct access to high-quality CAD, BIM, and 3D design files, along with product specifications and technical documentation. Easily incorporate BSP perimeter security solutions into your next project with accurate, up-to-date resources designed to streamline planning, specification, and design workflows.
Explore our CADdetails library to download the files and information you need to move your project forward with confidence.
