FRP post
Extruded composite section; set in a 12" drilled pier, 36" below grade.
SECURITY FENCING · AVBD 1200
AVBD 1200PRODUCT DATA
ENC Security Fence: Non Conductive FRP Fencing for Substations and Energized Yards
ELECTRICALLY NON-CONDUCTIVE FRP PERIMETER SYSTEM
A security fence that carries no current, corrodes in no climate, and lets radar and radio pass through it. Every production batch is flash-over tested to a minimum of 138,000 volts. Forced-entry tested to ASTM F2781-15.
FLASH-OVER TESTED, EVERY BATCHASTM F2781-15RF TRANSPARENTMADE IN THE USA

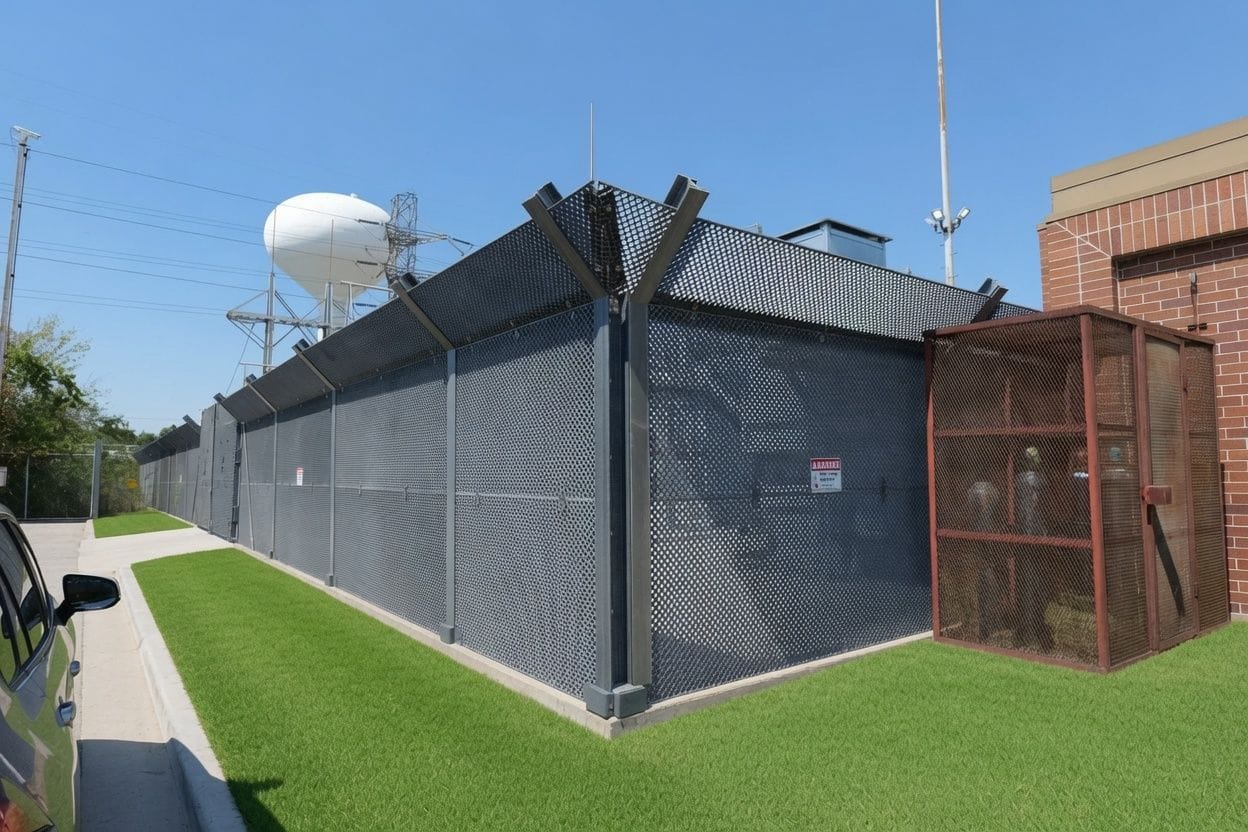

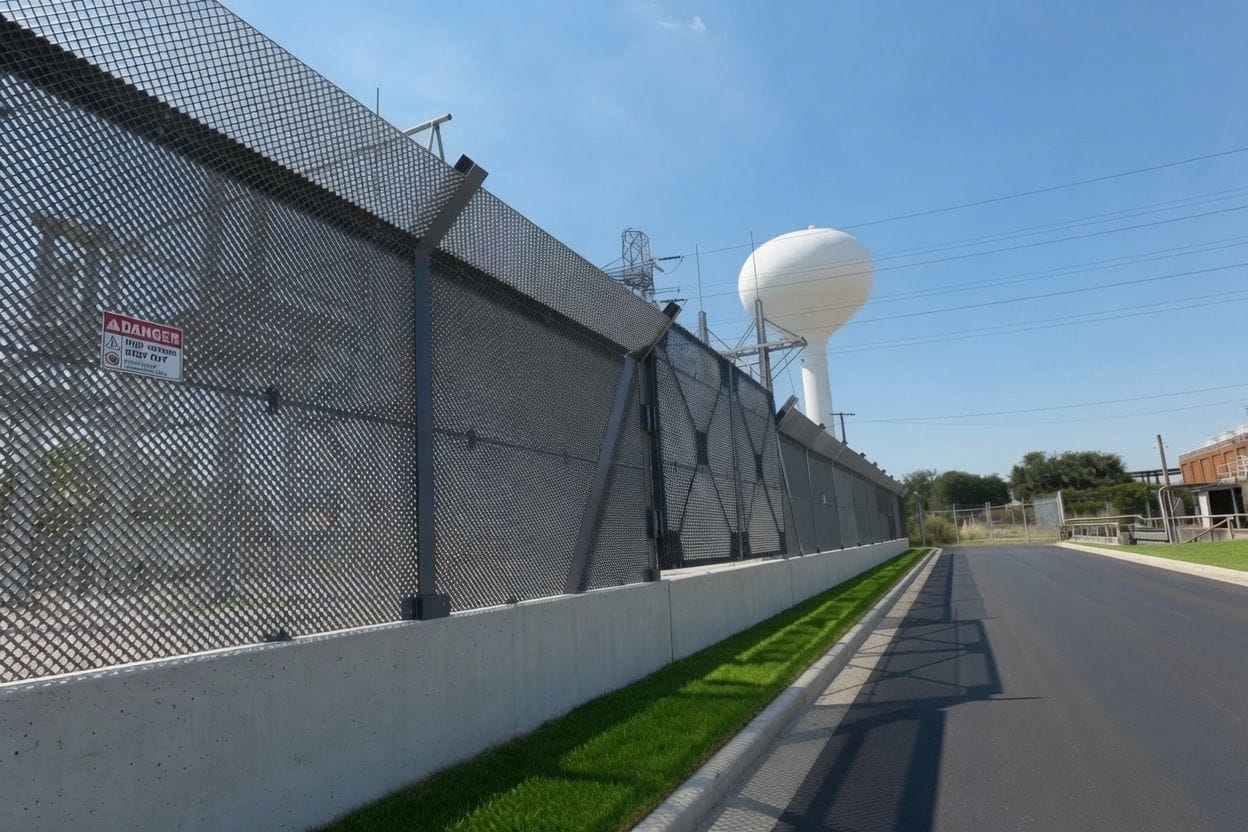

THE CASE FOR NON-CONDUCTIVE
STEEL IS A CONDUCTOR. THAT'S THE PROBLEM.
Inside a substation fence line, a steel fence becomes part of the electrical environment and must be bonded, grounded and inspected. An FRP fence is not part of that circuit. ENC uses non-conductive FRP posts and panels, with every production batch flash-over tested by a certified laboratory.
The system also carries independently measured forced-entry performance under ASTM F2781-15 and is engineered for project-specific wind loading.
TESTED ON EVERY BATCH
138,000 V MINIMUM FLASH-OVER TEST.
Batch-specific test results are available for the material supplied.

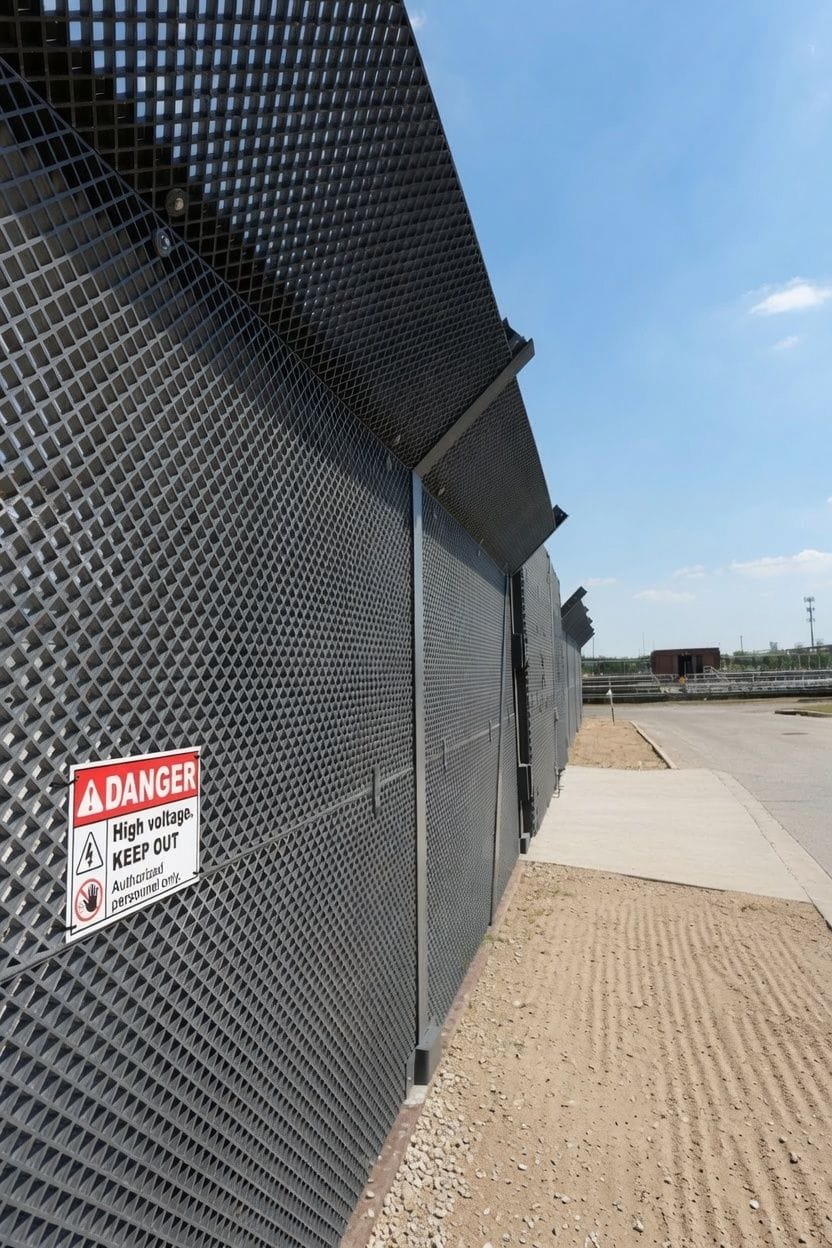

AVBD 1200 FRP fence inside an energized yard - non-conductive, no ground-grid bonding required by the material.
138kV
MINIMUM FLASH-OVER · EVERY BATCH
650kV
MAXIMUM TESTED
0
GROUND-GRID BONDING REQUIRED BY MATERIAL
0
HOT WORK OR CRANE PERMITS FOR STANDARD SYSTEM

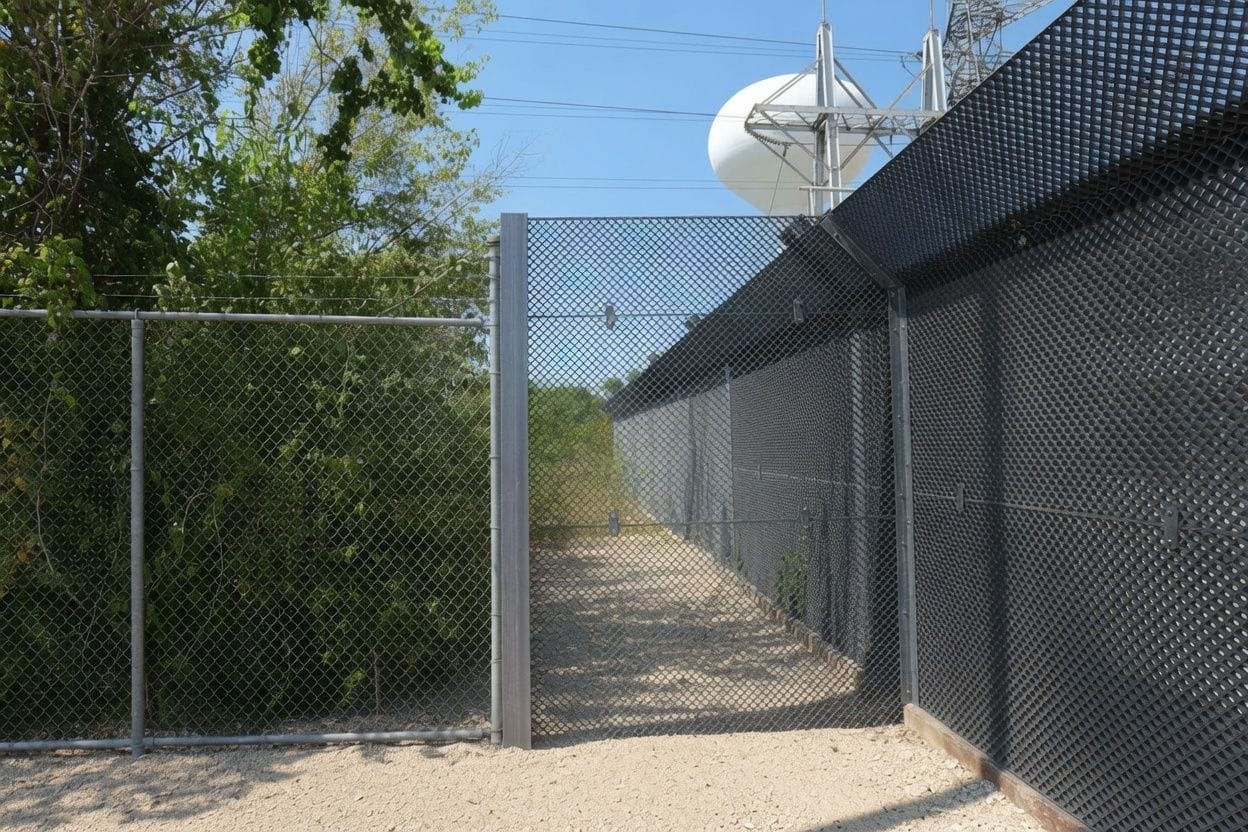

SYSTEM ANATOMY
POSTS, PANELS, AND NOTHING THAT RUSTS.

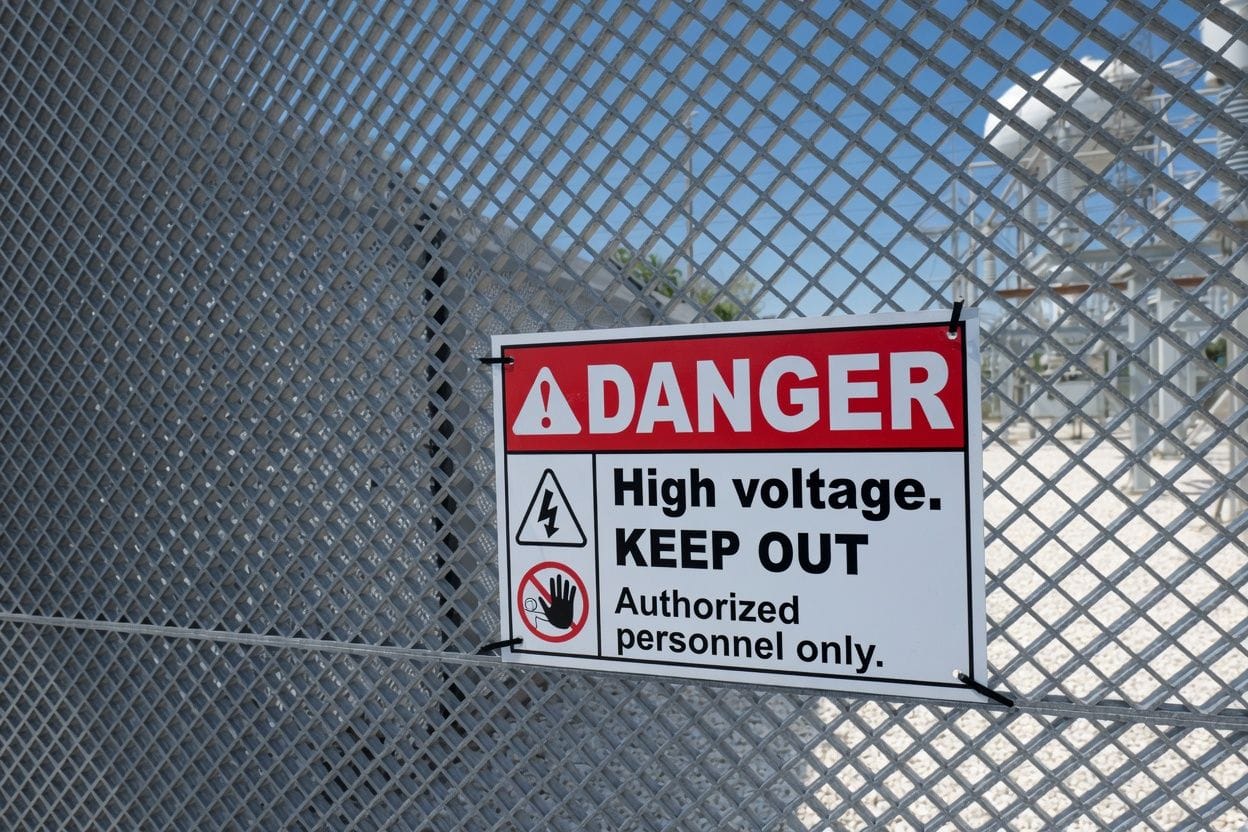

Molded panel
1½" square mesh, 1" thick, dark gray; standard 4′×8′ and 4′×12′.
Clamp blocks
Trap panel against both faces of the post with threaded fasteners.
316 SS hardware
Stainless throughout, mounted on secure side.

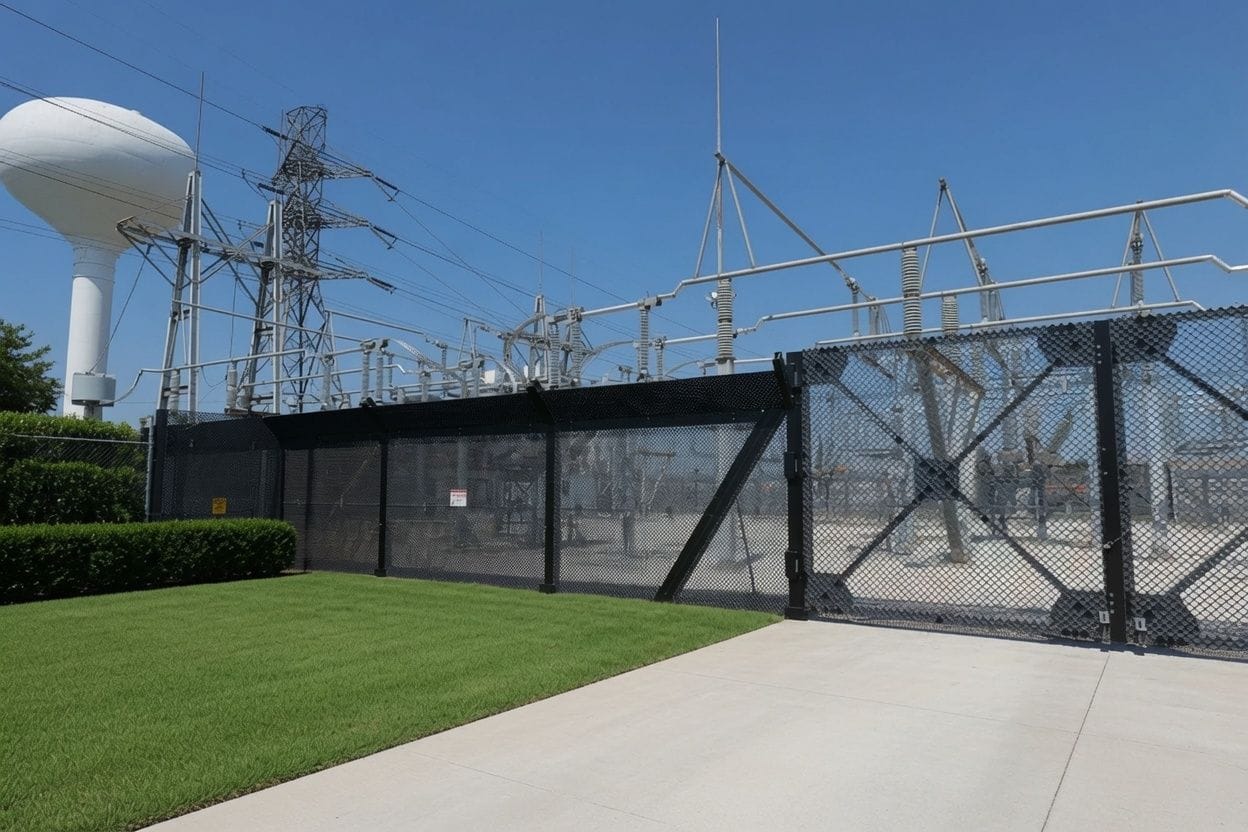

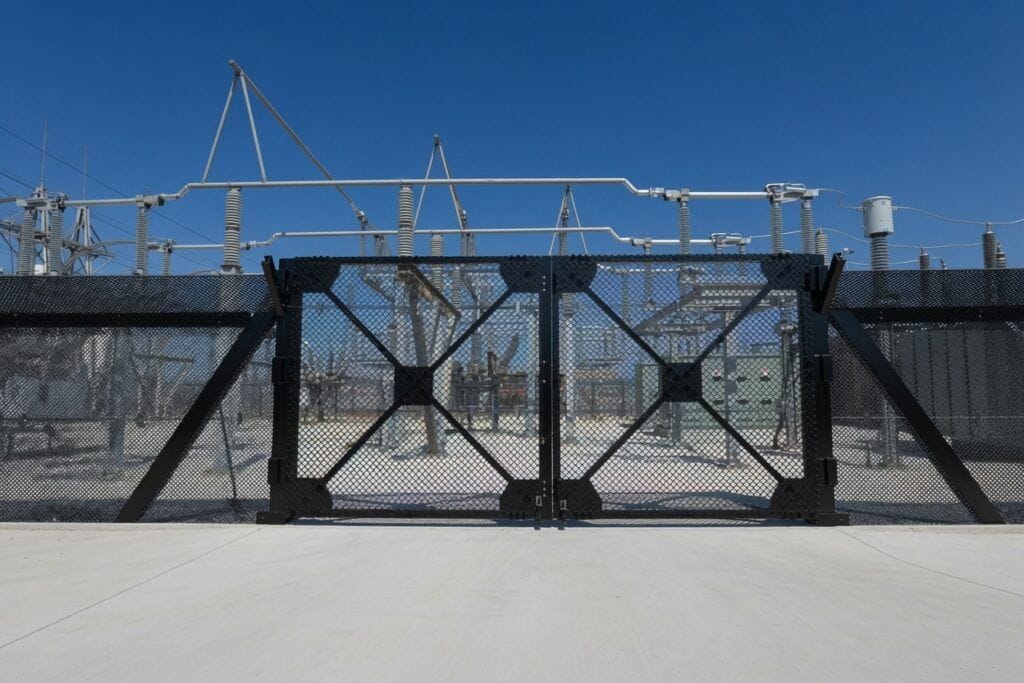

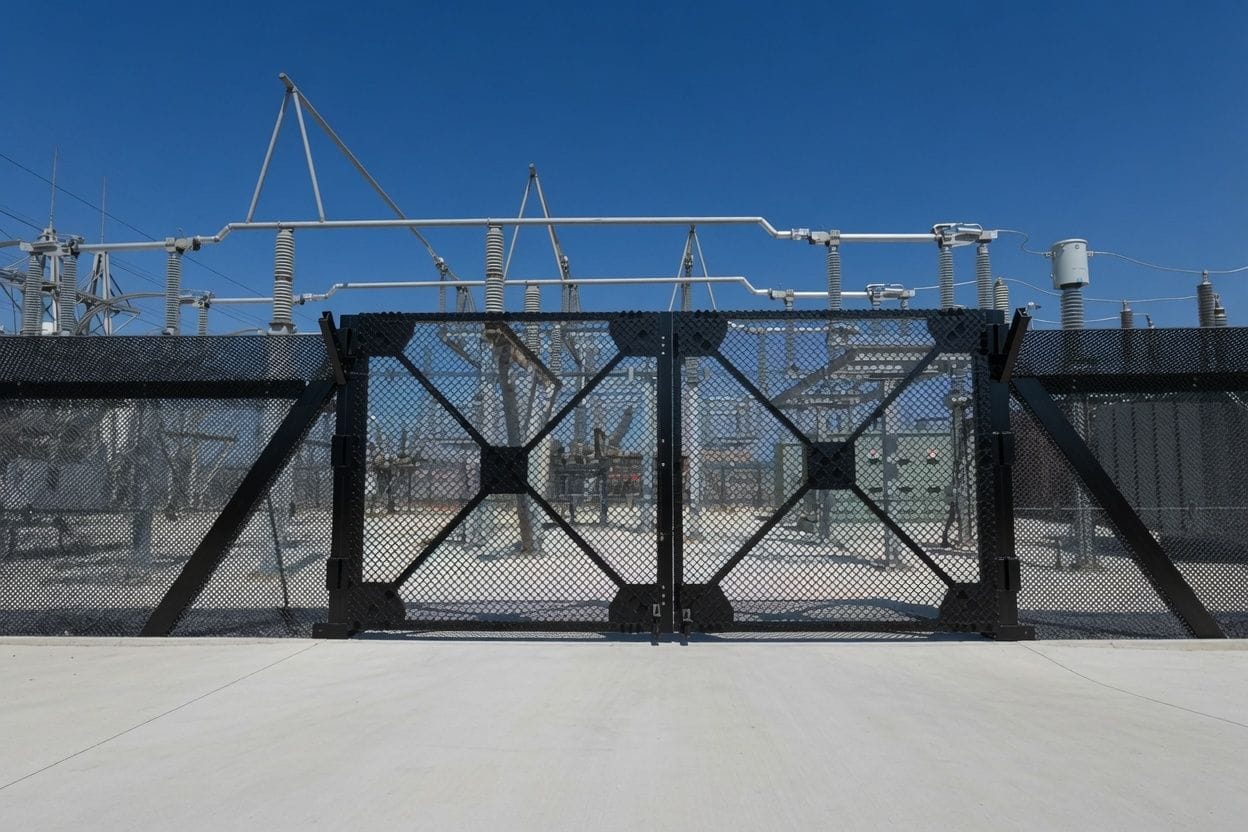

CONFIGURATION & GATES
NON-CONDUCTIVE BY DESIGN.
| Model / AVBD | Configuration / Threat | Standard | Notes |
|---|---|---|---|
| AVBD 1200 | Non-conductive | ASTM F2781-15 | ENC Security Fence; FRP non-conductive perimeter. |
| AVBD 1300 | Ballistic | UL 752 Levels 1–8 | Ballistic option is a separate catalog product; included here only as related option, not as AVBD 1200 rating. |
12
Family12 = ENC composite / expanded metal
0
Threat Rating0 = non-conductive, non-crash
0
ConfigurationBase configuration. See Configurations for related options.
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 1200 is the ENC composite fence family (12), non-conductive rather than crash rated (0), base configuration (0).
NON-CONDUCTIVITY VERIFIED
TESTED ON EVERY BATCH. NOT ONCE.
ASTM F2781-15Flash-over voltage testASCE 7RF transparentBuy American
Certified laboratories perform flash-over voltage testing on every production batch, to a minimum of 138,000 V; the brochure cites a maximum tested value of 650,000 V. Forced-entry testing was performed by Southwest Research Institute to ASTM F2781-15 at the aggressive threat level. Batch results and the SwRI report are available for submittal.
SPECIFICATIONS
AT A GLANCE.
- Material
- FRP posts and panels; electrically non-conductive, non-magnetic, fire retardant
- Flash-over test
- Every batch; 138,000 V minimum
- Maximum tested flash-over
- 650,000 V
- Forced-entry standard
- ASTM F2781-15. Rating designation A2.2; Tested result of 2.2 minutes.
- Panel mesh
- 1½" square
- Panel thickness
- 1"
- Standard height
- 96" above grade
- Post C/C
- 97.5" ±1.5
- Pier
- 12" dia × 42"
- Hardware
- 316 stainless steel, secure side
- Welding
- None
- Wind engineering
- ASCE 7, project-specific
- CSI section
- 32 31 00
- Origin
- Made in the USA
Warranty
Manufacturer warranty coverage for this product.
QualifierNo warranty certificate yet
Design with Confidence
Black Security Products publishes its design content through two libraries architects, engineers and specifiers already use. CADdetails carries CAD, BIM and 3D files with product specifications and technical documentation. ARCAT carries BSP CAD drawings and product catalogs by product family. Pull the files you need from either library and drop them straight into your project.
Explore this product on CADdetails and view this product on ARCAT to download the files and information you need to move your project forward with confidence.
