Cable Barrier Design Explained: Structure, Strength, and Safety

Cable barriers have become a crucial safety feature on highways worldwide. These barriers are not just physical obstructions; they are engineered systems designed to save lives, reduce crash severity, and prevent vehicles from crossing into oncoming lanes. Unlike rigid guardrails or concrete barriers, cable barriers on highways flex and absorb energy, allowing vehicles to decelerate gradually, reducing the risk of rollover or serious injury.

Understanding the design, strength, and safety benefits of cable barriers helps road engineers, planners, and safety advocates appreciate why these systems are widely implemented. This guide provides a comprehensive overview of their components, structural performance, installation considerations, maintenance practices, and comparisons with alternative roadside safety solutions.

Cable Barriers as a Flexible Road Safety Solution

Cable barriers are a flexible and highly effective road safety solution designed to mitigate high-speed impacts while reducing the severity of collisions. When a vehicle strikes a cable barrier, the impact energy is absorbed and distributed through the cables and supporting posts. This process allows for gradual deceleration, which helps reduce the forces experienced by vehicle occupants and lowers the likelihood of serious injuries or fatalities.

Unlike rigid concrete or steel guardrails, cable barriers are designed to deform upon impact, guiding and redirecting vehicles instead of stopping them abruptly. This controlled deflection makes them particularly valuable in medians or along roadside areas with limited clear zones, where traditional barriers may pose higher risks. Their ability to flex and redirect vehicles also contributes to improved safety outcomes compared to rigid alternatives.

In addition to mitigating crash severity, cable barriers serve an essential preventive function. By keeping vehicles from leaving the roadway or crossing into oncoming lanes, they significantly reduce the risk of cross-median crashes, which are among the deadliest highway collisions. Studies on U.S. interstates with narrow medians have shown a 45% reduction in crossover fatalities following the installation of cable barriers, underscoring their effectiveness as a lifesaving measure for improving roadway safety.

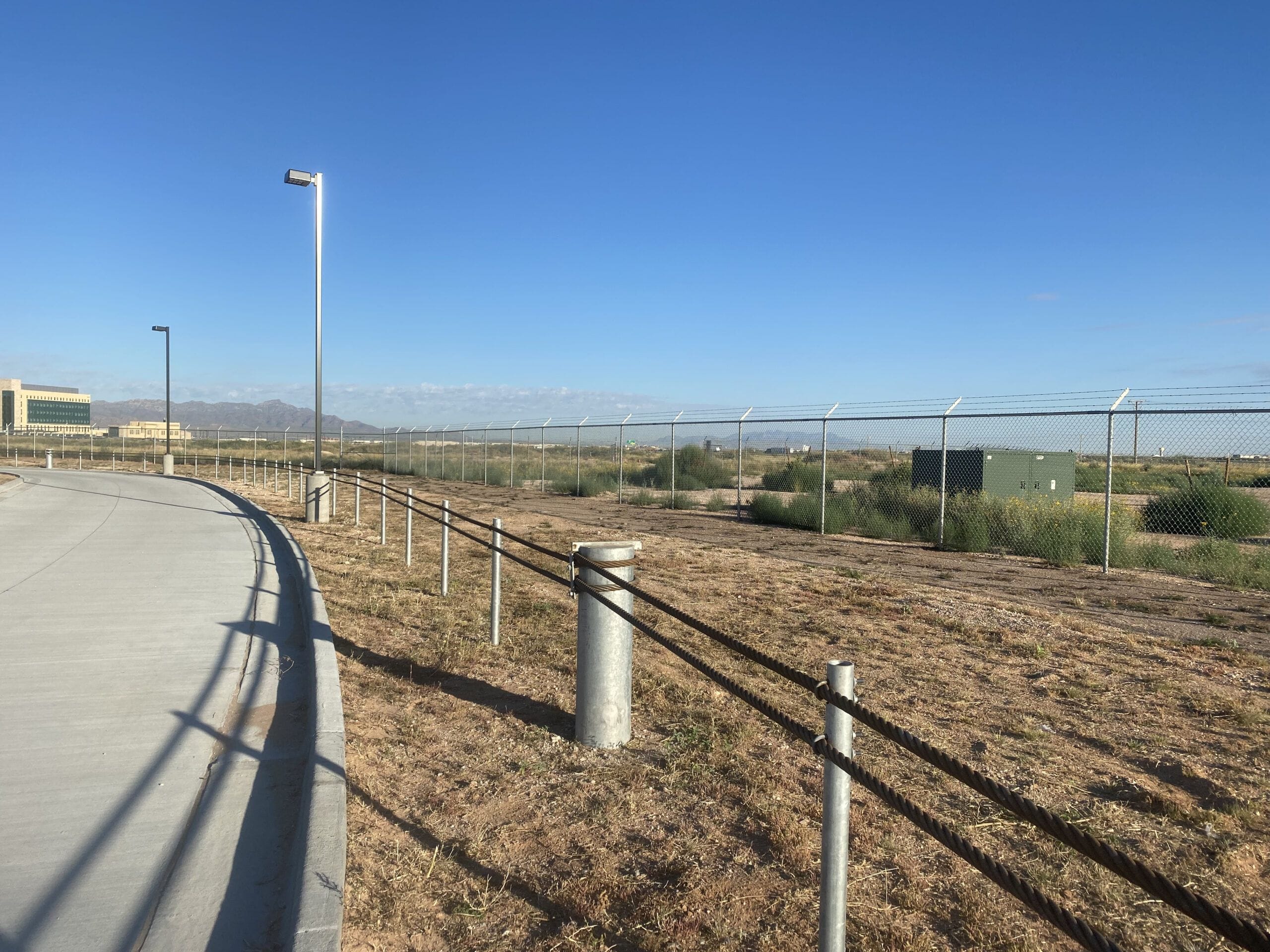

Core Components of Cable Barrier Systems

The effectiveness of cable barriers comes from the coordinated interaction of their main components. Each plays a crucial role in energy absorption, vehicle redirection, and long-term durability:

Posts – Usually made from wood, steel, or composite materials, posts anchor the barrier to the ground. They must be strong enough to remain upright under high-speed impacts while flexible enough to allow cable deflection.

Cables – High-tensile steel cables serve as the primary energy-absorbing element. Typically coated with zinc or other corrosion-resistant materials, these cables can withstand repeated impacts without significant weakening. The number of wires varies depending on the system, usually three or four, to provide coverage for vehicles of different heights.

Anchors – Anchors secure the terminal ends of the barrier, maintaining cable tension and preventing the system from pulling loose during collisions. Anchoring methods vary based on soil type, traffic load, and barrier length.

Tensioning Devices – Devices such as turnbuckles, hydraulic tensioners, or prestressed cable systems maintain consistent cable tension. Correct tension is critical for optimal performance; if too loose, the barrier cannot redirect vehicles effectively, and if too tight, the barrier becomes overly rigid, reducing its energy-absorbing properties.

Together, these elements create a system that balances strength, flexibility, and durability, capable of surviving repeated low- and medium-speed impacts while protecting drivers and passengers.

Design Principles and Layout

Proper layout and design are crucial to maximizing safety and performance. Cable highway barriers require careful engineering to ensure effective vehicle redirection and minimal risk of secondary accidents.

Post Spacing and Cable Height: Posts are typically spaced 6–12 feet apart, depending on the type of traffic, median width, and local standards. Cables are installed at varying heights, generally 21–32 inches above ground for passenger vehicles, with additional higher cables for larger vehicles.

Alignment with Road Geometry: Curves, slopes, and roadside conditions influence barrier placement. For example, on sharp curves, post spacing may be reduced, or additional anchoring may be added to prevent posts from being dislodged during impact.

Barrier Length and Terminals: Terminals and end treatments are essential. Tapered or flared ends reduce the risk of vehicle snagging and allow smooth vehicle deflection onto the road shoulder. Properly designed cable highway barriers minimize vehicle snagging and ensure predictable impact outcomes.

Regulatory Standards: Design must comply with national guidelines, such as the American Association of State Highway and Transportation Officials (AASHTO) Manual for Assessing Safety Hardware (MASH), which specifies performance testing, post spacing, cable heights, and crash-tested deflection standards.

Structural Strength and Performance

Cable barriers are engineered to absorb and dissipate kinetic energy, preventing the sudden stops that could cause serious injuries to vehicle occupants. When a vehicle impacts the system, it first makes contact with the outermost cable, which stretches to absorb a significant portion of the force. That force is then transferred to the posts, which pivot or bend slightly to further dissipate the energy. At the same time, anchored terminal ends hold the entire system in place, ensuring stability and preventing collapse during the impact.

This gradual energy absorption reduces deceleration forces on the vehicle. The barrier’s strength depends on cable diameter, material, tensioning, post type, and anchoring.

Crash Performance: Cable barriers have been tested to redirect vehicles of varying weights and speeds. For example, a cable barrier system can safely redirect a 5,000-pound sedan at 70 mph while limiting lateral deflection to under 12 feet, keeping the vehicle within the median zone and preventing crossover.

Comparison to Other Barriers: Unlike rigid guardrails or concrete barriers, which stop vehicles abruptly, cable barriers allow some controlled movement. This energy-absorbing characteristic reduces the risk of occupant injury and prevents vehicle rollover, a common hazard associated with rigid barriers.

Safety Benefits for Vehicles and Occupants

Cable barriers offer significant safety benefits for both vehicles and their occupants by reducing the severity of crashes and preventing some of the most hazardous roadway incidents. One of their primary advantages is the ability to absorb impact energy. Instead of bringing a vehicle to an abrupt stop, cable barriers gradually decelerate the vehicle, lowering the forces transmitted to occupants and reducing the likelihood of severe injuries.

Another important safety function of cable barriers is vehicle redirection. By guiding vehicles back onto the roadway or keeping them contained within the median, these barriers prevent cross-median accidents, which are among the deadliest types of highway collisions. Their energy-absorbing design also helps reduce the likelihood of rollovers, providing an extra layer of protection for drivers and passengers.

Beyond their protective capabilities, cable barriers also offer durability and cost efficiency. They are designed to withstand repeated impacts, often requiring only minimal repairs after a crash. According to studies conducted by the Federal Highway Administration, cable barriers have been shown to reduce fatal cross-median crashes by up to 90% compared to unprotected medians, making them a critical safety solution in high-speed and narrow median environments.

Maintenance and Inspection Practices

Proper maintenance and inspection practices are essential to keeping cable barriers effective over the long term. While these systems are designed to absorb impacts and redirect vehicles, their performance can decline if components are not routinely checked and maintained. A structured inspection program helps ensure safety, reduces the risk of failure, and minimizes costly repairs.

• Cable Tension Checks: Cable tension must be maintained within specified limits to ensure proper performance. Loose cables can allow vehicles to penetrate too far into the system, while overtightened cables reduce flexibility and increase impact forces. Regular adjustments help the barrier maintain its intended energy absorption and redirection functions.
• Post Inspections: Posts should be checked for damage, rot, or corrosion, as they are critical for transferring impact energy into the ground. Damaged or weakened posts compromise the system’s ability to absorb and redirect collisions effectively. Replacing faulty posts promptly ensures barrier reliability.
• Anchor Integrity Checks: End anchors must remain secure, as they hold the entire cable system in place. Inspections should confirm that anchors are tight, corrosion-free, and properly embedded. A compromised anchor can lead to system failure during a high-speed impact.
• Cable Replacement: Damaged or worn cables need to be replaced without delay to maintain system strength. Frayed or stretched cables reduce the barrier’s ability to absorb and distribute forces safely. Timely replacement extends the service life of the barrier and preserves its protective function.

Consistent inspection and timely maintenance allow cable barriers to perform as intended, even under repeated impacts or harsh environmental conditions. By addressing issues early, transportation agencies can ensure reliable roadside protection while also reducing long-term repair costs.

Black Security Product’s Cable Barrier Expertise

Cable barriers are one of the most effective roadway safety solutions, combining flexibility, tensile strength, and energy absorption to protect motorists in high-risk environments. Unlike rigid systems, cable barriers are engineered to deflect and redirect vehicles, reducing crash severity and preventing deadly crossover accidents.

At Black Security Products (BSP), we go beyond simply providing barrier systems; we deliver complete solutions backed by technical expertise and proven performance. Our cable barrier designs emphasize structural integrity, crash-energy management, and long-term reliability, ensuring they meet the demanding standards of modern highway safety.

Headquartered in Houston, TX, and Kalispell, MT, with additional offices in Washington and Michigan, BSP supports clients across the U.S. and internationally. From planning and design to installation and maintenance, our team ensures every system is optimized for safety and cost efficiency. With a commitment to saving lives and reducing risks, BSP’s cable barrier solutions stand as a trusted safeguard for critical roadway infrastructure. Contact us today to learn how our systems can strengthen your transportation safety strategy.
